- 11
-
3-17

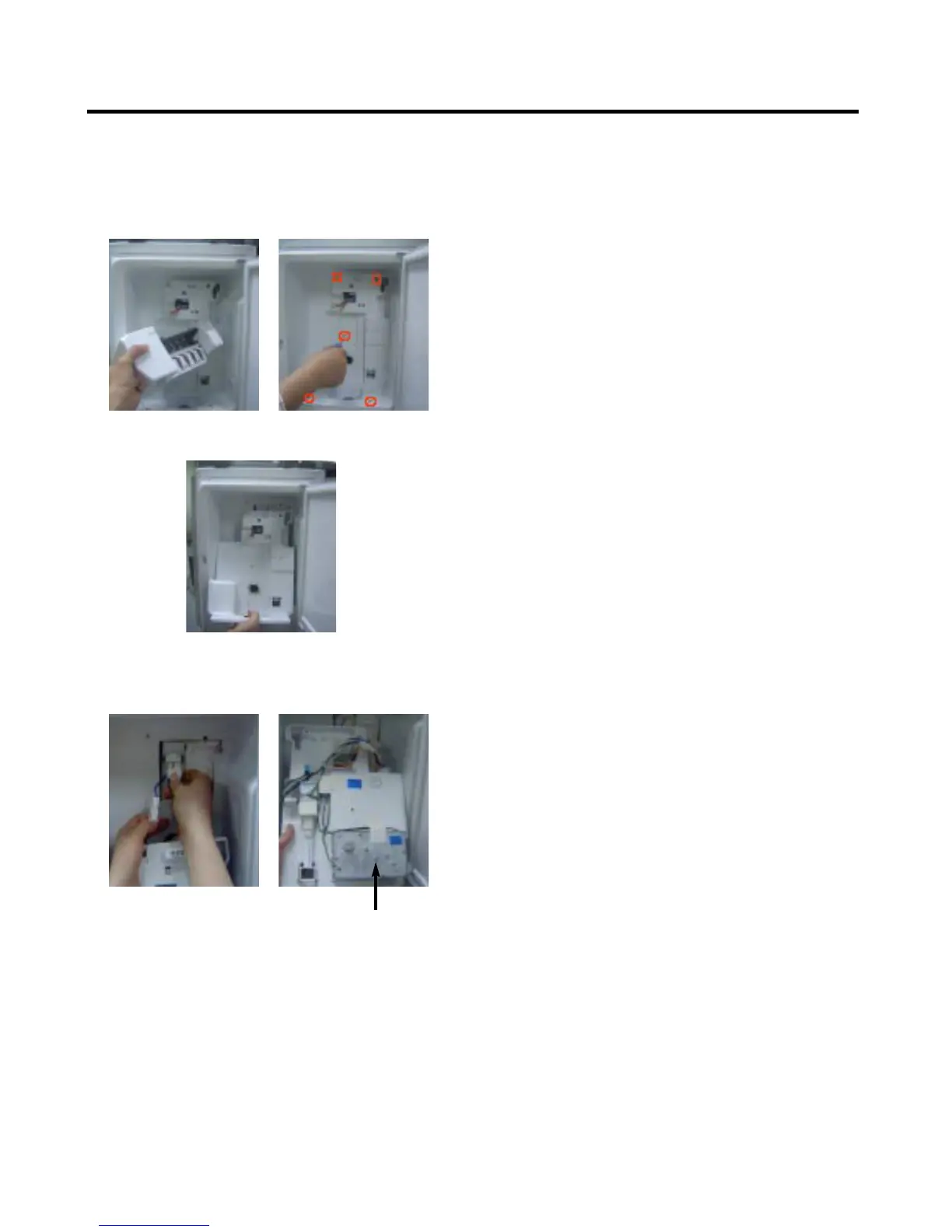

AUGER MOTOR COVER
1)
After removing the icemaker remove the (5) stainless
screws holding the auger motor cover, shown in the
picutres below.
2)
Grip the bottom of motor cover assembly and pull out it.
3)
Disconnect wire harness of motor cover assembly.
There is a auger motor on the back, as shown in the
picture.
Auger Motor
10
12
Table of Contents
Safety Precautions
1
1 Specifications
2
Table of Contents
2
2 Parts Identification
3
Removing and Replacing Refrigerator Doors
4
3 Disassembly
5
Door Installation
5
Removing/Replacing Refrigerator Doors
5
Door
6
To Remove the Dispenser
7
Door Alignment
7
FAN and FAN MOTOR(Evaporator)
7
Ice Fan Scroll Assembly Replacement
8
Defrost Control Assembly
8
Lamp
8
Control Box-Refrigerator
8
Multi Duct
9
Main Pwb, Display Pwb Replacement, Funnel Replacement
9
Sub Pwb for Dispenser, Duct Door Replacement, Ice Corner Door Replacement, Ice Maker Assembly
10
Auger Motor Cover, Auger Motor Replacement
11
Door Ice bin
12
How to Remove and Reinstall the Pullout Drawer
13
4 Adjustment
17
Compressor
17
Ptc-Starter
17
Olp(Overload Protector)
18
To Remove the Cover Ptc
18
5 Circuit Diagram
19
6 Troubleshooting
20
Compressor and Electric Components
20
Other Electrical Components
21
Service Diagnosis Chart
22
Refrigeration Cycle
23
7 Operation Principle and Repair Method of Icemaker
25
8 Description of Function, Circuits & Error Codes
28
9 Exploded View & Replacement Parts List
45
Door Parts
