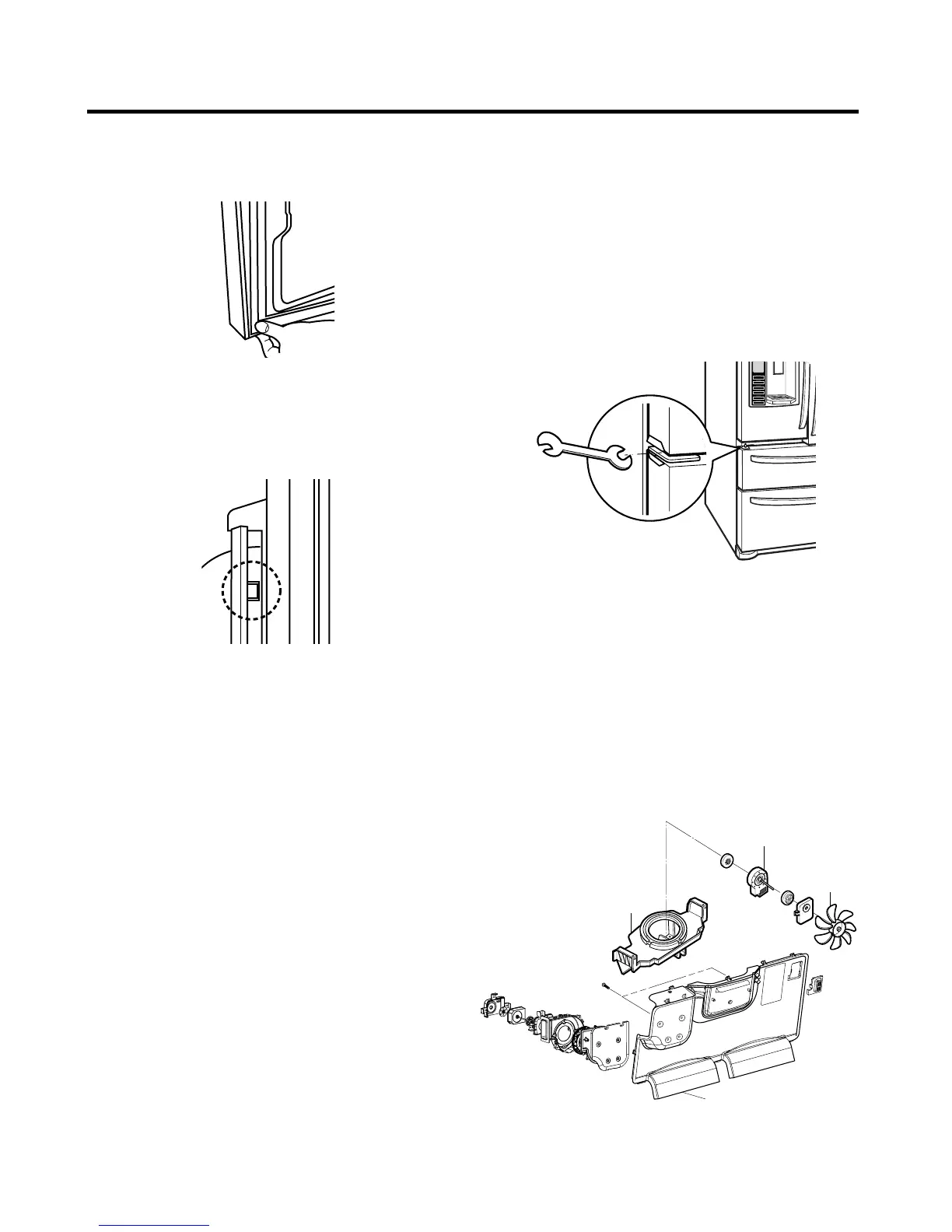

- 7 -
3. Replace door frame cover
Starting at top of cover and working down, snap cover
back into door.
2) Press gasket into channels on the three remaining sides
of door.
Figure 6
Figure 8
Figure 9
Figure 7
3-3 DOOR ALIGNMENT
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. Remove the Base Grillie.
2. Turn the leveling legs (CCW) to raise or (CW) to lower
the height of the front of the refrigerator by using flat
blade screw driver or 11/32" wrench.
3. Use the wrench (Included with the User Manual) to
adjust the bolt in the door hinge to adjust the height.
(CCW to raise or CW to lower the height.)
3-4 FAN AND FAN MOTOR(EVAPORATOR)
1. Remove the freezer shelf. (If your refrigerator has an
icemaker, remove the icemaker first)
2. Remove the plastic guide for slides on left side by
unscrewing phillips head screws.
3. Remove the grille by removing one screw and pulling the
grille forward.
4. Remove the Fan Motor assembly by loosening 2 screws
and disassembling the shroud.
5. Pull out the fan and separate the Fan Motor and Bracket.
BRACKET
MOTOR
GRILLE
FAN
FAN MOTOR
CAUTION
DO NOT ATTEMPT TO REMOVE THE MULLION :
REFRIGERANT LINES!
