2.1.2 CONTROL BOX

1. Remove the front grille. (Refer to section 2.1.1)

2. Remove the two screws which fasten the control

box. (See Figure 2)

3. Pull the control box from the Air guide.

4. Remove the control box cover. (See Figure 3)

5. Disconnect wire housings on the control box.

6. Pull the control box assembly out from the unit.

(See Figure 4)

7. Re-install the components by referring to the

removal procedure.

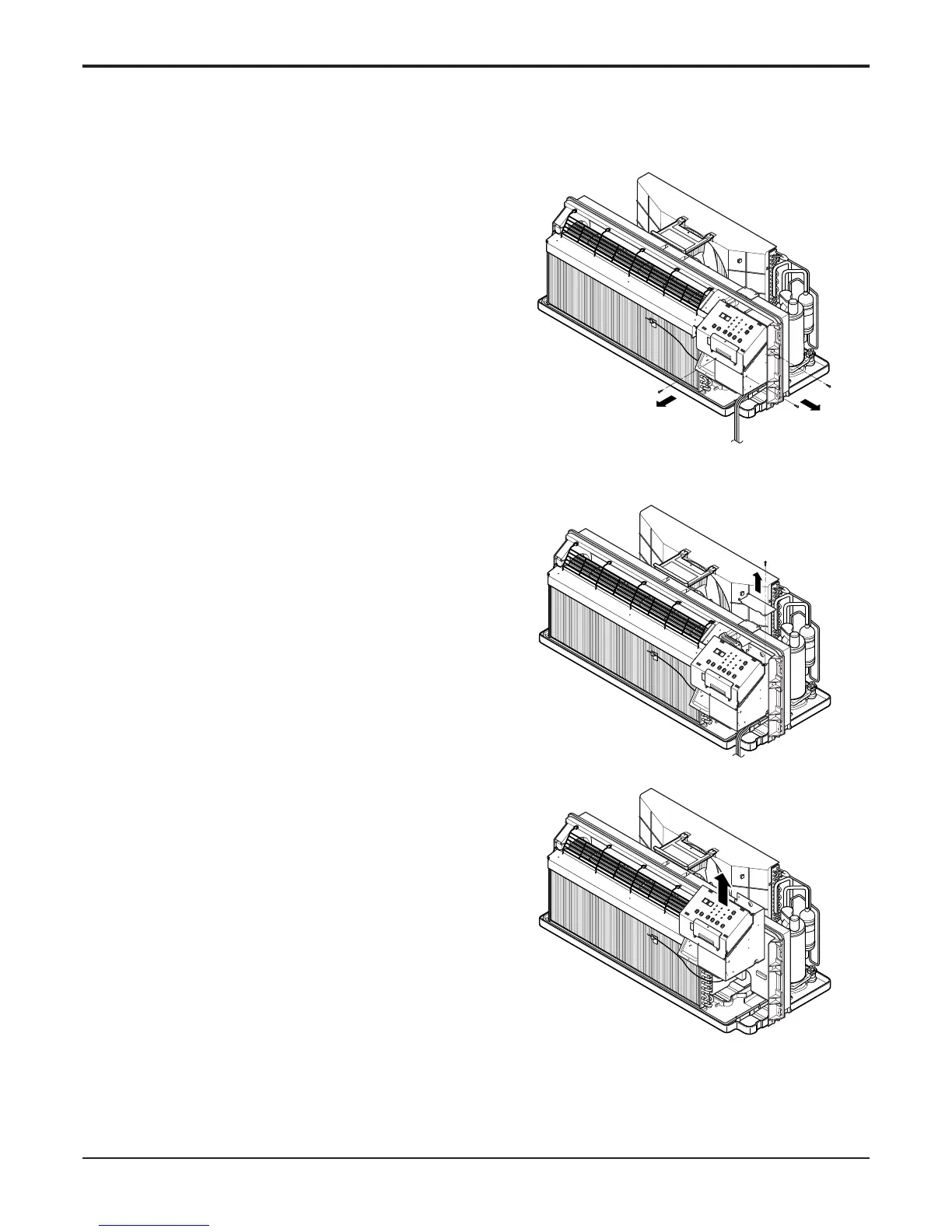

Figure 2
