- 35 -
Copyright ©2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

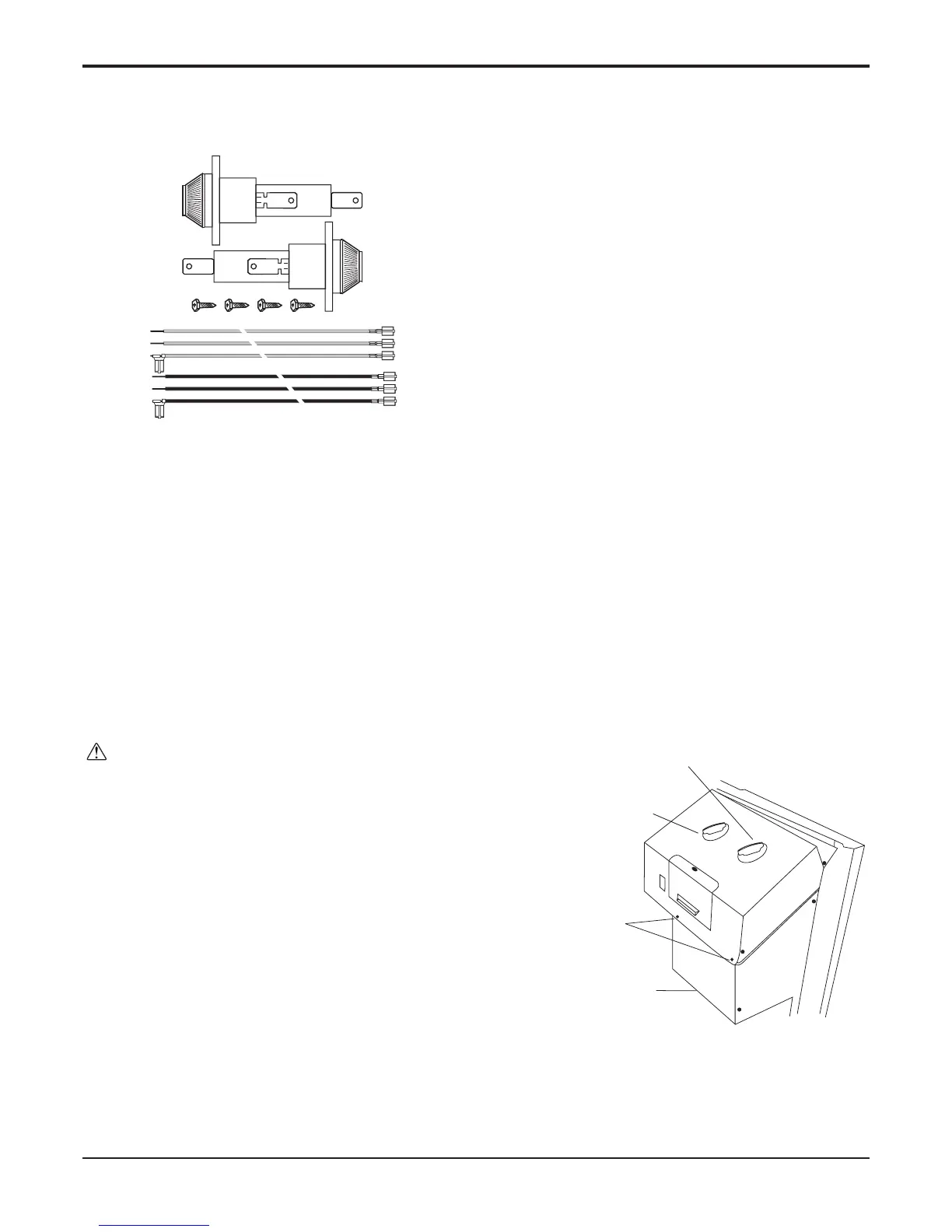

Fuse Holder Kit
Model: AYFH1101
Description
This optional fuse holder kit can be installed directly in the
chassis or in the optional subbase.
Fuse holder kits are available in 208/ 230 volt ratings. The
installer should supply time delay fuses at 15, 20, 25, or 30
AMP in accordance with the Maximum Overcurrent Protection
as listed on the unit nameplate. Fuses may be purchased
from the parts department.
Note:
Theinstallationandservicingofthisequipmentmustbe
performedbyqualified,experiencedtechniciansonly.
WARNING
Hazardous Voltage!
Disconnect all electric power, including remote disconnects
before servicing. Follow proper lockout/ tagout procedures to
ensure the power can not be inadvertently energized. Failure
to disconnect power before servicing could result in death or
serious injury.
Important Note:
TheunitOFFswitchdoesnotdisconnectallelectricalpower
tothisunit.
CAUTION
Use Copper Conductors Only!
Unit terminals are not designed to accept other types of
c
onductors. Failure to use copper conductors may result in
equipment damage.
Important Note:
Allwiringmustcomplywithapplicablelocalandnational
codes.
Typeandlocationoffuseddisconnectswitch(es)must
complywithallapplicablecodes.Failuretofollowthese
codescouldresultinoverheatingandequipmentfailure.
Receiving
Upon receipt of the product, inspect the shipping carton for
signs of visible damage. Report any damage or shortage to
the carrier and note it on the delivery receipt. Unit must be
stored in its original shipping carton in a dry, secure place
prior to its installation and use.
Installation
The installation and servicing of the equipment referred to in
this booklet should be performed by qualified, experienced
technicians.
Fuse Holder Kit Installation
(Without Subbase)
1. Remove front by rotating bottom outward and then lifting up
and out from chassis.
Mode Switch
Thermostat
Remove two screws
to gain access inside
Control Panel
Fuse Holder
Knockouts
under panel
Mode Switch
Thermostat
Remove two screws
to gain access inside
Control Panel
Fuse Holder
Knockouts
under panel
Figure 48 - Control Panel
