18 INSTALLATION
NOTE

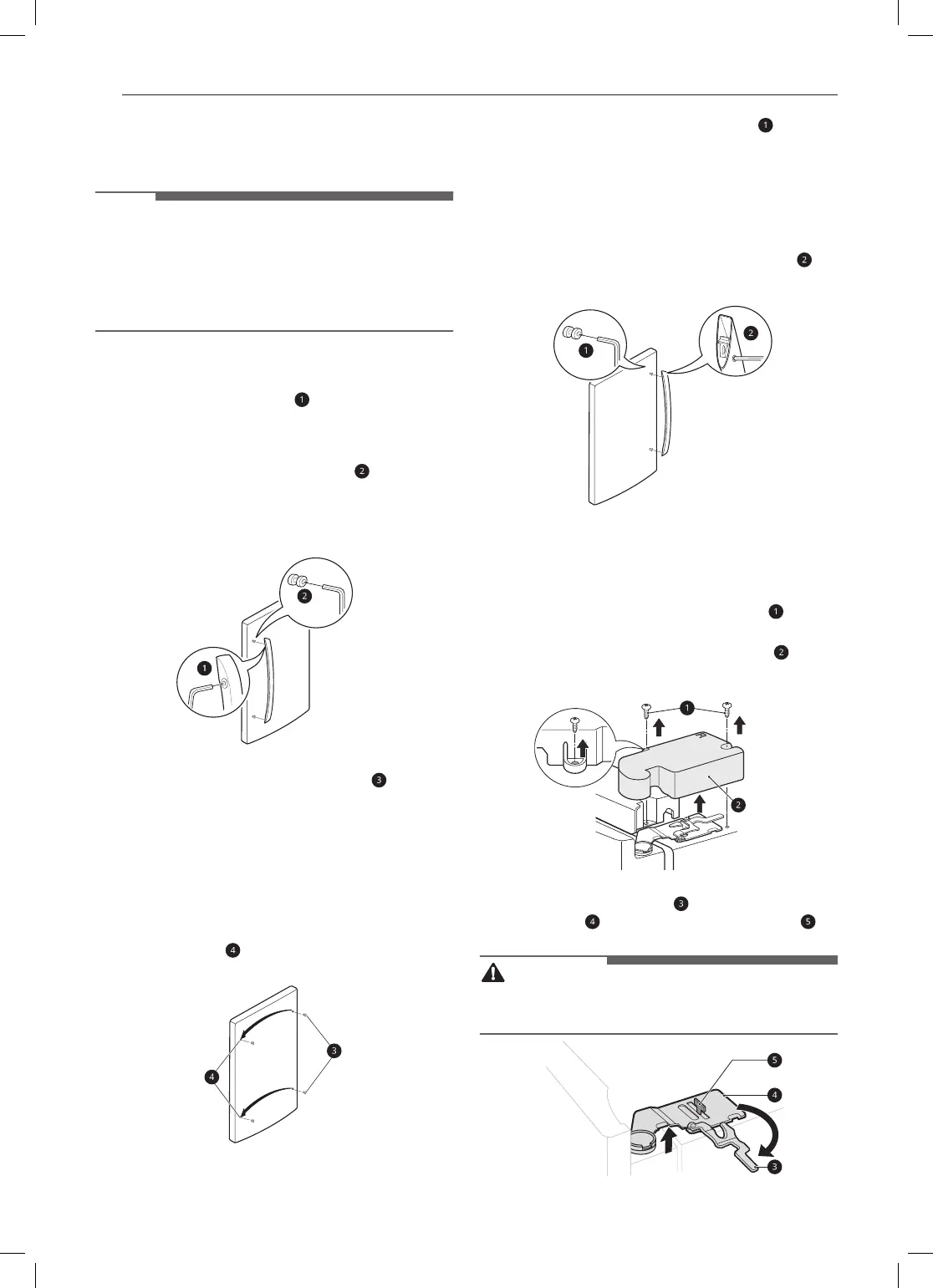

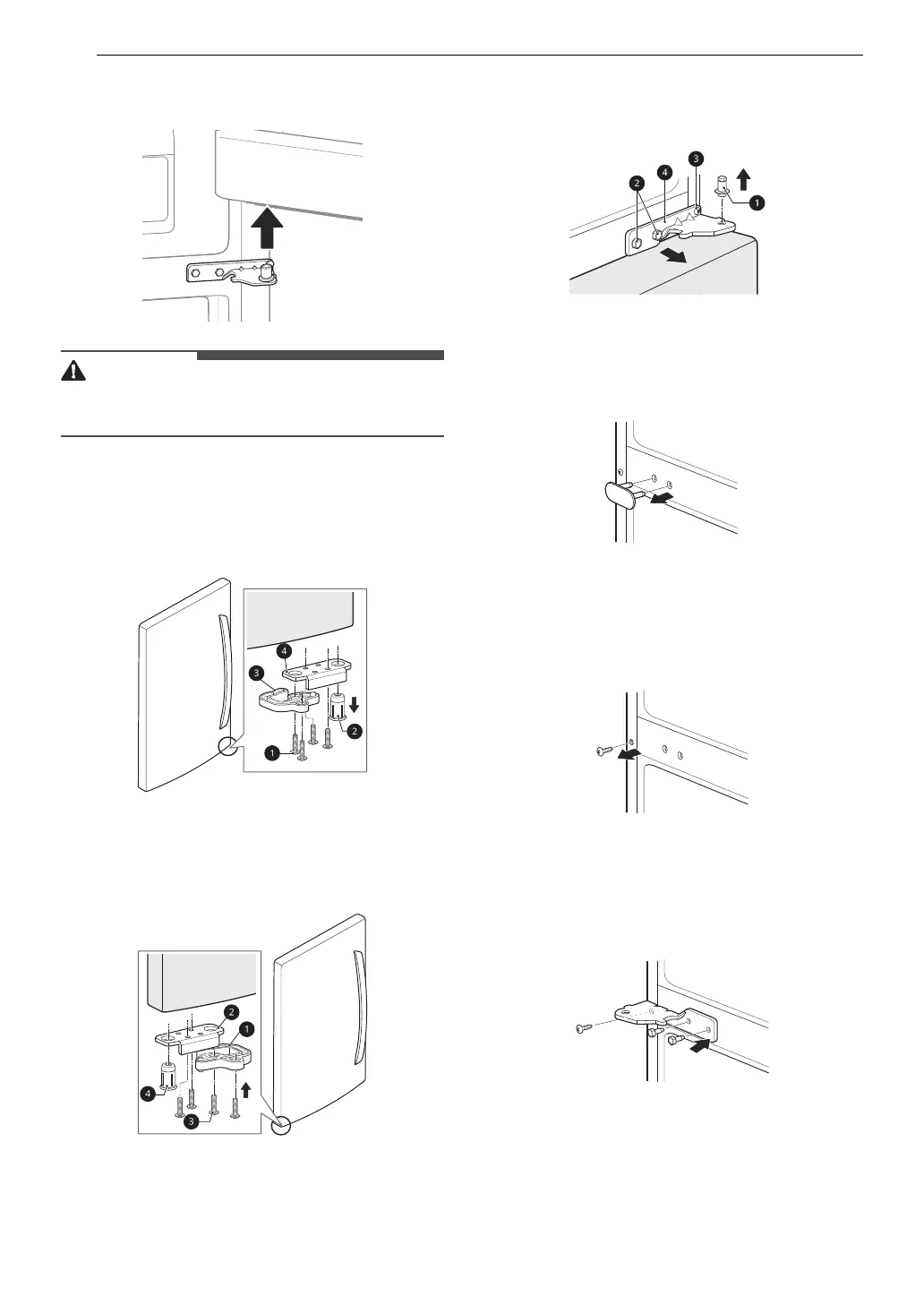

Reversing Door Opening
Direction
• To assist in the installation of the handle on the
right side, place a piece of masking tape near the
top of the handle before removing it.
• The appearance of the handle may vary from
what is shown in the illustrations.
Loosen the set screws with a 3/32 in (2.5
mm) Allen wrench and remove the handle.
Remove the top hinge cover screws .
Lift the hook (not visible), located at the
bottom of the front side of the cover ,
with a at-head screwdriver.
Assemble the mounting fasteners at
both ends of the handle using a 1/4 in.
(6.35 mm) Allen wrench.
Place the handle on the door by tting
the handle footprints over the mounting
fasteners and tightening the set screws
with a 3/32 in (2.5 mm) Allen wrench.
Carefully loosen the plug buttons
with your ngers. The buttons can be
unscrewed with the ngers by rotating
them counter-clockwise and continuing
until they loosen and fall out The buttons
were installed without pressure, and for
this reason, they can be unscrewed using
your index nger, thumb or both. Install the
plug buttons on the left side.
Loosen the mounting fasteners that
connect to the refrigerator door and handle
using a 1/4 in. (6.35 mm) Allen wrench, and
remove the mounting fasteners.
1
1
4
5
3
2
Removing the Refrigerator Handles
Reversing the Doors
Rotate the hinge lever clockwise. Lift the
top hinge free of the hinge lever latch .
2
CAUTION
• When lifting the hinge, be careful that the door
does not fall forward.
To Next Page
