17INSTALLATION
ENGLISH
Reversing Handles/Doors
Door reversal must be done by an authorized installer
or service person. If it is not, the doors will not be
covered by the warranty.

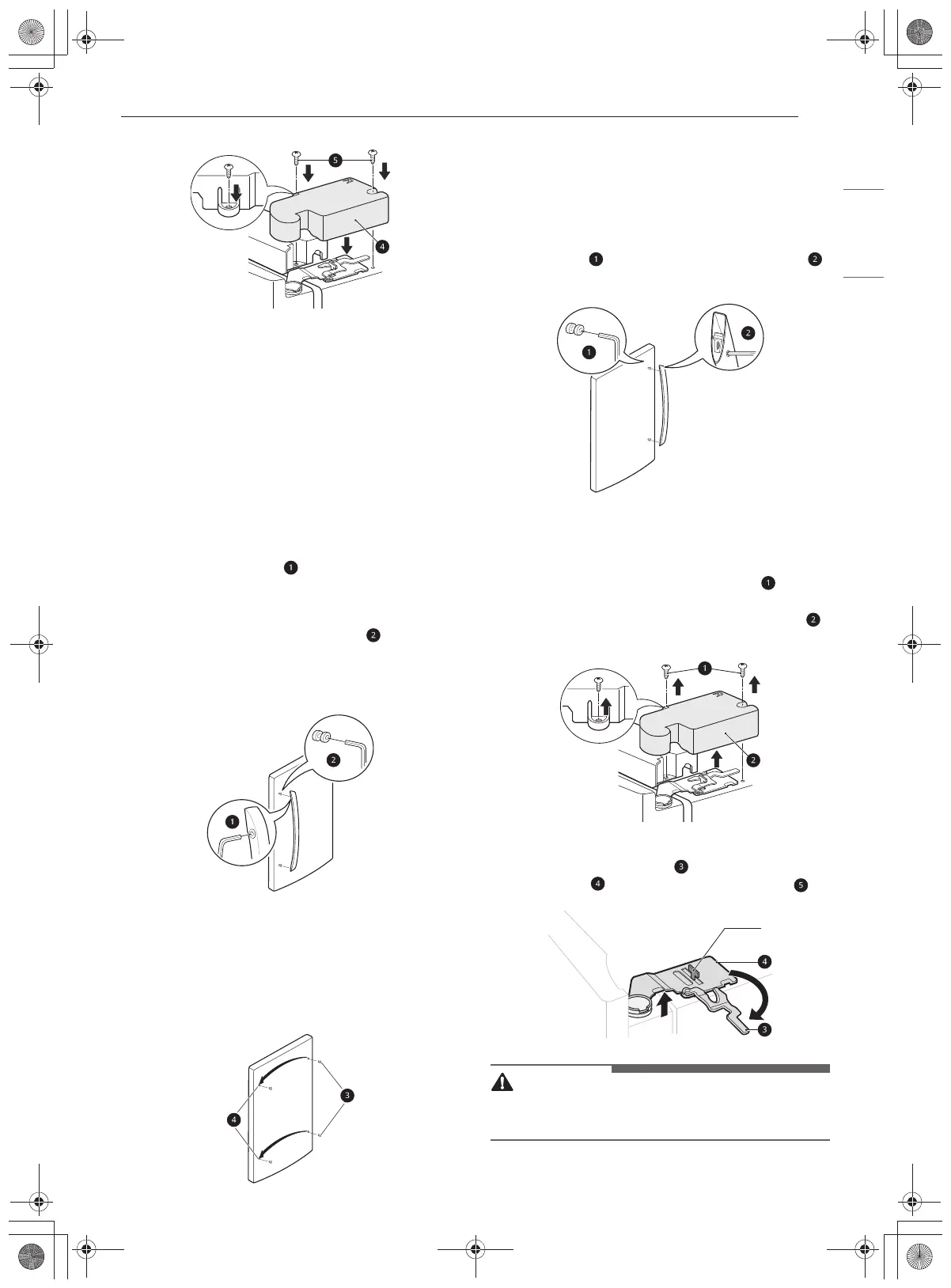

Reversing the Refrigerator Handle
1 Loosen the set screws with a 3/32 in. (2.5
mm) Allen wrench, and remove the handle.
2 Loosen the mounting fasteners that
connect to the refrigerator door and handle
using a 1/4 in. (6.35 mm) Allen wrench, and
remove the mounting fasteners.
3 Carefully rotate the deco rative screw covers
c counterclockwise with your ngers until
they loosen and fall out. Once they're
removed, install the covers in the screw holes
d on the opposite side.
4 Attach the mounting fasteners a to the
opposite side of the door using a 1/4 in. (6.35
mm) Allen wrench.
5 Place the handle on the door by fitting the
handle footprints over the mountin
g
fasteners and tightening the set screws
with a 3/32 in. (2.5 mm) Allen wrench.

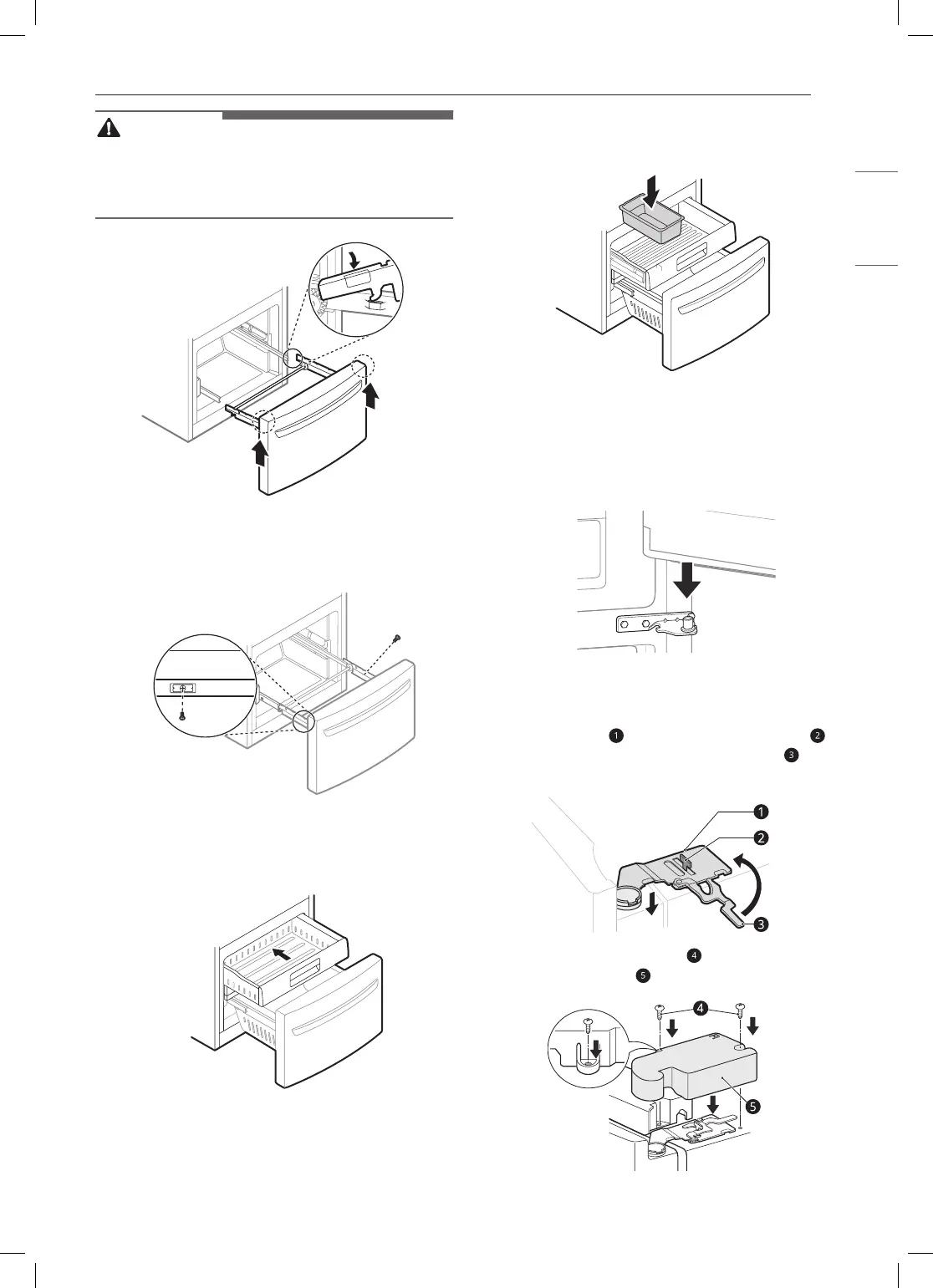

Reversing Doors
1 Remove the top hinge cover screws . Use a
flat-head screwdriver to release the tabs
inside the front of the cover at the bottom .
Remove the cover.
2 Rotate the hinge lever clockwise. Lift the
top hinge free of the hinge lever latch .
CAUTION
• When lifting the hinge, be careful that the door
does not fall forward.
us_main.book.book Page 17 Mo nday, March 2, 2020 3:48 PM
• Tools Needed
- 3/32 in. Allen wrench
- 1/8 in. Allen wrench
- 1/4 in. Allen wrench
