8
ELECTRICAL CONNECTIONS
3-WIRE CONNECTION WITH
A POWER SUPPLY CORD
• The middle (neutral or ground) wire of a 3
wire power cord or a 3 wire conduit has to
be connected to the middle post of the main
terminal block. The remaining two wires of the
power cord or conduit have to be connected
to the outside posts of the main terminal
connection block.
- Failure to do so can result in electrical shock,
severe personal injury or death.
WARNING
Install the power cord as follows:
For power cord installations, Hook the strain relief over
the power cord hole (1
3
/
8
”) located below the rear of
lower oven. Insert the power cord through the strain
relief and tighten it. (Refer to Figure 7.)
DO NOT install the power cord without a strain relief.
1. Remove the lower 3 screws from the terminal block
and retain them. (Refer to Figure 8.)
2. Insert the 3 screws through each power cord terminal
ring and into the lower terminals of the terminal block.
Make sure that the center wire (white/neutral) is
connected to the center lower position of the terminal
block.
3. T
ighten 3 screws securely into the terminal block. Do
not remove the ground strap connections.
4. Refer to page 11.
Cord strain relief
Power cord
Conduit
connection
plate
Separate Strain Relief
before installation
Assemble the strain relief
to the 1
3
/
8
” opening in
Conduit connection plate

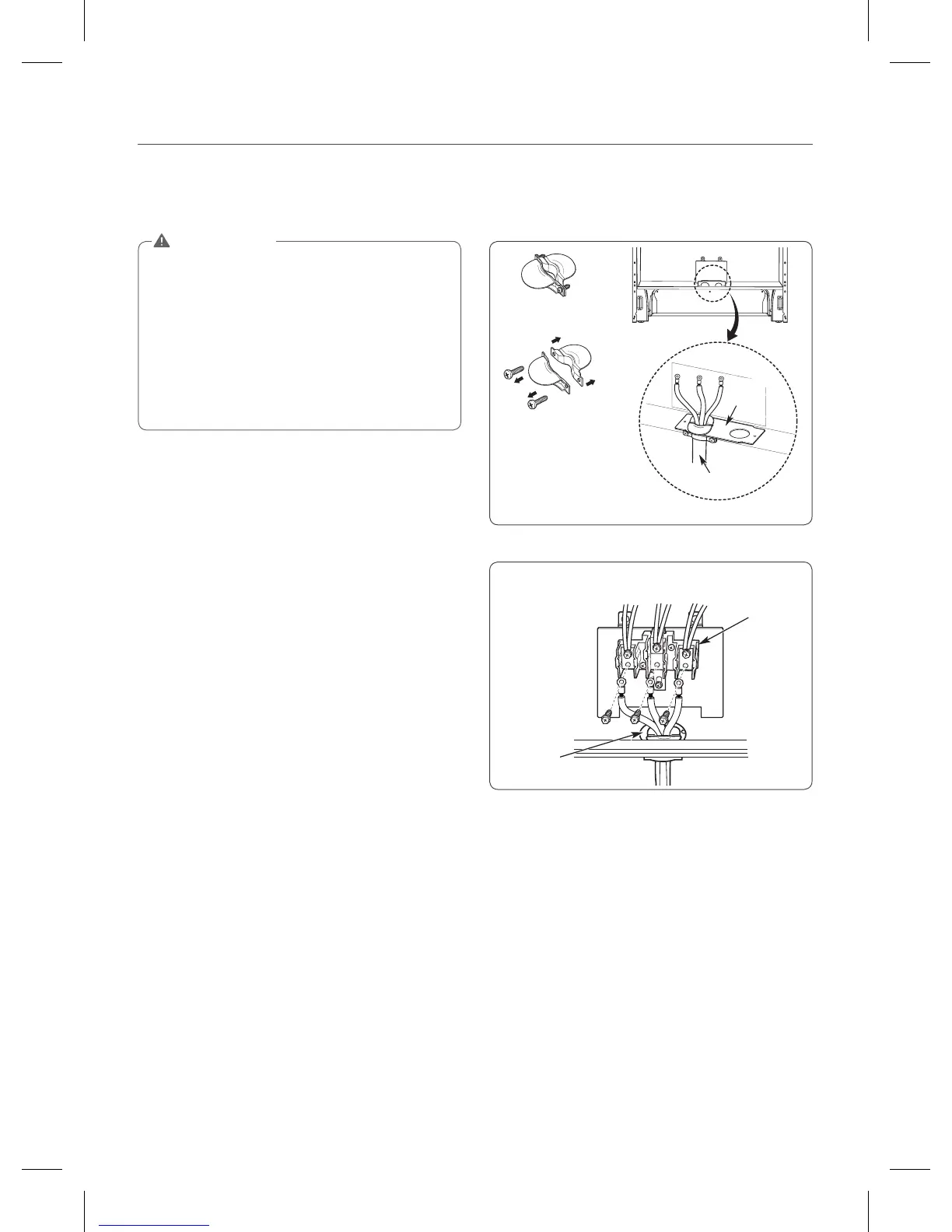

FIgURE 7
3-wire connection
Terminal
block
Conduit
connection plate
Black White Red
FIgURE 8
To Next Page
