Pff'/
rr_Power FaiLure) MESSAGE
'l_e PF message will appear whenever there has been a
power interruption to the appliance. To clear the PF message
press ON/OFF control pad to reset and be sure to reset the
clock with the correct time of day.
ILL-/
n:,_ Hot Surface) MESSAGE
LIGHT WILL:
• Come on when the unit is hot to touch after it is turned off.
• Come on during Self Cleaning Cycle.
• Stay on even after the unit is turned off.
• Glow until the unit has cooled down to approximately 150°F.

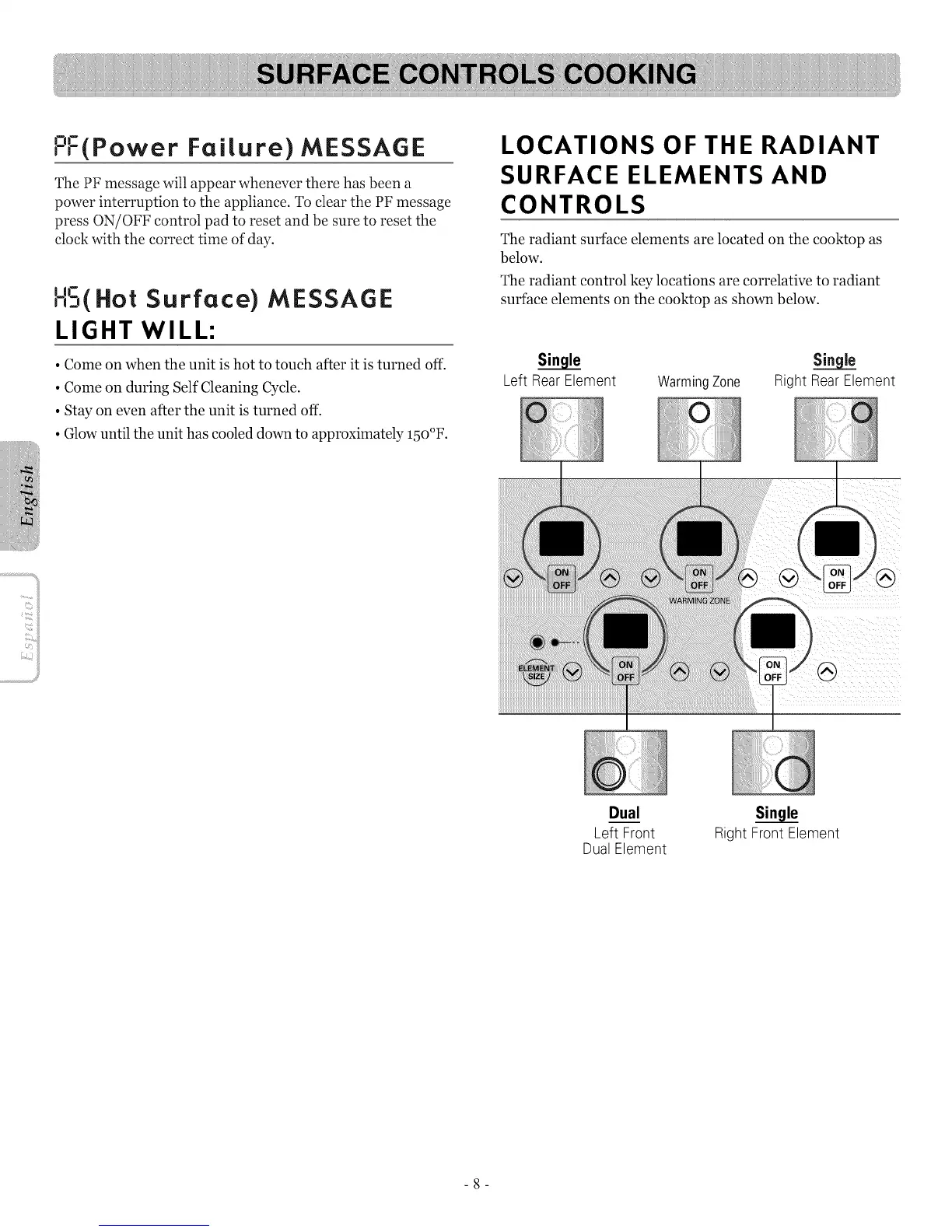

LOCATIONS OF THE RADIANT
SURFACE ELEMENTS AND
CONTROLS
The radiant surface elements are located on the cooktop as
below.
The radiant control key locations are correlative to radiant
surface elements on the cooktop as shown below.
Left Rear Element Warmin Zone Right RearElement
@
Dual
Left Front
Dual Element
Single
Right Front Element
-8-
