3-5

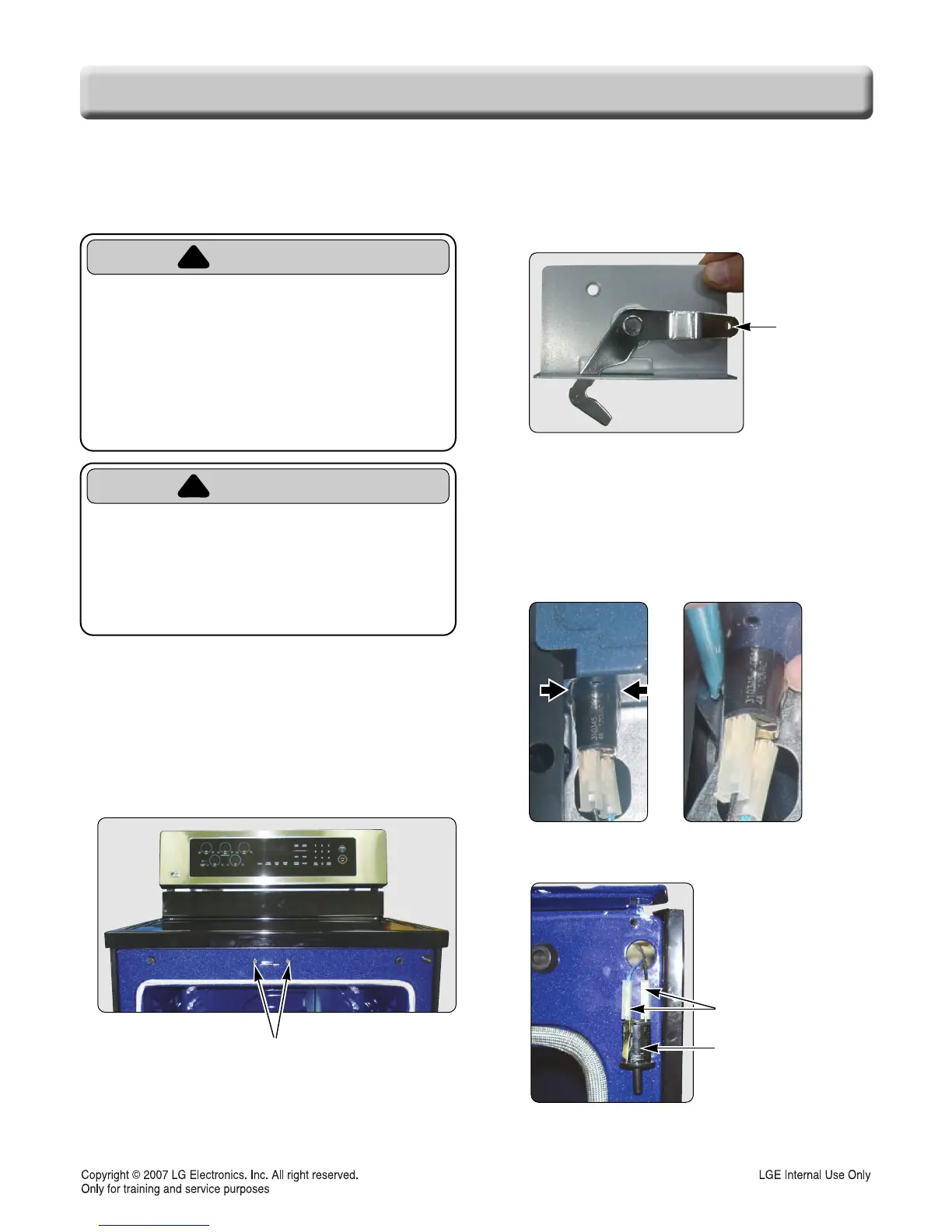

COMPONENT ACCESS
REMOVING THE DOOR LA
REMOVING THE DOOR LA
TCH & DOOR SWITCH
TCH & DOOR SWITCH
1. Turn off the electrical supply going to the range.
2. Open the oven door.
3. Raise the cooktop (see page 3-4 for the
procedure).
4. To remove the door latch:
a) Remove the two screws from the door latch
and remove the latch.
b) Remove the door latch from the burner box
and unhook the actuating rod.
5. To remove the door switch:
a) If not already done, raise the cooktop
(see page 3-4 for the procedure).
b) Remove the door switch from the range.
To do this, squeeze tabs and use a ratchet
extension or a small socket, and tap it out of
the hole with a hammer.
c) Disconnect the wires from the terminals.
2 Screws
Unhook
Actuating
Rod
Wires
Door
Switch
WARNING
• DISCONNET power supply cord
from the outlet before servicing.
• Replace all panels and parts before
operating.
• RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
• Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
To Next Page
