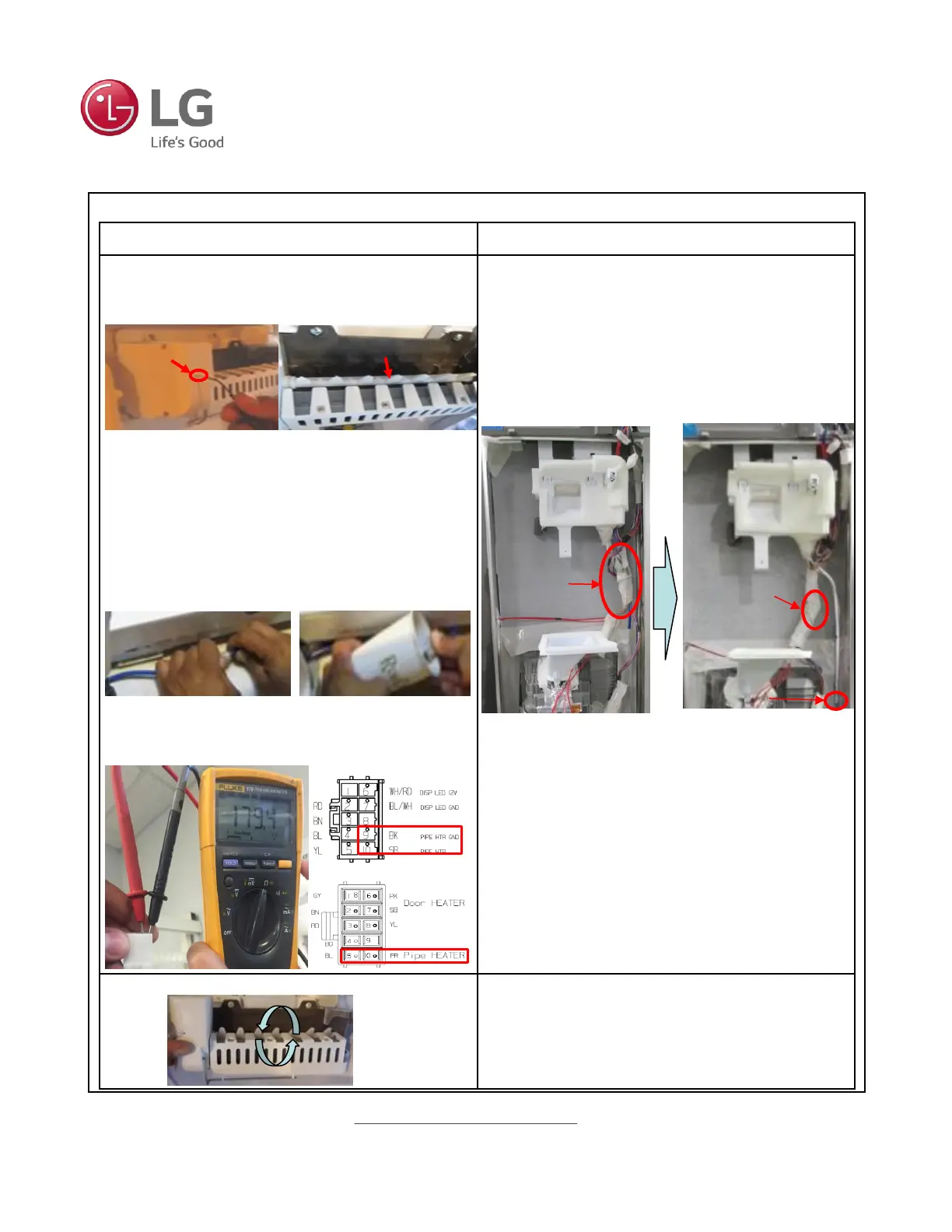

2. Repair Instruction
How to check for defect How to repair
5.- Press Test Button, if no water is dispensed,
insure water is turned on to unit and then
proceed to next step.
A & B –If there is no water to the Ice Maker or
coming out of the blue hose, the Door has to
be replaced.
A)Auto test Button.
B)No water
Normal Harness
C) Make sure the Ice Maker will complete a full
cycle. (+/- 1 minute)
C) If not, change ice maker for new one.
Check Freezer door assembly
A)Water supply:
-Disconnect hose under door F (Blue one) and
perform auto test again.
Note:
Use a glass to avoid spilling water.
If water comes out of blue hose continue to B.
If no water, see step 7.( still perform step 6 )
B) Check resistance of the fill tube heater from
the harness that leaves the door.
180 Ω±7%).
Production after (604MR*****)
Heater and hose
assembly together.
AS IS
Heater
And hose
together
1-Separate heater and
hose assembly.
2- Increase Al Size.
Heater
Hose
TO BE
Application date: March 02
nd
.2017
Internal view of door
