Service Bulletin
Product :
Bulletin # :
Release Date :
• Subject : For Leaking or “AE” Error
• Models with ECN and Serial Number Range in alphabetical or numerical order
Country Model (ECN) Serial Number Range
LGEAI / LGECI LDF5545 Between “606XX” and “612XX”
• The information is available through “https://gsfsplus-america.lge.com” with a valid ID.
• The information is intended for experienced technicians, not for customers.
• The information is subject to change or update without notice.
Dishwasher
CDZ201700006
May/08/2017
• Extended Warranty
This service is covered by an extended warranty Yes No
- If Yes, Parts for ( ) years and Labor for ( ) years by LG.
- If No, Parts and labor are charged to the customer if outside warranty period.
• The warranty period, including any extended warranty above, starts from the original date of purchase.
Applicable only with symptoms below: Applicable with every repair:



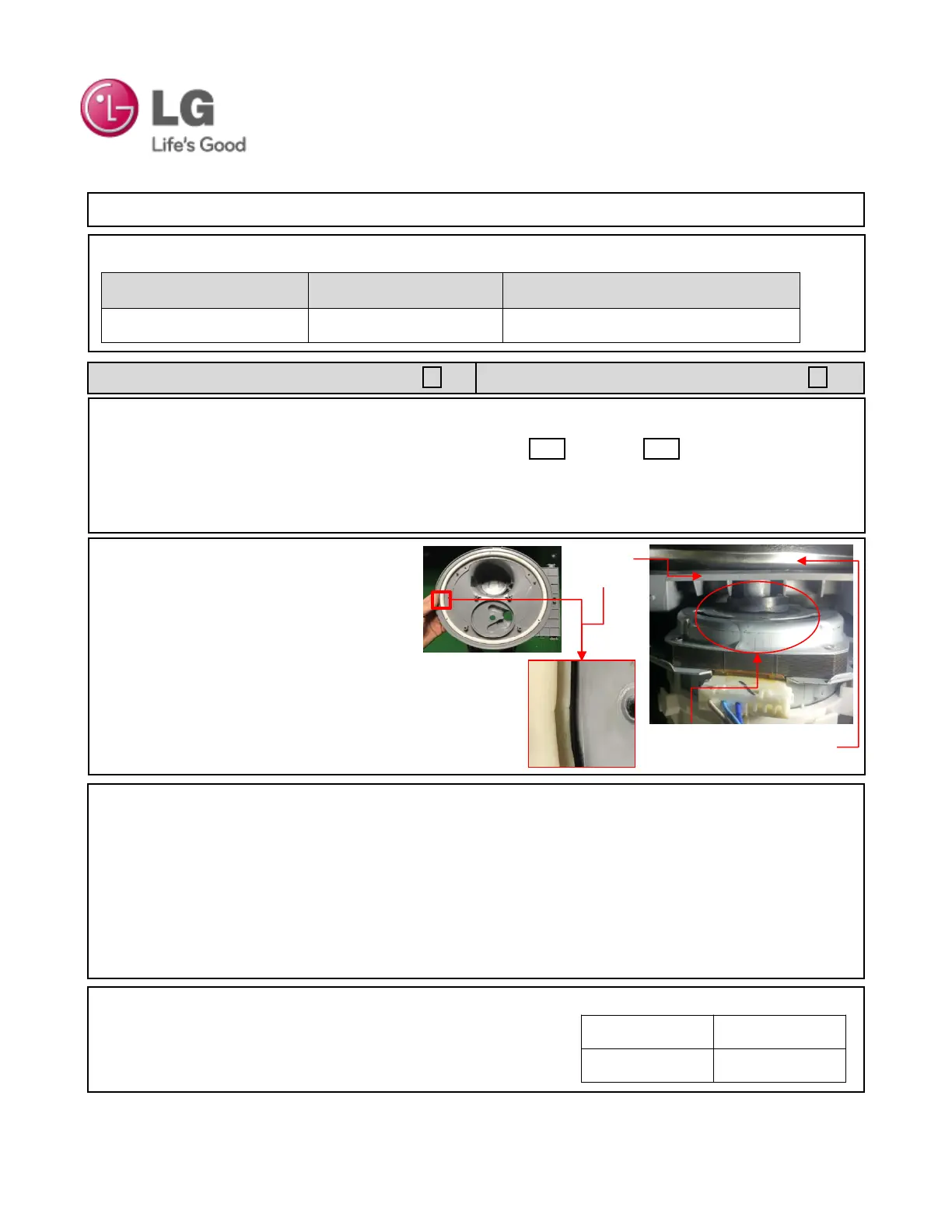

1. Symptoms and Causes
a) Symptoms : Leak or “AE” Error
b) Causes
Water leak between ‘Tub Lower’
and ‘Sump Gasket’ due to gasket weld line.
2. Repair Instruction
a) Replace below parts correctly
Replace Sump Assembly, AGM75469201 and
Motor (Pump casing), ABT72989202
b) Check that the unit works and functions without leaking.
3. Part Interchangeable
(No scrap on current parts)
Current Product
New Product
Current Part New Part
O O
O O
Sump
Gasket
Tub
Lower
Water
leak
55
