PREPARE TO INSTALL THE RANGE
SAVE FOR THE USE OF THE LOCAL ELECTRICAL
INSPECTOR.
NOTE
To install range refer to the following Figure 1.

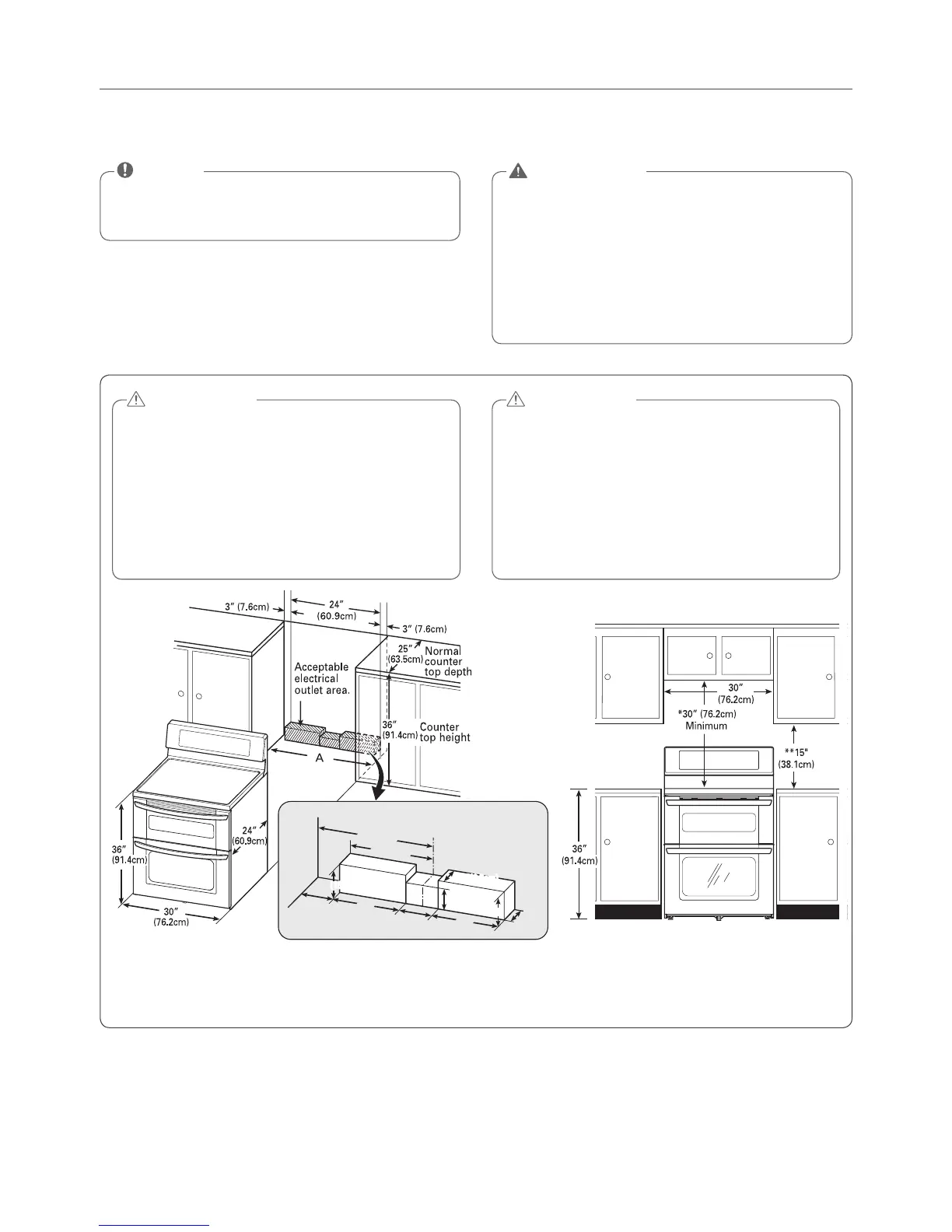

INSTALLATION DRAWINGS (LDE Series only)
- Discoloration, delamination or melting may
occur.
- This range has been designed to comply
with the maximum allowable wood cabinet
temperatures of
CAUTION
- The risk of burns or re by reaching over the
heated surface elements can be reduced.
CAUTION
2.5”
(6.3cm)
6”
(15.2cm)
9”
(23cm)
9”
(23cm)
11”(28cm)
15”(38cm)
4”
(10cm)
4”
(10cm)
5”
(13cm)
Wall
Center
Cabinet
Cabinet
opening
2.5”(6.3cm)2.5”(6.3cm)
6”
(15.2cm)
6”
(15.2cm)
* 30”(76.2 cm) minimum clearance between the top of the cooking surface and the bottom of an unprotected wood
or metal cabinet; or 24”(60.9 cm) minimum when bottom of wood or metal cabinet is protected by not less than
1
/4”(6.4 cm) flame retardant millboard covered with not less than no. 28 MSG sheet steel, 0.015”(0.381 mm) stainless
steel, 0.024”(0.610 mm) aluminum or 0.020”(0.508 mm) copper.
** 15”(38.1 cm) minimum between countertop and adjacent cabinet bottom.
A = 30”(76.2 cm) For U.S.A
= 30”(76.2 cm) ~ 31”(78.7 cm) For CANADA
- Failure to do so can result in back or other injury.
- Failure to do so can result in serious damage to
the door of the range.
WARNING
