COMPONENT ACCESS

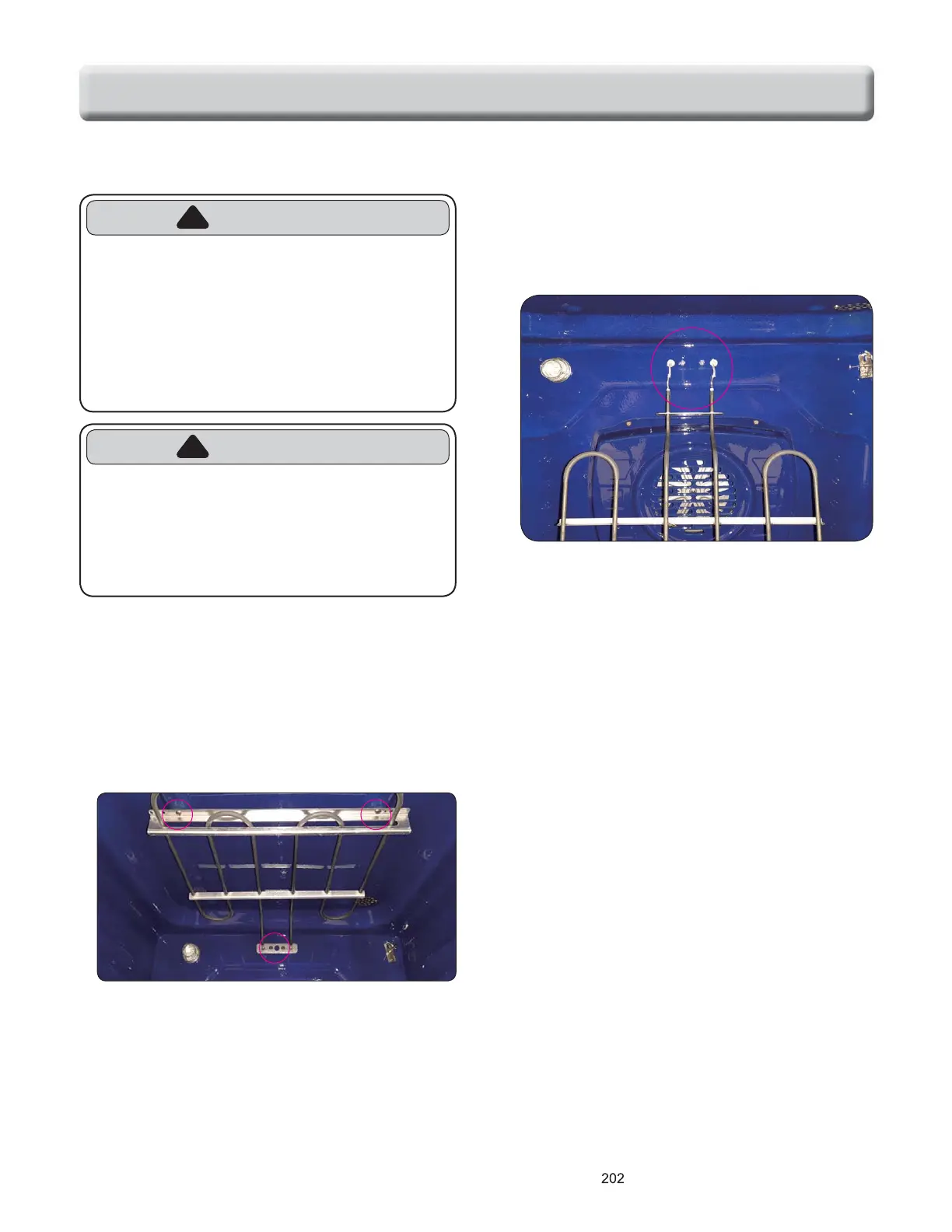

REMOVING THE BROIL ELEMENT
1. Turn o the electrical supply going to the range.
2. Open the oven door and remove the racks from
inside the oven.
3. To remove the outer broil element:
a) Remove the 4 screws from the front and rear
brackets.
b) Pull the element forward so that you can
access the terminals and disconnect the wires.
2 front bracket screws
3 terminals(Broil heater/thermistor)
WARNING
t DISCONNECT power supply cord
from the outlet before servicing.
t Replace all panels and parts before
operating.
t RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
!
CAUTION
t Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
!
