8-1
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes

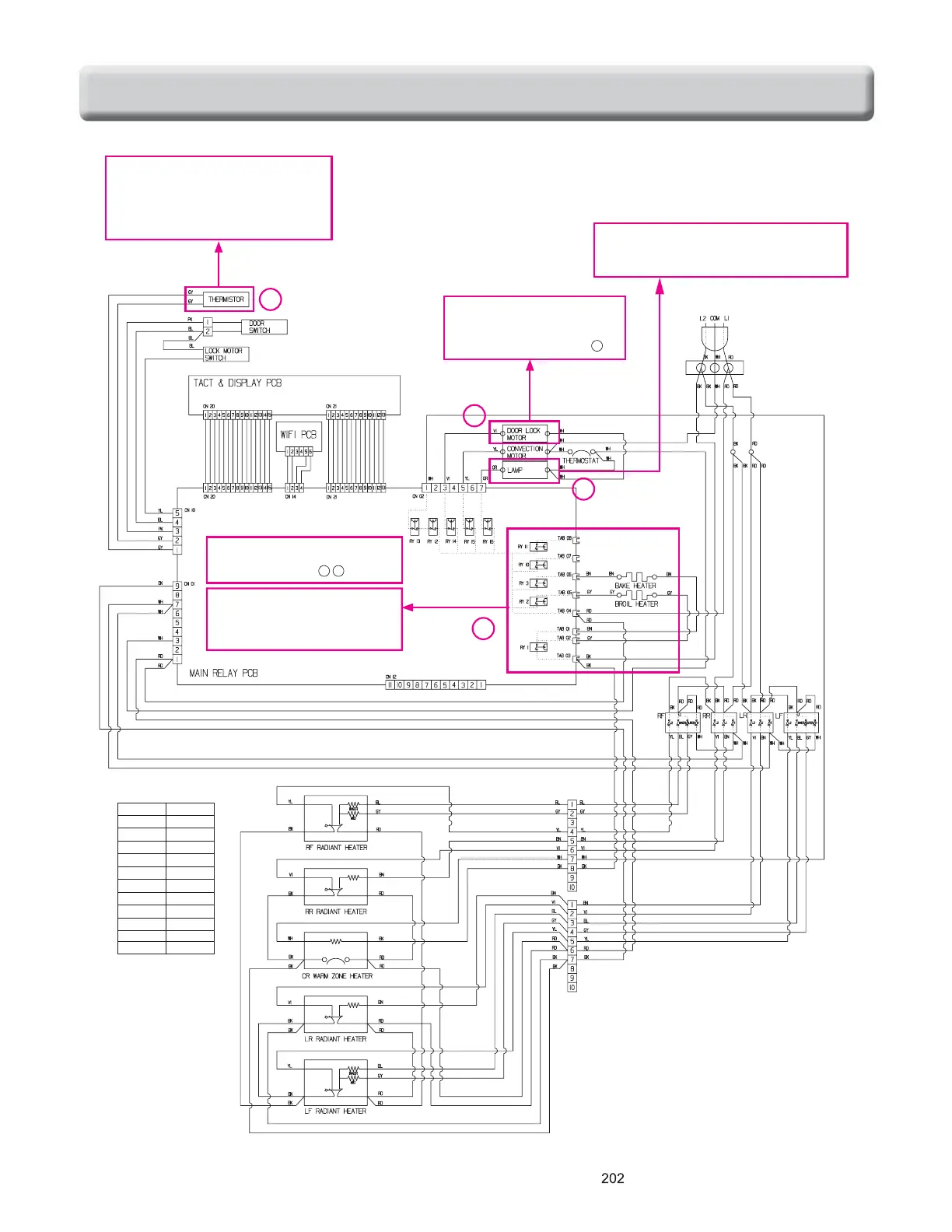

BASIC CHECK SUMMARY
WIRE COLORS
SYMBO L C OLOR
WH WHITE
BK BLAC K
RD RE D
YL YELLO W
PK PINK
BL BLUE
BN BROW N
GN GREEN
GY G RAY
OR ORANGE
VI VIOLET
Symptom : Oven lamp not operating
-. Check the Lamp coil’ s resistance
(Normal: approximately 20~40 )
Symptom :
Door lock fail (F-10)
-. Check : relative part( )
Symptom : Sensor error or
no heating (F1,F2,F9 )
-. Check : Sensor resistance
( approximately 1.06 k at 65F
~ 1.12 k at 65F
2
1
1
3
4
Symptom : Oven hot(F6)
-. Check: : All heater relays are
open/short
Symptom : no heating(F9)
-. Check: related( )
2 4
1
To Next Page
