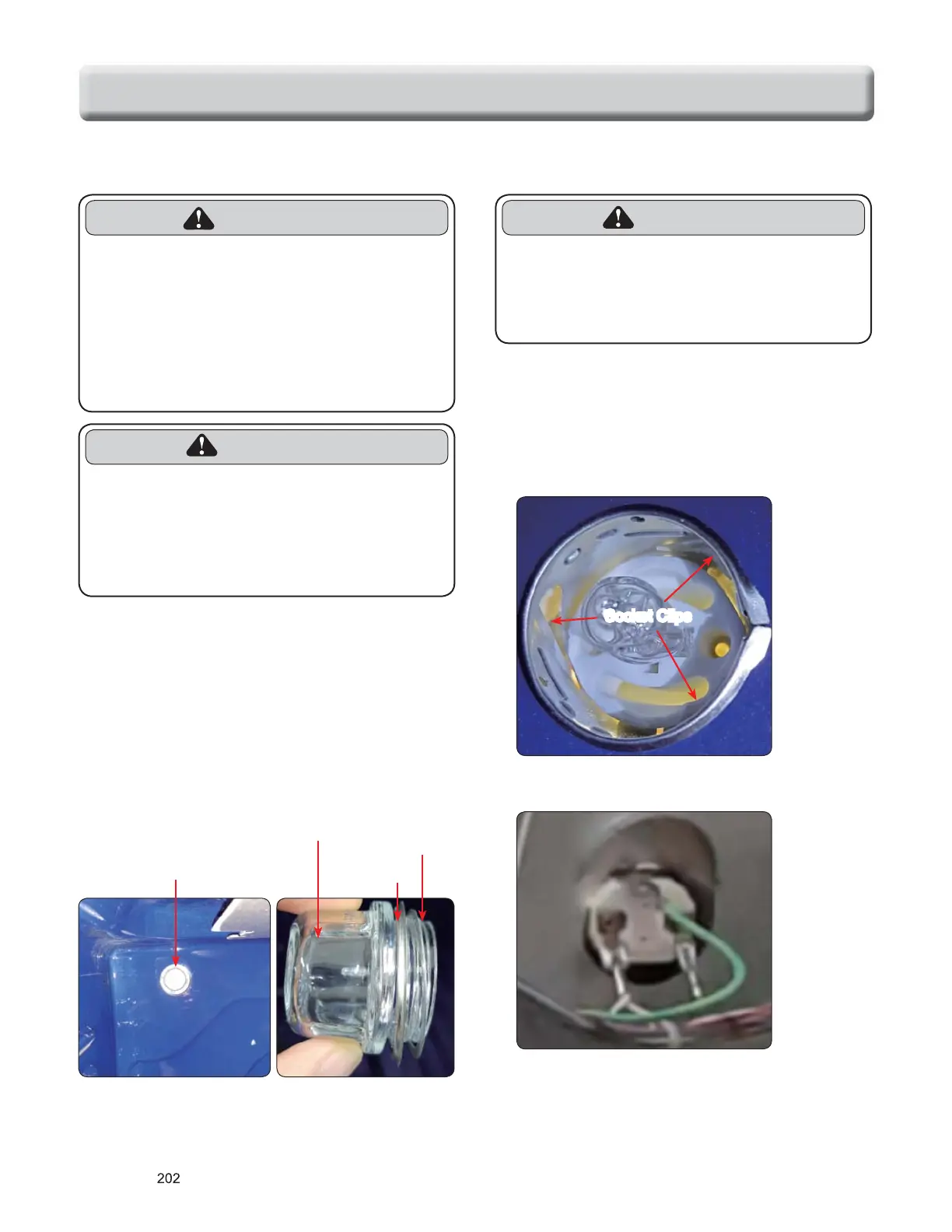

REMOVING THE OVEN LIGHT & SOCKET ASSEMBLY
To replace:
1. Turn off the electrical supply and gas supply
going to the range.
2. Turn the glass bulb cover in the back of the
oven counterclockwise to remove.
3. Pull the bulb out of the socket.
4. Insert a n bulb and replace bulb cover by
turning clockwise.
Glass cover & Bulb
Glass cover & Bulb
Outer Ring
Inner Ring
5. Use a screwdriver and bend the clips on the
oven light socket away from the edges of the
liner hole, and pull the socket out of the liner.
NOTE: If it is too difficult to remove the socket
from the front of the oven, you will have to push
the socket out from the back of the unit.
Socket Clips
6. Disconnect the wires from the socket terminals.
<Viewed From Rear Panel>
CAUTION
t Be careful not to scratch or chip the
oven liner paint when you remove
the oven light socket in the next
step.
WARNING
t DISCONNECT power supply cord
from the outlet before servicing.
t Replace all panels and parts before
operating.
t
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
CAUTION
t Be careful when you work on the
gas range handling the sheet metal
part.
- Sharp edge may be present and you can cut
yourself.
