3-14
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
5. Lift the door cover assembly out and put it down.
6. To remove the door handle & trim
-
Remove the 2 door handle screws and lift the door
handle o door trim and slide up the door trim.
1. Remove the oven door from the range
(See page 3-13 for the procedure).
2. Place the oven door on a padded work surface
with the front glass facing down.
3. Remove the 2 top door screws.
4. Remove the 7 bottom screws from the door liner.
COMPONENT ACCESS

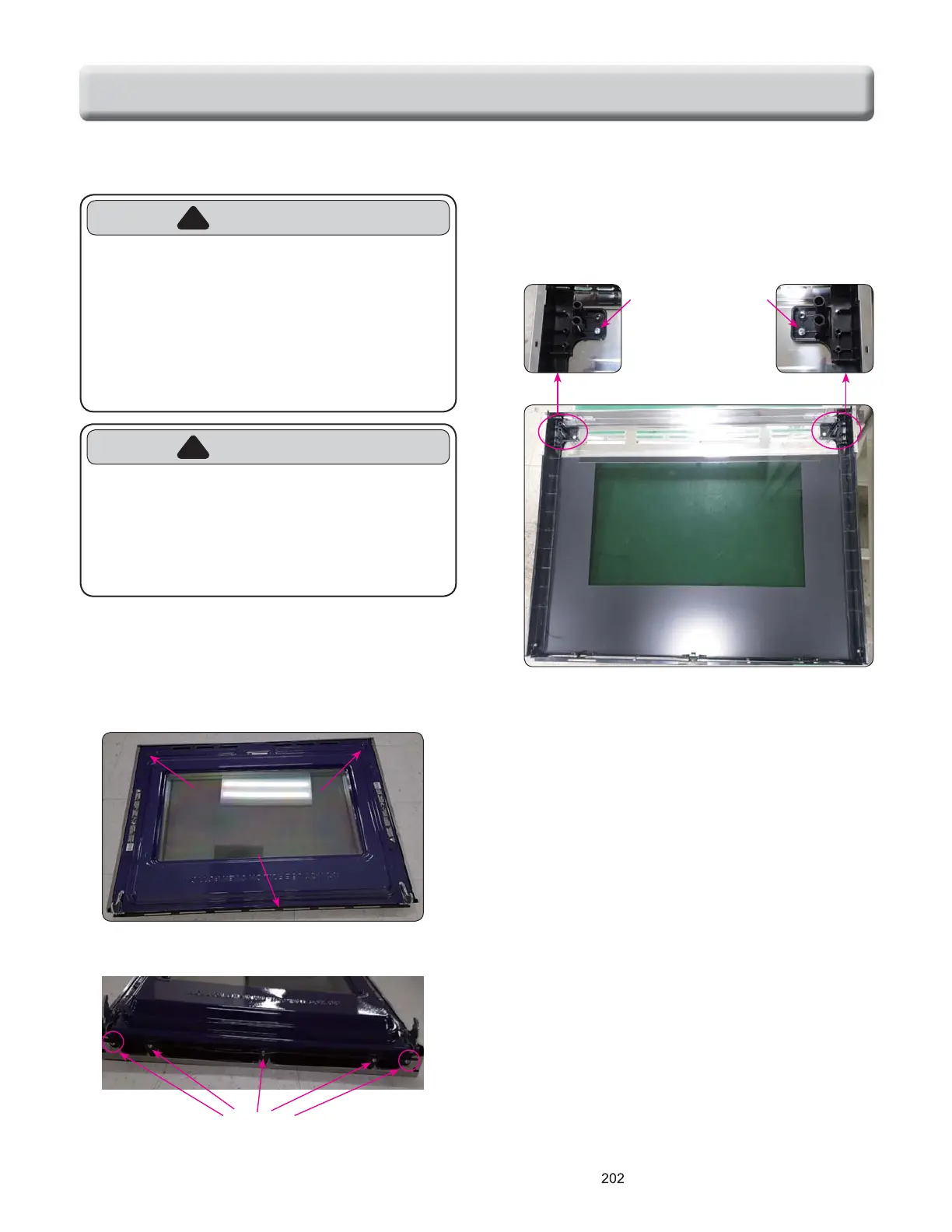

REMOVING THE OVEN DOOR HANDLE
Door Handle screw
WARNING
t DISCONNECT power supply cord
from the outlet before servicing.
t Replace all panels and parts before
operating.
t RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
!
CAUTION
t Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
!
2 Top liner screws
Bracket
7 screws
1
To Next Page
