Single surface units:
Left Rear(LR)
Right Rear(RR)
Element

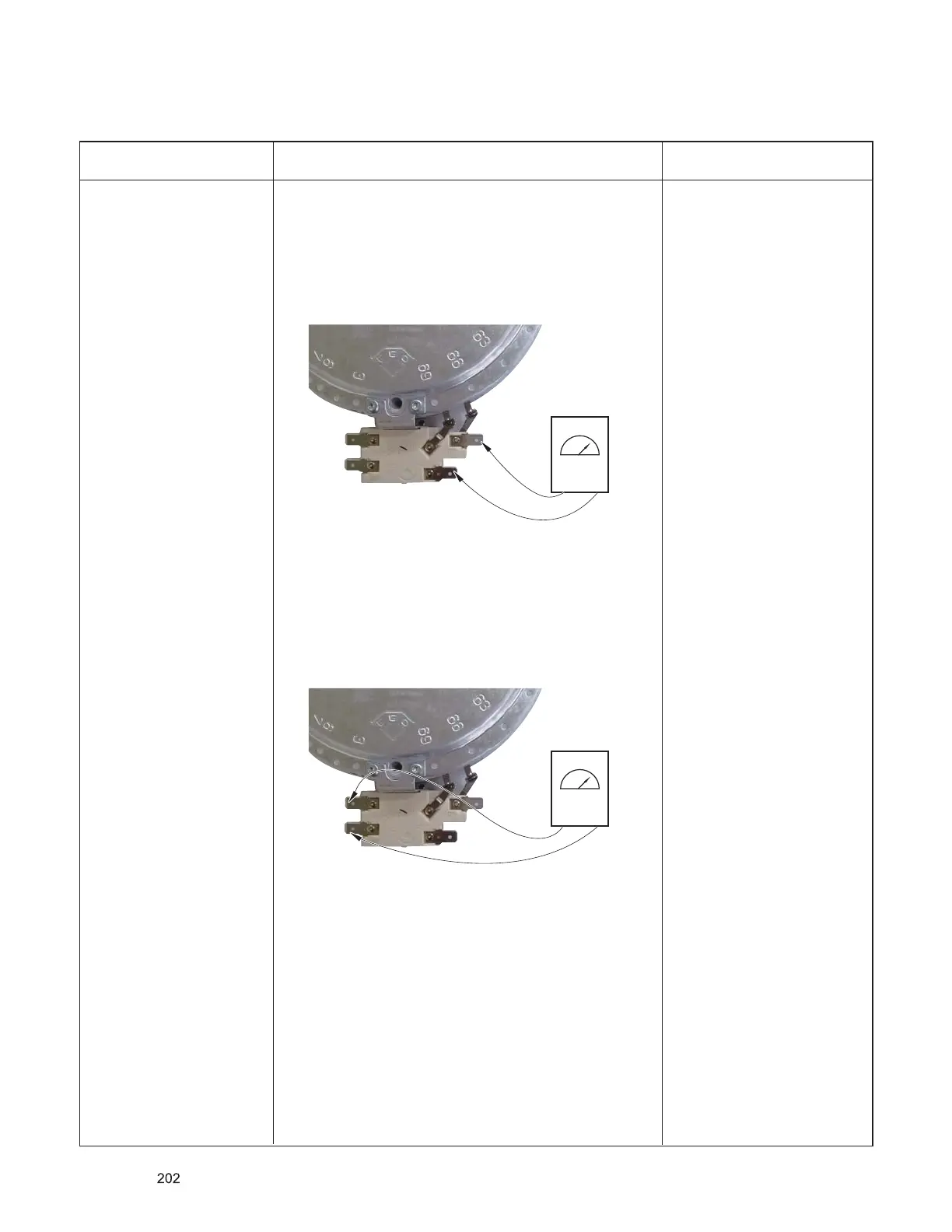

1. Refer to page 3-6 for the servicing procedure
2. Set the Multiple meter scale to the R x 1
3. Disconnect wires from cook-top elements
4. Touch the ohmmeter test leads to the element
terminal and 1A.
The meter should indicate 46 Ω ± 10%
5. Touch the ohmmeter test leads to limiter
terminals 1B and 2B.
With the temperature below 150˚F, the meter
should indicate an open circuit(innite).
With the temperature above 150˚F, the meter
should indicate continuity (0Ω).
Components Test procedures Results
Normal: Approximately 46 Ω,
If not replace
Below 150˚F
 open circuit(innite).
Above 150˚F
 continuity (0 Ω)
1A
2A
1B
2B
1
