LG LRMVS3006 Series Service Manual

-102-

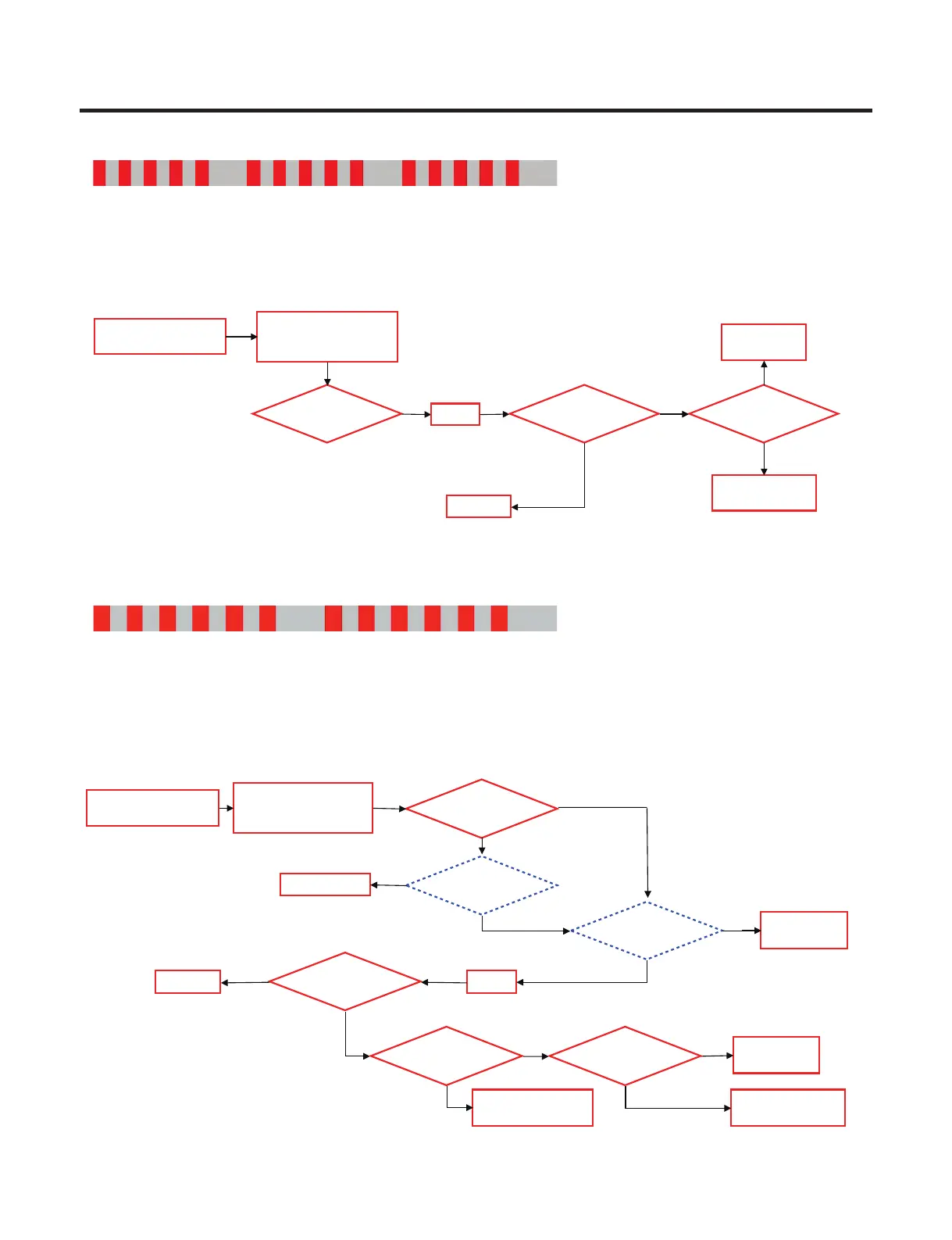

5. L/Piston Trip and LED Blinking 5 times (Locked Piston)
Protection Logic
Protection Logic
Blink Blink Blink Blink Blink OFF
Check
the Protection Logic
Check the L/Piston or
LED blinking 5 times
(Locked Piston Trip)
Do not operate
Comp .?
Recheck
Reset
Do not operate
Comp .?
N
Y
Replace
Comp ressor
Clogging the Cycle?
N
Y
Repair
Sealed system
→ Purpose : Detect locked piston.
→ Cause : Oil shortage of the cylinder, Cylinder or Piston damage, clogging the discharge, Comp. internal debris.
→ Logic : After the Comp. Off every 2 min 30 seconds restart Comp.
6. Current Trip and LED Blinking 6 times (Current Trip)
Blink Blink Blink Blink Blink Blink OFF
Check
the Protection Logic
Check the Current or
LED blinking 6 times
(Current Trip)
Comp ressor is operate
intermittently
Y
Check the
Comp ressor failure
Replace
Comp ressor
N
Reset
Y
Current trip
occur?
Check the
leakage andcycle
Recheck
Check the
PCB output
Y
Replace PCB
N
N
N
N
Y
Replace
Comp ressor
Repair
Sealed system
Y
Do not operate
Comp .?
Clogging the Cycle?
N
Y
→ Purpose : Protection Over-Current(Over-Load)
→ Cause : Abnormally ambient temperature(Over 43℃), Abnormally conditions like Shield machine room etc.
Condenser Fan failure, Comp. failure, PCB failure(IPM breakdown)
Oil shortage of the cylinder, Cylinder or Piston damage, clogging the discharge, Comp. internal debris.
→ Logic : After the Comp. Off every 6 minutes restart Comp.
Copyright © 2019
LG Electronics Inc. All rights
reserved. Only training and service purposes.
