LG LRMVS3006 Series Service Manual

-46-

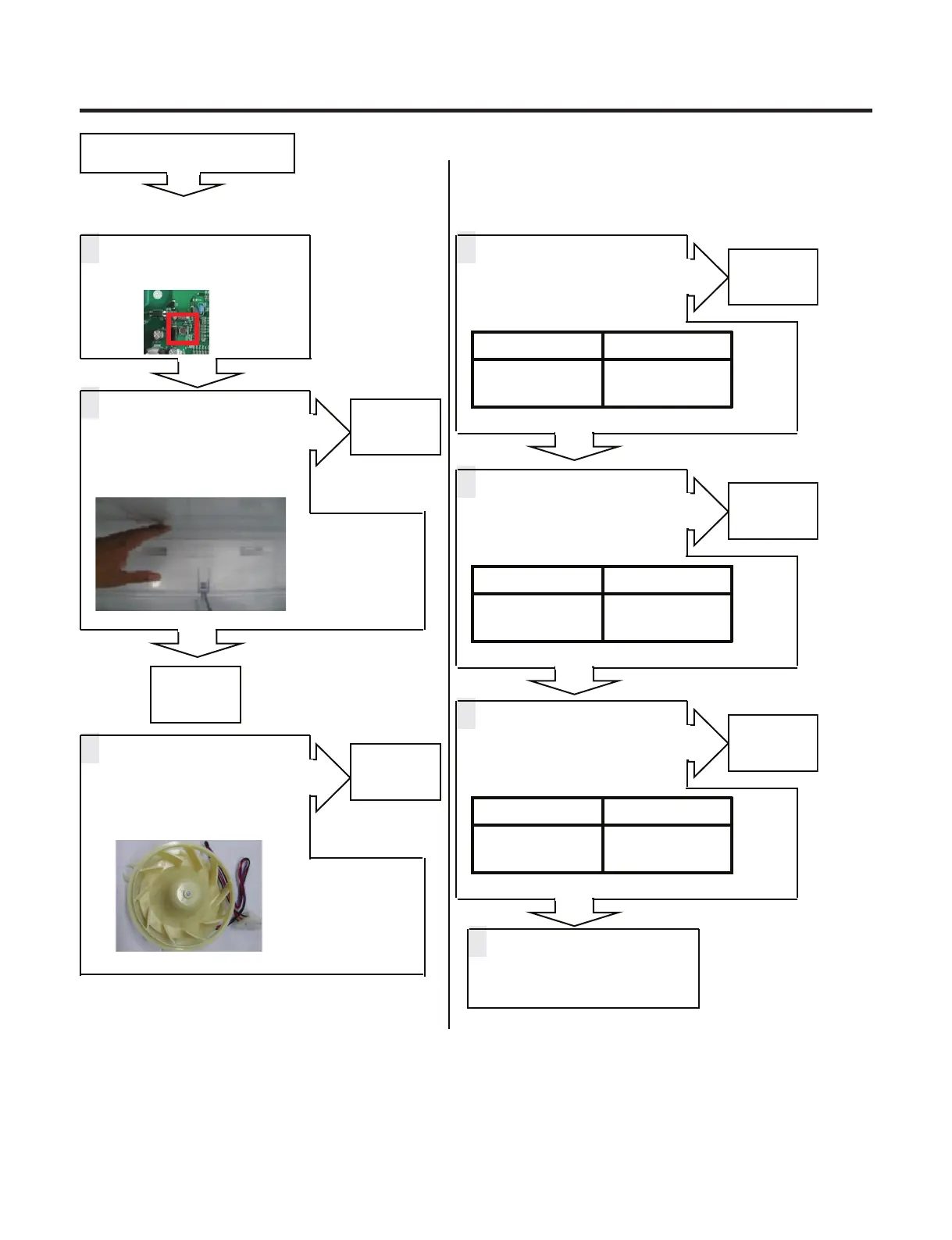

Refrigerator Fan Error (E rF)
1
2
Open the freezer door and Check
the air flow. Windy?
No
Yes
Go to 3
4
Check the Fan Motor voltage
Is Fan Motor voltage 11.4~12.6V?
Yes
3
Check the Fan motor.
Rotate fan using hand.
It feel sticky?
Yes
Change the
Fan motor
Replace
Main PCB
No
Reset the unit and
Input Test1 Mode.
(Push the button 1 time)
Voltage [V]
11.4~12.6V
5
Check the Fan Motor voltage
Is Fan feed back voltage 0V, 05V?
Yes
Change
the motor
No
Voltage [V]
Not 0V, 5V
6
Check the Fan Motor voltage
Is Fan PWM voltage 0V, 05V?
Yes
Replace
Main PCB
No
Voltage [V]
Not 0V, 5V
7
Explain to customer
Go to 4
TEST MODE 1
CON3
28th pin ~ 25th pin
TEST MODE 1
CON3
26th pin ~ 25th pin
TEST MODE 1
CON3
27th pin ~ 25th pin
