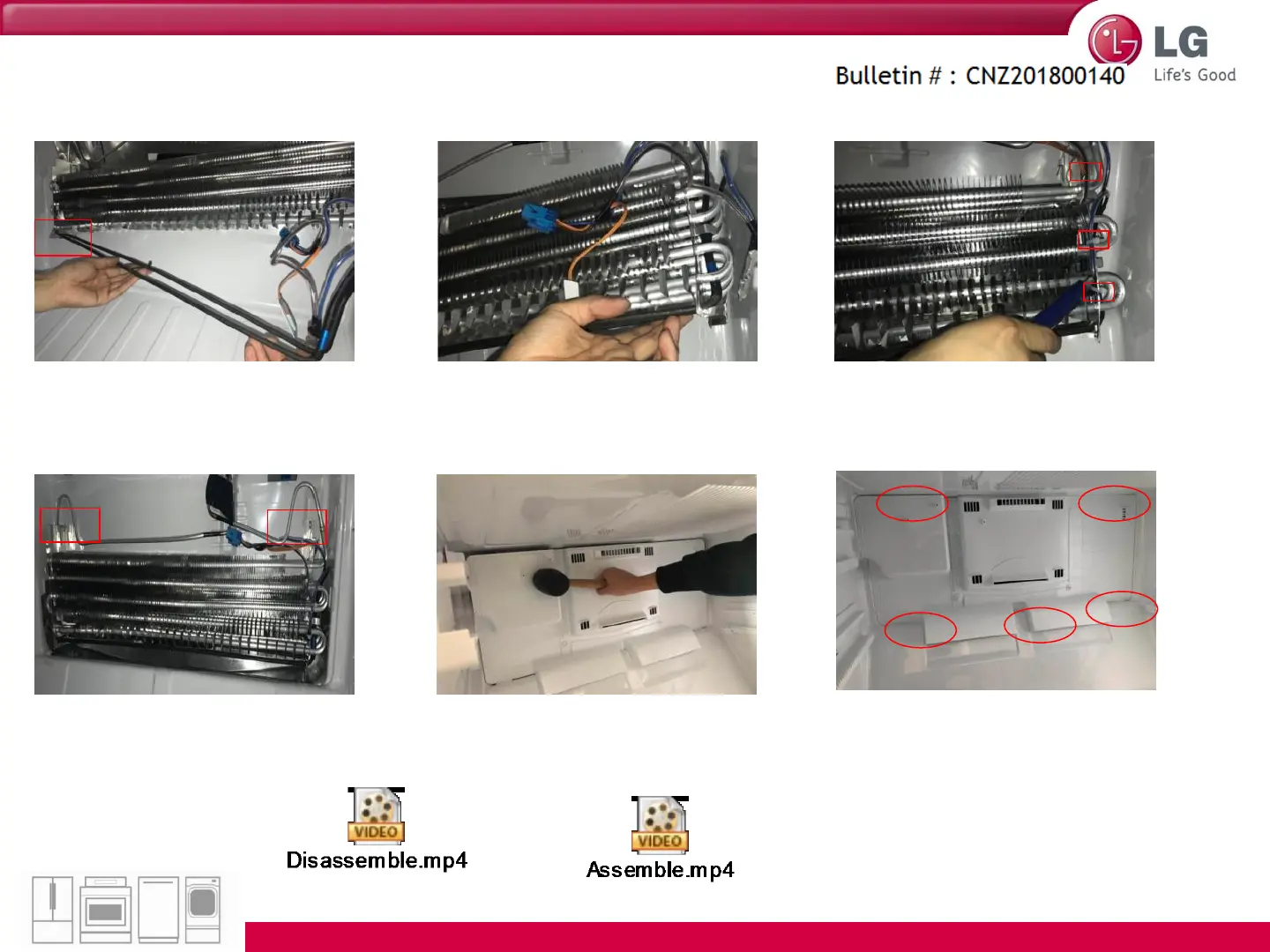

SVC guide for replace sheath heater
All the hook seat in hole properly
and then assemble the Freezer Door
And power on and error code check
No gap between the grill fan and
inner case
10. Replace a new sheath heater, insert to the
bracket hole at left-side bottom
11. Re-attach the sheath heater to the Evaporator 12. Re-tie lead wire and sensor at 3 initial positions
13. Put back the 2 hooks into case inner, reseat
the evaporator assembly
14. Reconnect 4 housing( 1 is for EVA, and 3
for cover assembly grill), push back in ( use
rubber hammer if possible to make grill fan
assembly seated properly)
15. Check grill fan assembly good
SVC Video guide for replace sheath heater (Double click)
