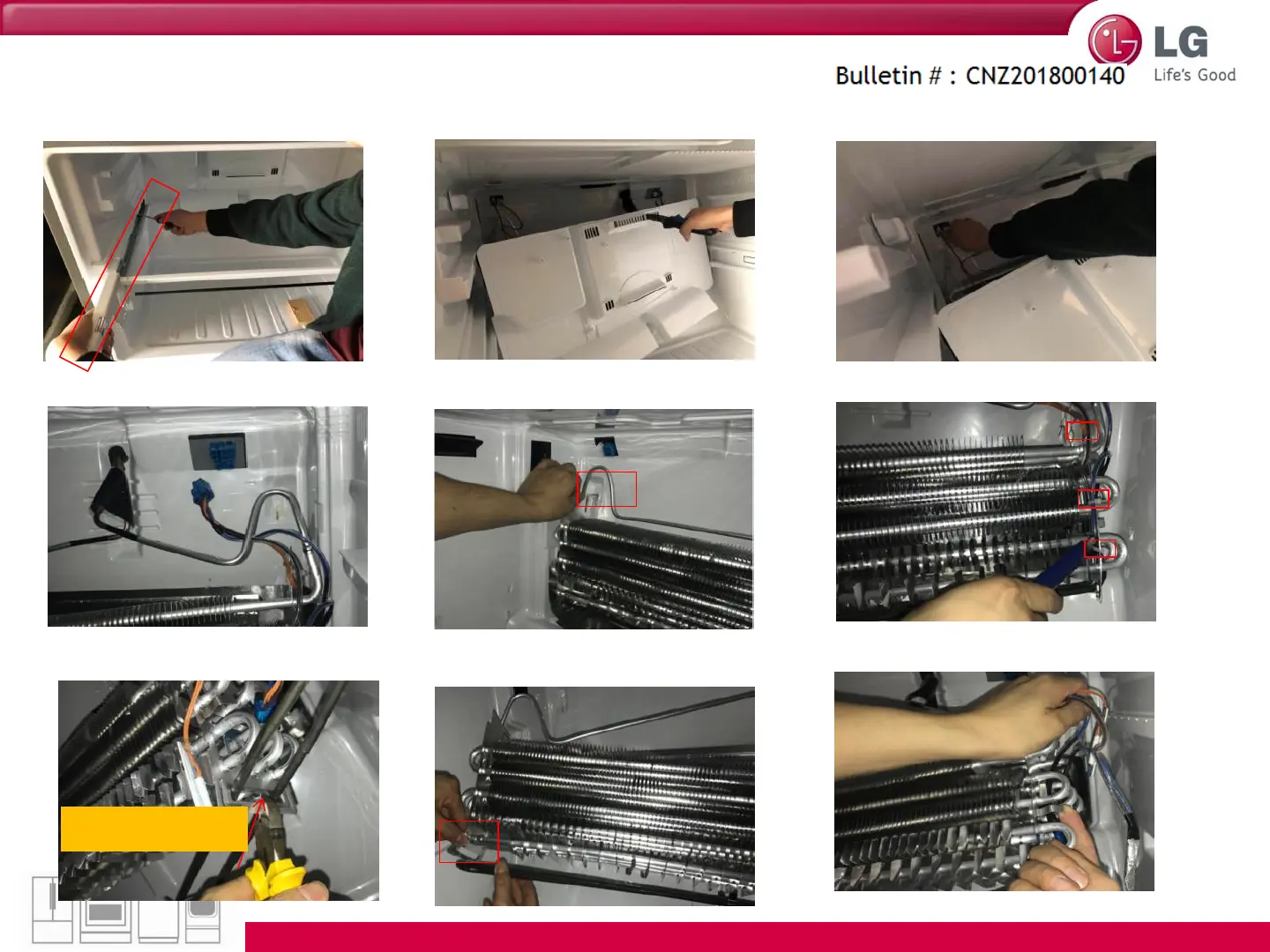

SVC guide for replace sheath heater
1.Remove Freezer door (Use screw driver to push
in the hook at both sides of case inner ) and then
remove the guide rail.
2. Use pliers to pull out the
Grille Fan shown in the figure.
3. Disconnect housing in the back (3EA),pull the
cover out
5.Separate the EVA hook from the
inner case ( Each side has a hook ）
4. Disconnect housing
6. Cut off 3 ties as shown by knife and then
throw it
8. Take the sheath heater out of the hole at the left-
side bottom position
7. Use sharp pliers to cut off the
bracket at right-side bottom position
9. Release the middle hook , remove sheath
heater from Evaporator assembly
Cut the Middle
position of bracket
To Next Page
