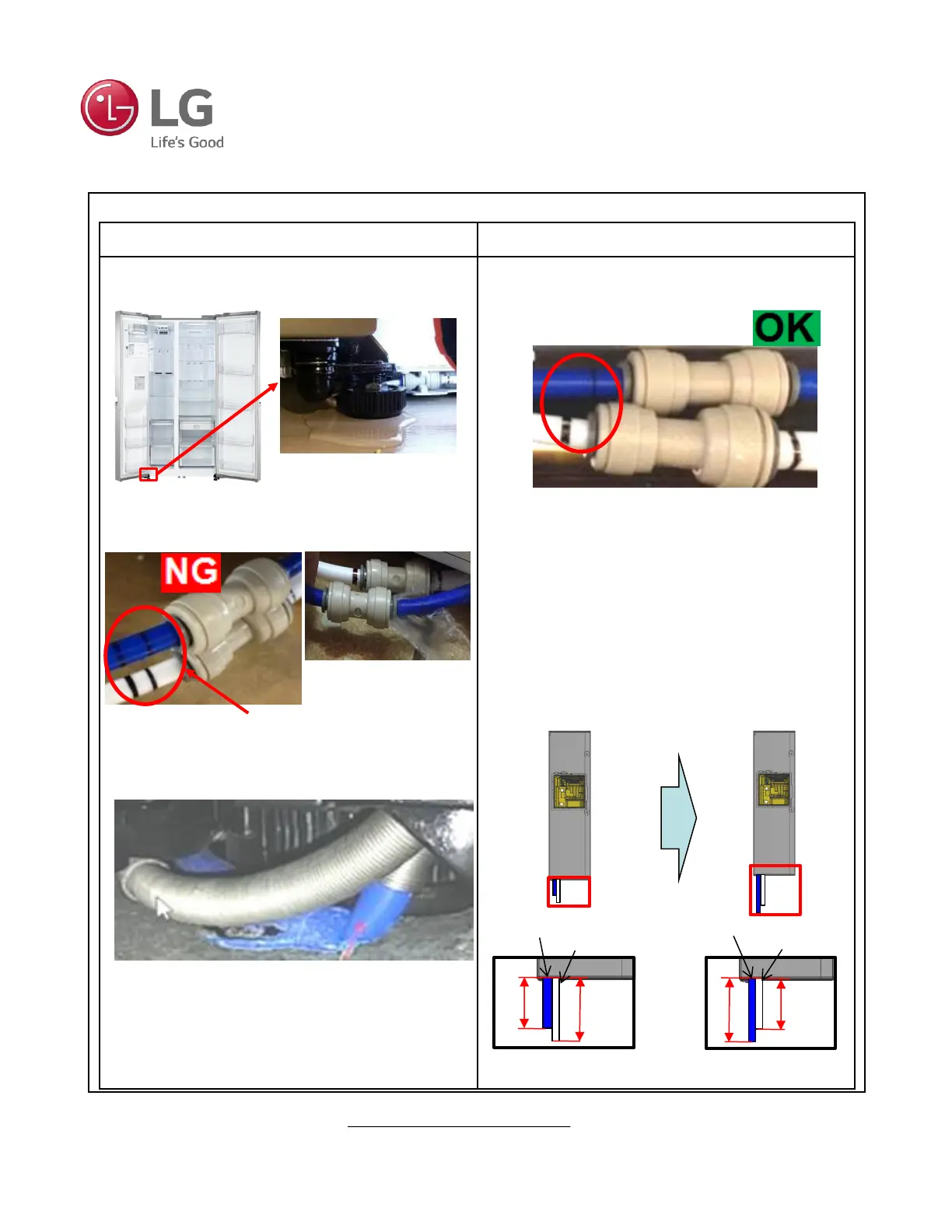

2. Repair Instruction
How to check for defect How to repair
6.- Is there a water leak under the door or
behind the refrigerator?
A) Reconnect water line hoses under
freezer door.
Two ID marks visible
Must be only one ID mark visible
B) Freezer assembly door has to be replaced.
B) Check under freezer door to see if the
water line is damaged.
A) Check water lines under freezer door, they
must be properly assembled.
Water leak due to
improper assembly
Application date: February 18
th
. 2015
200mm
170mm
295mm
290mm
Ice maker tube(blue)
Dispenser tube(white)
Ice maker tube(blue)
Dispenser tube(white)
AS IS TO BE
