LG LRMXC2206 Series Service Bulletin Booklet

• The information is available through “https://gsfs-america.lge.com” with a valid ID.
• The information is intended tor experienced technicians, not for customer .
• The information is subject to change or update without notice.
LG(61)-FO-DI-008.05
2. Repair Instruction

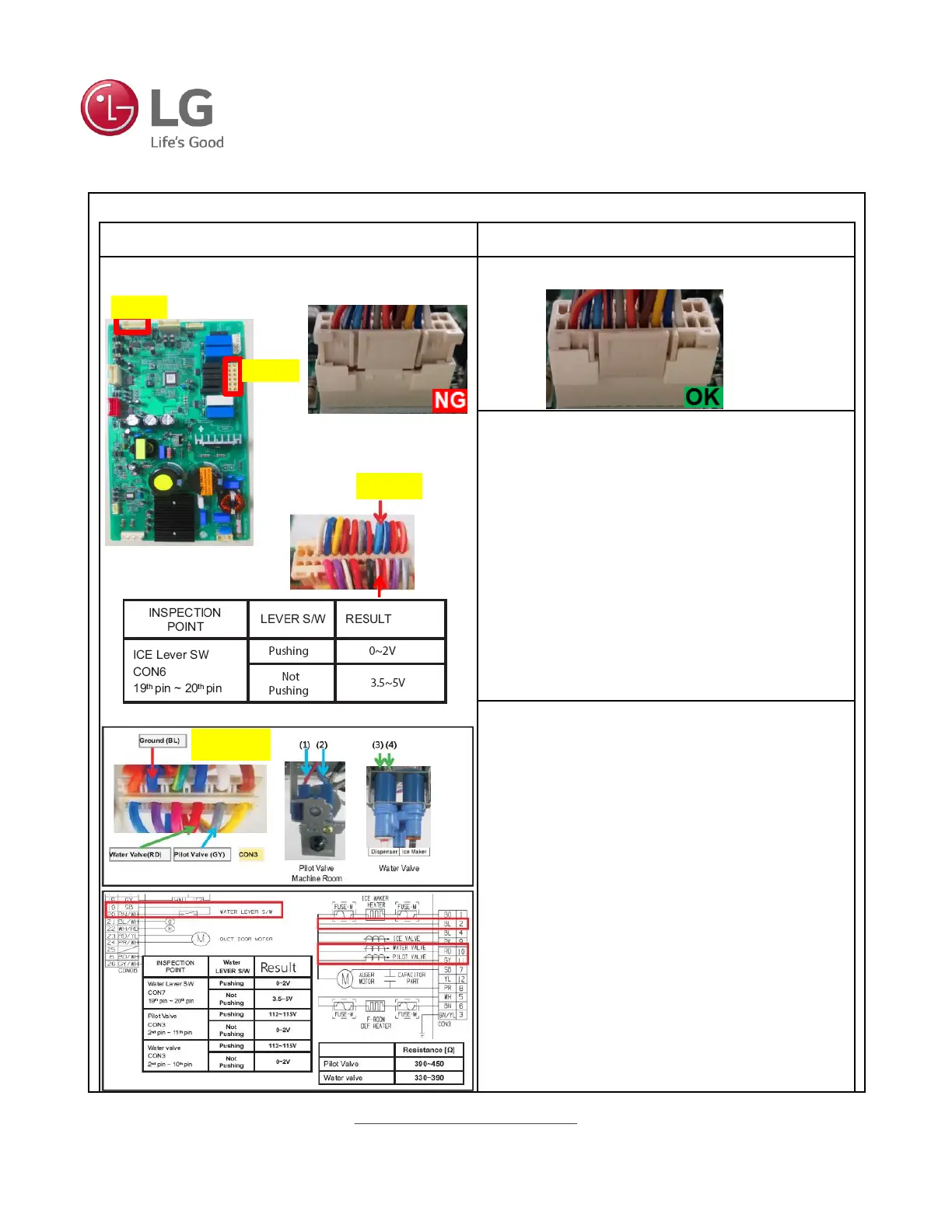

How to check for defect How to repair
7. Check all wiring connectors to main PCB.
A)Reconnect all harness in PCB main.
C)If the resistances are out of range,
change water valve/valves.
C) Check the resistance of each valve.
CON 3
CON 6
CON 3
CON 6
A)Check connector assemblies.
B)Check the voltage.(while
pushing the lever S/W) Is
voltage correct compared
with table.
B)If voltage is out of range, change Main
PCB.
