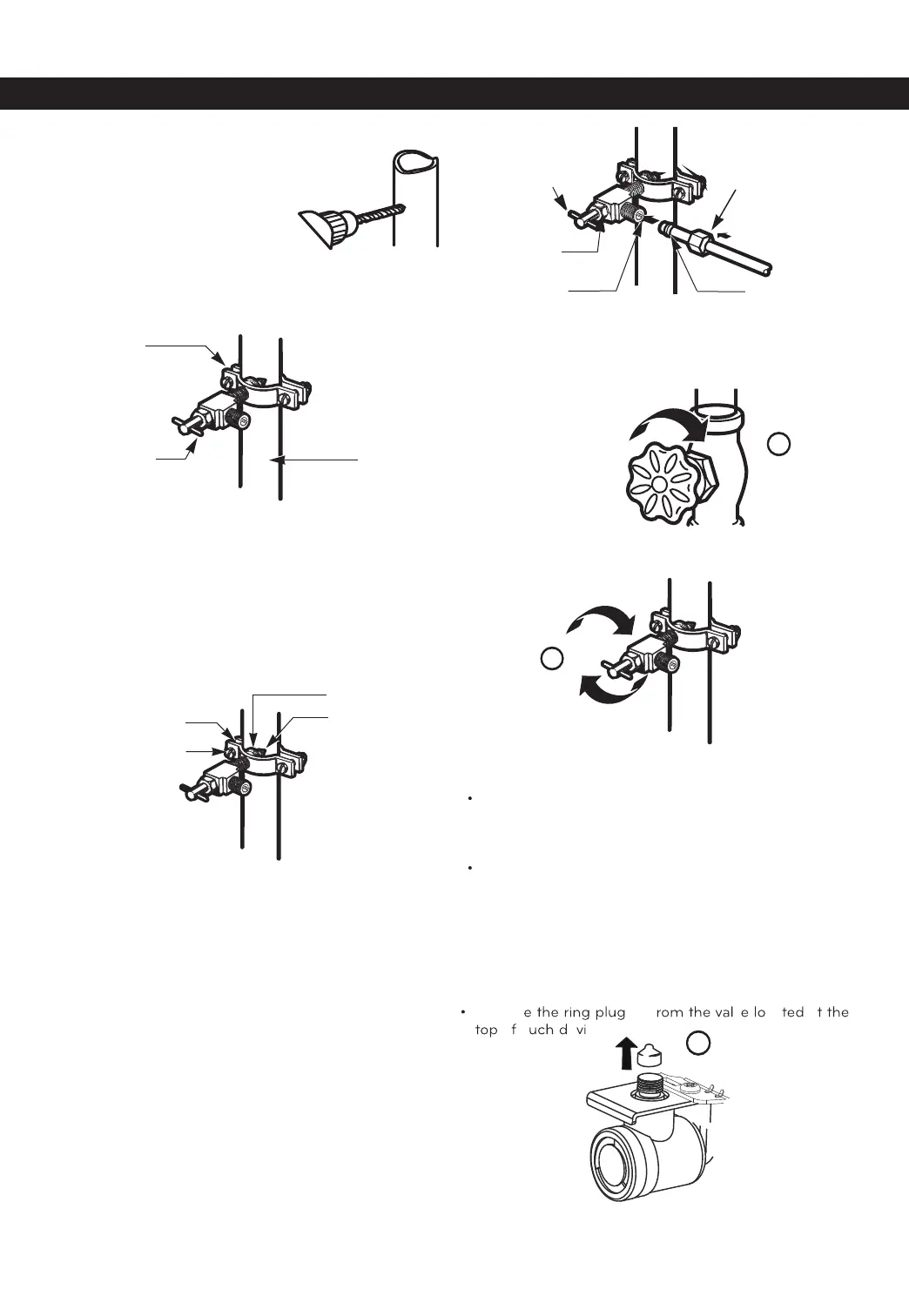

3. DRILL A HOLE FOR THE VALVE
Drill a 1/4” (6,35 mm) diameter
hole in the water pipeline.
Remove jagged edges produces
after perforation. Make sure water
does not reach the drill. Not
performing the 1/4” (6,35 mm)
perforation can lead to a low or
smaller ice production.
4. TIGHTEN THE VALVE
Tight the valve into the cold water pipeline with a tube
trap.
NOTE: Codes for 248 CMR pipelines of the state of
Massachusetts must be attached to the connection.
Valves of this type are banned in Massachusetts. Call an
authorized plumber by the norms and regulations of
your country.
5. TIGHTEN THE TRAP
Tighten the trap until the sealing ring begins to grow.
NOTE: Make sure it is not too tight, this can break the
pipe.
6. PLACE THE PIPELINE
Place the pipeline between the cold water pipe and the
refrigerator. Place it through a hole in the wall or floor
(behind the refrigerator or next to the cabinet) as close
to the wall as possible.
NOTE: Make sure there is a sufficient amount of extra
pipeline
(8 feet [244 mm] coiled up three times with a
10” [25 cm] in diameter) to allow free movement of the
refrigerator from the wall after installation was made.
7. CONNECT PIPELINE TO VALVE
8. DRAIN THE PIPE
Open the main water source (1) and drain the pipe until
water comes out clear.
Allow water flow from the bypass valve (2) and close after
draining 1/4 of a gallon (1L) of water.
9. CONNECT PIPE TO REFRIGERATOR
NOTES:
Before making connection to refrigerator, make sure
it is not connected to any energy source. If your
refrigerator does not have a water filter, it is advised
to install one.
If your water source contains sand or related particles
that can travel to the valve, install a water filter near the
refrigerator.
IMPORTANT: Never use old or used hoses. Always use
new ones to have a better use and experience. Connect
always to a potable water source to avoid security and
health issues.
Pipe Clamp
Saddle Type Vertical Cold
Shutoff Valve Water Pipe
Washer
Pipe Clamp Inlet End
Clamp Screw
S
addle Type
Shutoff Valve Compression Nut
Packing Nut
Outlet Valve Ferule (sleeve)
1
2
CONNECTING THE WATER LINE
Remov (1) f v ca a
o s e ce.
1
Place the compression nut and the copper pipe ferule at
the end of the pipe and connect to the valve. Make sure
the pipe is completely inserted into the valve. Tighten nut
carefully.
22

LG LRTLS2403S Specifications

General

Type	freestanding
Style	contour; top freezer
Color	stainless steel; grey
Total Capacity	23.80 cu. ft.
Refrigerator Capacity	17.60 cu. ft.
Freezer Capacity	6.20 cu.ft.
Humidity Controlled Crispers	2 humidity crispers
Number of Refrigerator Shelves	2
Number of Refrigerator Door Bins	3
Temperature Control	electronic/digital; yes
Temperature Sensor	3
Wine Rack	no
Interior Light	ceiling led
Dispenser	internal; water dispenser only
Ice Maker	optional; ice maker ready
Water Filter	yes; lt500p
Smart Home	no
Wi-Fi	no
Annual Energy Consumption	417

Weight and Dimensions

Depth	34 inch
Height	69 inch
Width	33 inch
