-34-

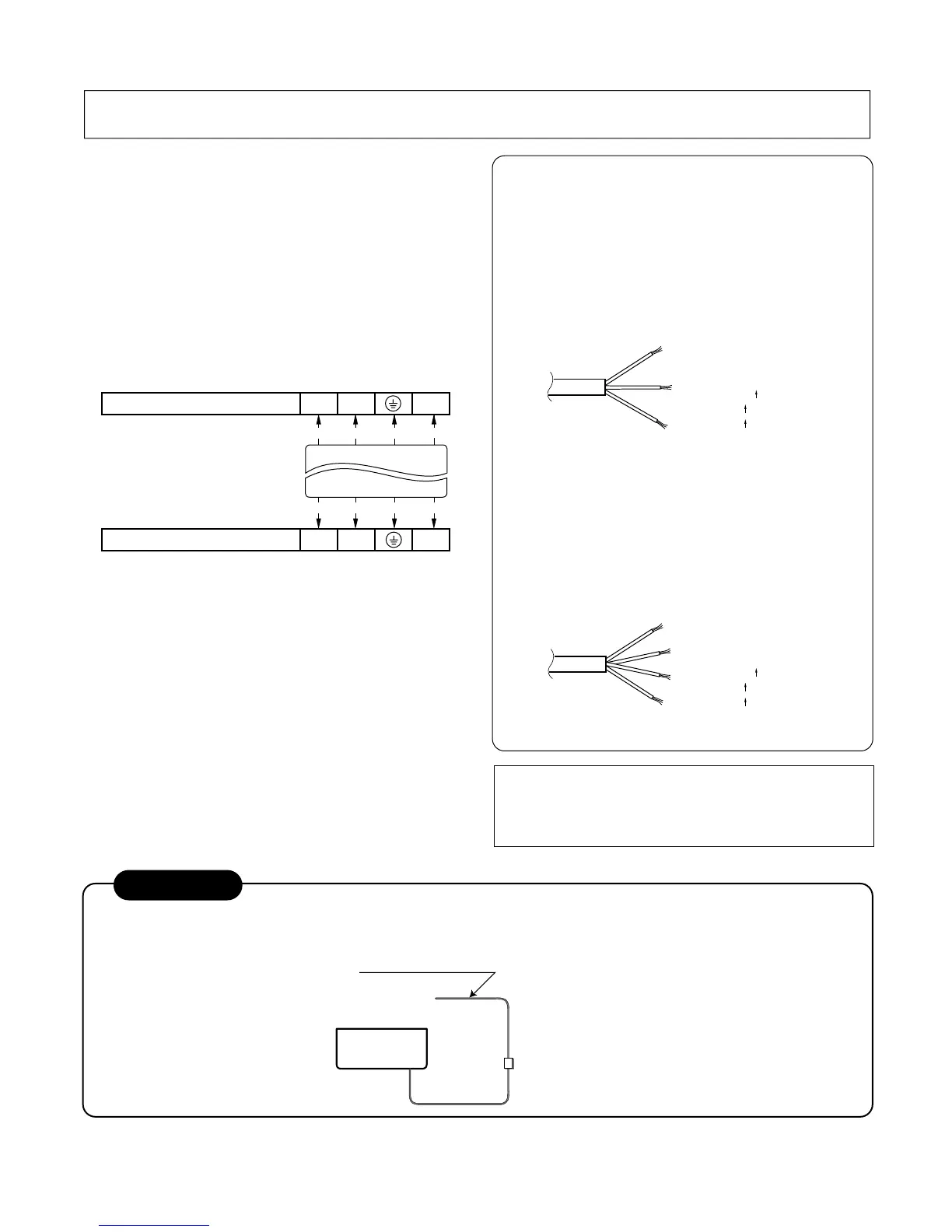

3. Connecting the Cable Between Indoor Unit and Outdoor Unit
1) Connect the cable to the Indoor unit.
■ Connect the cable to the indoor unit by connect-
ing the wires to the terminals on the control board
individually according to the outdoor unit connec-
tion.
(Ensure that the color of the wires of the outdoor
unit and the terminal No. are the same as those
of the indoor unit.)
CAUTION
The power cord connected to the indoor unit
should be complied with the following specifica-
tions
(Type H05VV-F approved by HAR or SAA).
RED
RED
BLUE
BLUE
1(L)
Terminals on the indoor unit
2(N) 3
1(L)
Terminals on the outdoor unit
2(N) 3
BROWN GREEN/YELLOW
BROWN GREEN/YELLOW
NORMAL
CROSS-SECTIONAL
AREA
7K,9K:1.0mm
2
12K:1.5mm
2
18K:2.5mm
2
NORMAL
CROSS-SECTIONAL
AREA
7K,9K:1.0mm
2
12K:1.5mm
2
18K:2.5mm
2
The connecting cable connected to the indoor
and outdoor unit should be complied with the fol-
lowing specifications
(Type H07RN-F approved by HAR or SAA).
• Inverter model
Color of Wires
Color of Wires
The length of the power supply cord should be over 1.8m
measured from the power supply cord entry of the cabinet
to the middle of the live pin of the plug.
Air
Conditioner
Main power source
If a power plug is not to be used, provide a circuit breaker between power source and
the unit as shown below.
Circuit Breaker
Use a circuit break-
er or time delay
fuse.
CAUTION
