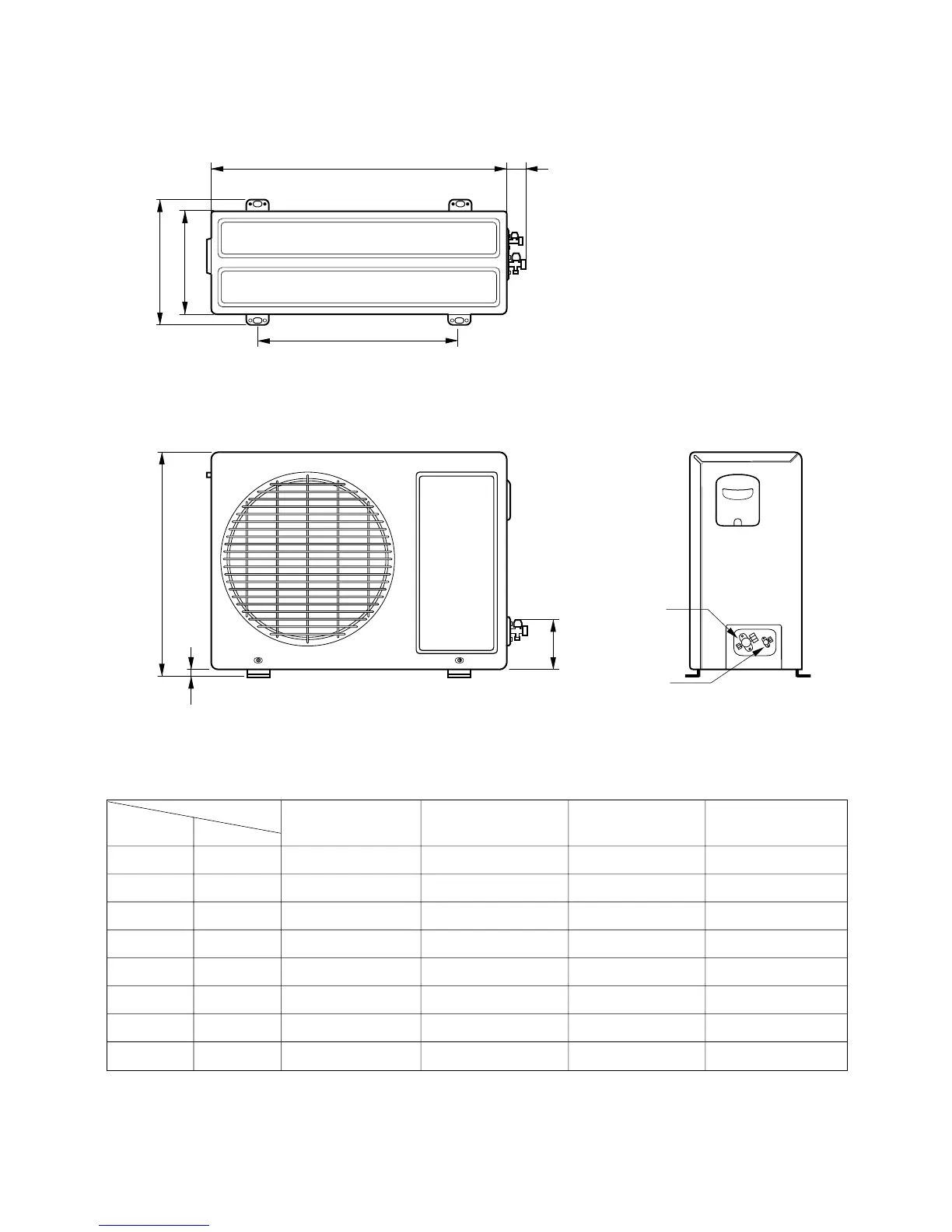

(2) Outdoor Unit
W
L2
L3
L1
D
H
L4
L5
Gas side
(3-way valve)
Liquid side
(2-way valve)
MODEL
7K Btu Series(AC) 9K,12K Btu Series(AC) 9K Btu Series(DC) 12K Btu Series(DC)
DIM unit
W mm 564 770 770 770
H mm 525 540 540 540
D mm 265 245 245 245
L1 mm 294 287 287 287
L2 mm 66 64 64 64
L3 mm 374 518 518 518
L4 mm 17 10 10 10
L5 mm 270 100 100 100
