LG LS-M3021CL - Indoor Unit Disassembly; Removing Grille and Panels

-41-
Disassembly of the parts (Indoor unit)
Warning :
Disconnect the unit from power supply before making
any checks.
Be sure the power switch is set to “OFF”.

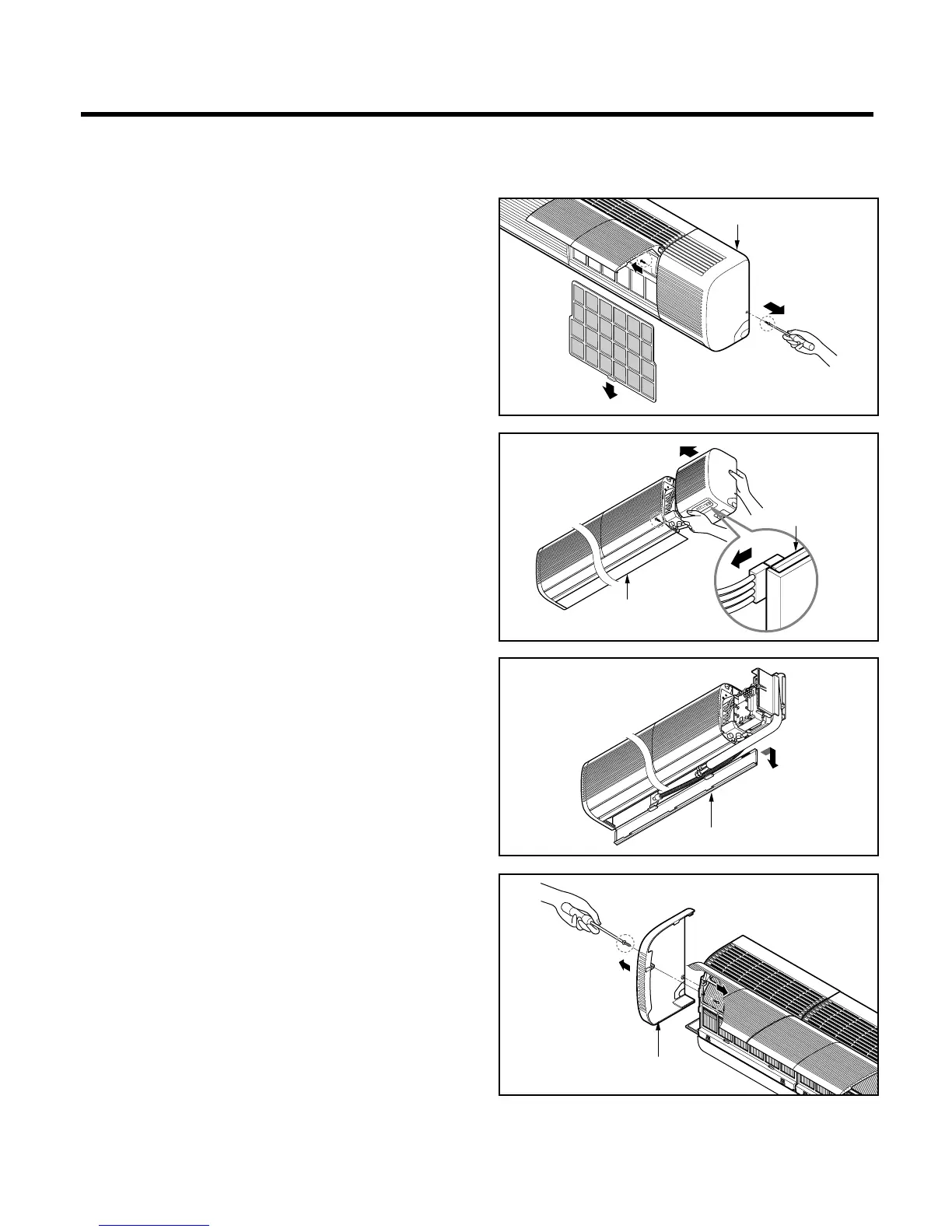

1. To remove the Grille from the Chassis.
➊ Remove the 2 screws of right side panel.
➋ Remove the front right side panel by the arrow.
■ The connector can be disconnected by pulling it
while pressing the connector's hook.
■ Remove the 1 screw for fixing low panel.
➌ Remove the lower panel by the arrow.
■ Take care not to scratch the wall and mat to
drop.
➍ Remove the left side pane.
(Remove the 2 screws.)
■ LS-M3060HL, LS-M3060CL, LS-M3060BL, LS-N3660HL, LS-N3660CL, LS-N3660BL
Right side panel
Main PCB
Low panel
Left side panel
Lower panel
