23
ENG
ENGLISH
MAKING CONNECTIONS
VIDEO
AUDIO
LR
IN
COMPONENT
AV
PR
PB Y
AUDIO
VIDEO

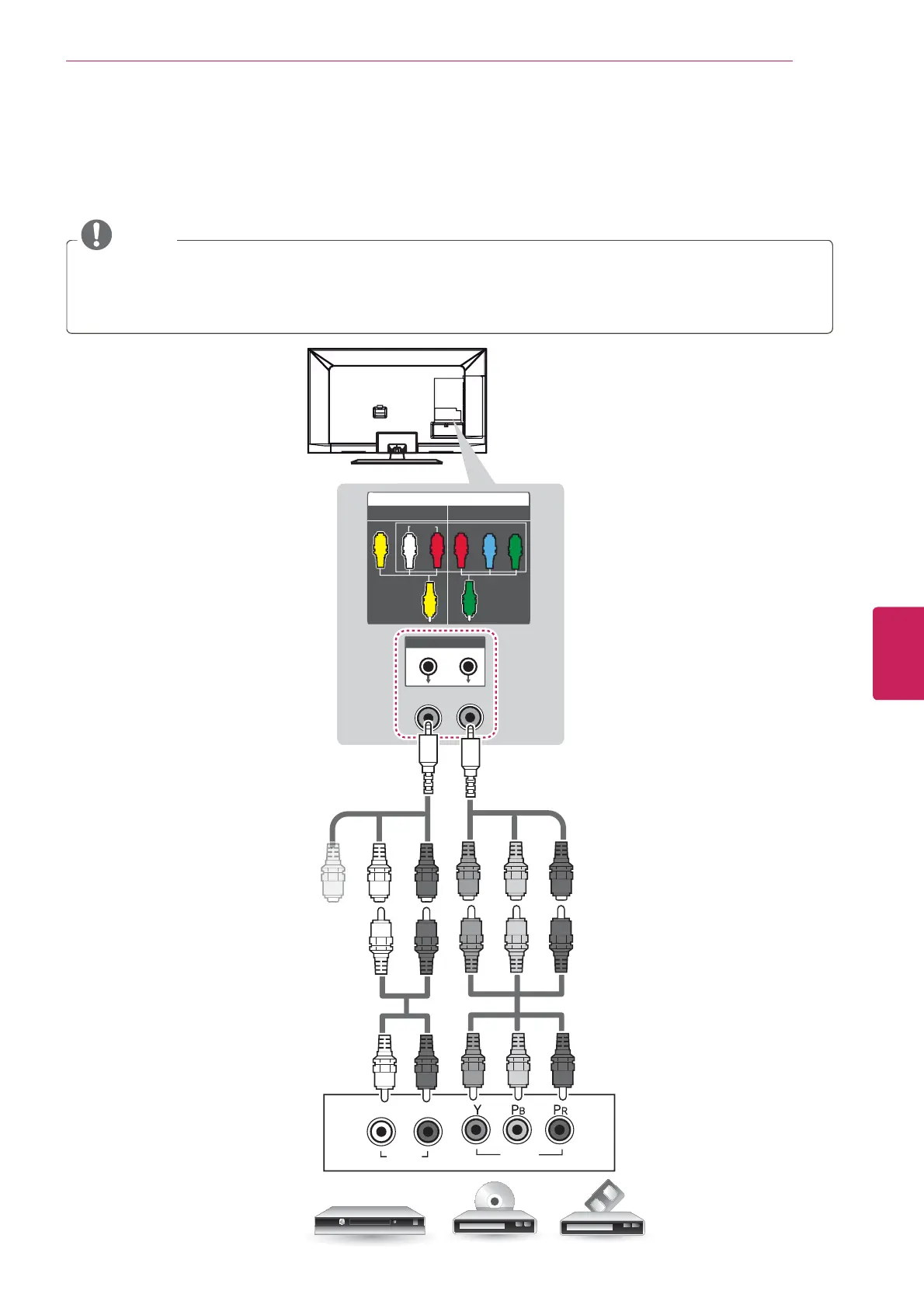

Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external device
and the TV with a component cable as shown in the following illustration.
NOTE
y
If cables are installed incorrectly, it could case the image to display in black and white or with
distorted color.
y
Check to ensure each cable is matched with the corresponding color connection.
DVD/ Blu-Ray / HD Cable Box
(*Not Provided)
(*Not Provided)
GREEN
RED
BLUE
GREEN
RED
BLUE
GREEN
RED
BLUE
WHITE
RED
YELLOW
WHITE
RED
WHITE
RED
(Use the composite video cable provided.)
(Use the component video cable provided.)
GREENYELLOW
To Next Page
