MACHINE COMP
AR
TMENT
: GR-L277SV(S)V
A (LSC27950SW
, LSC27950SB, LSC27950ST)
*
: Optional part

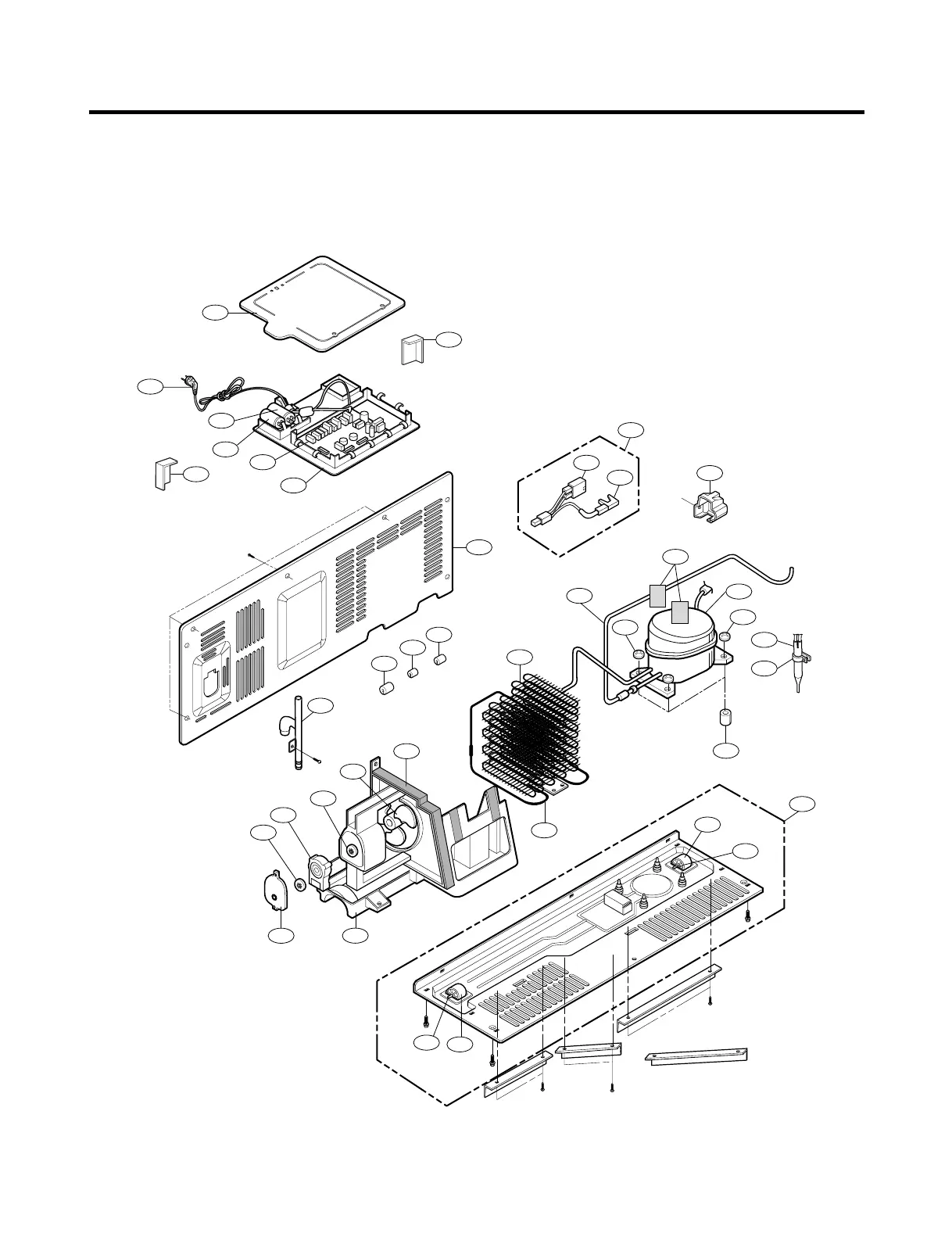

EXPLODED VIEW
- 109
-
300A
310B
307A
304A
306A
310A
317B
317A
313A
301A
307A
104A
327A
*
328A
*
303C
303B
303A
500A
502B
406A
101B
101A
308A
308C
308B
309B
403B
309C
309A
502A
407B
407A
*
305C
305B
305C
305B
305A
328B
*
316A
*
#EV#
104
106
Table of Contents
Default Chapter
2
Table of Contents
2
Warnings and Precautions for Safety
3
Specifications
4
Parts Identification
6
How to Install the Refrigerator
8
How to Adjust Door Height
8
Filter
9
How to Control the Icemaker Water Supply
10
Micom Function
11
Explanation of Micom Circuit
26
Explanation of Pwb Circuit
26
Pwb Parts Diagram and List
45
Pwb Circuit Diagram
50
Icemaker and Dispenser Working Principles and Repair
52
Working Principles
52
Function of Icemaker
53
Circuit
55
Trouble Diagnosis
57
Troubleshooting
57
Faults
67
Cooling Cycle Heavy Repair
84
How to Deal with Claims
91
How to Disassemble and Assemble
96
Door
96
Handle
97
Fan Shroud Grille
97
Water Valve Disassembly Method
98
FAN and FAN MOTOR DISASSEMBLY METHOD
98
Dispenser
99
Exploded View
101
