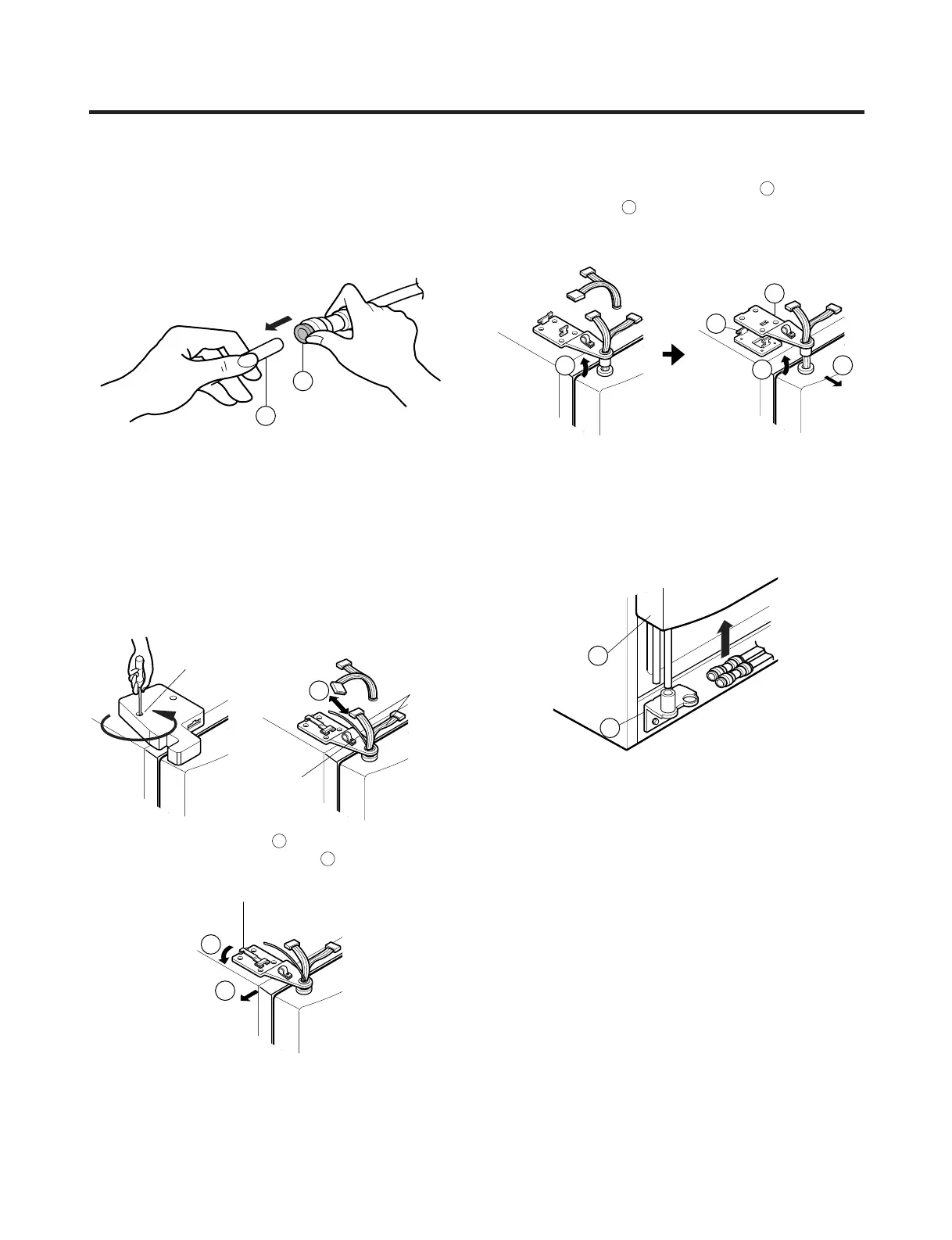

1. DOOR
1) Remove lower cover and then disconnect water
supply tube in the lower part of freezer door.
• Pull the water supply tube forward while pressing on
the coupling as shown in the drawing.
w
Disconnecting the tube under the door causes about
3 pints (1.5 litters) of water to flow out. Use a big
container to catch it.
Note : Connect the same tube color.
2) Remove the a freezer door.
(1) Loosen hinge cover screw of freezer door and remove
the cover.
Disconnect all connecting lines except grounding cord.
(2) Turn hinge lever in arrow A direction until it is
loosened and take it out in arrow B direction.
Note : • When disconnecting refrigerator door, turn hinge
lever counterclockwise.
• If the hinge or bracket are bent during assembly,
use two extra screws (Tap Tite M6, Left Hinge
attaching screw) in the holes of the upper hinge.
(3) Disconnect upper hinge from the hinge supporter
by grasping the front part of upper hinge and lifting up
(Hinge Assembly, U) in arrow direction A and pull
forward in arrow B direction. Be careful because the
door may fall, damaging the door, the floor, or injuring
you.
(4) Lift up the freezer door in arrow direction and
disconnect the door from the lower hinge . Don’t pull
the door forward.
Note : • Lift up the freezer door until the water supply tube
is fully taken out.
(5) Assembly is the reverse order of disassembly
HOW TO DISASSEMBLE AND ASSEMBLE
- 96 -
2
Connecting
Line
Earthing
Cord
Hinge Cover
To Next Page
