6. DISPENSER

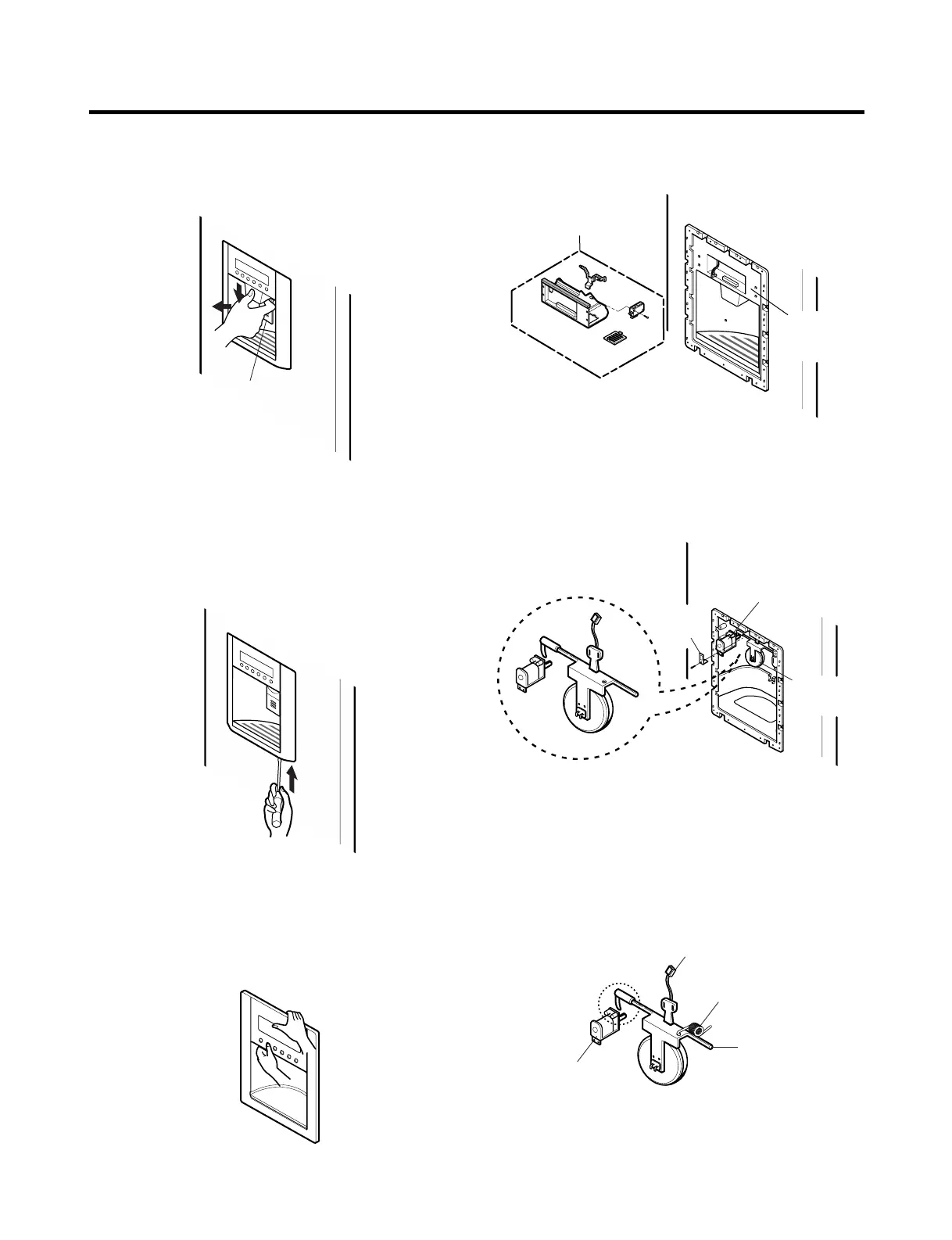

1) Disconnect funnel and button assembly by pulling down
and forward.
2) Remove display frame assembly by making a gap
between a display frame assembly and door with a flat
blade screwdriver and pulling it forward. The cover
dispenser is attached with a hook.
3) The display assembly can be connected by pressing the
top of the dispenser cover and pushing it after
separating the display frame from its housing.
4) Loosen four screws with a phillips screwdriver and pull
the funnel assembly to disconnect.
5) The duct cap assembly can be disconnected if the hold
lever connecting screw is loosened with a phillips driver.
6) To install the duct cap assembly, insert one end of the
spring into the right hole of the dispenser lever and
insert the other end into the right hole in the top part of
the dispenser. Then attach the holder at the solenoid
switch.
HOW TO DISASSEMBLE AND ASSEMBLE
- 99 -
Funnel Assembly
Funnel
Assembly
Solenoid Assembly
Duct Cap
Assembly
Holder
Lever
Spring
Sheath Heater
Dispenser Lever
Solenoid Assembly
To Next Page
