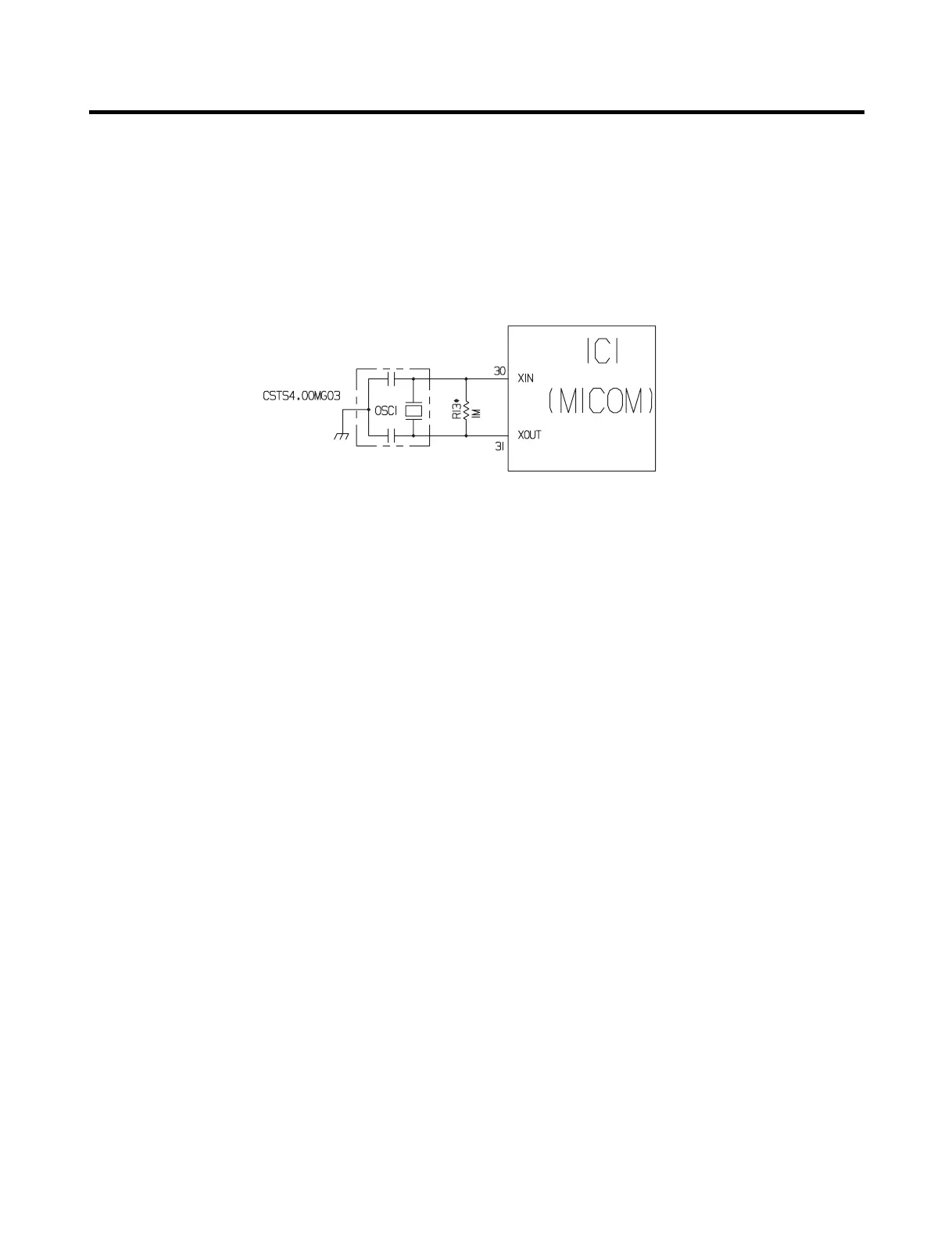

1-2. Oscillation circuit
The oscillation circuit generates a basic clock signal for synchronization and time calculation related to the transmission of
data and calculations made by the MICOM (IC1). The oscillator (OSC1) must always be replaced with an exact replacement
part. If this specification is changed, the change will affect the time calculations of the MICOM and it might not work at all.
(1) GR-L277SV(S)VA, SSWA (LSC27950SW, LSC27950SB, LSC27950ST, LSC27960ST)
EXPLANATION FOR MICOM CIRCUIT
- 27 -
