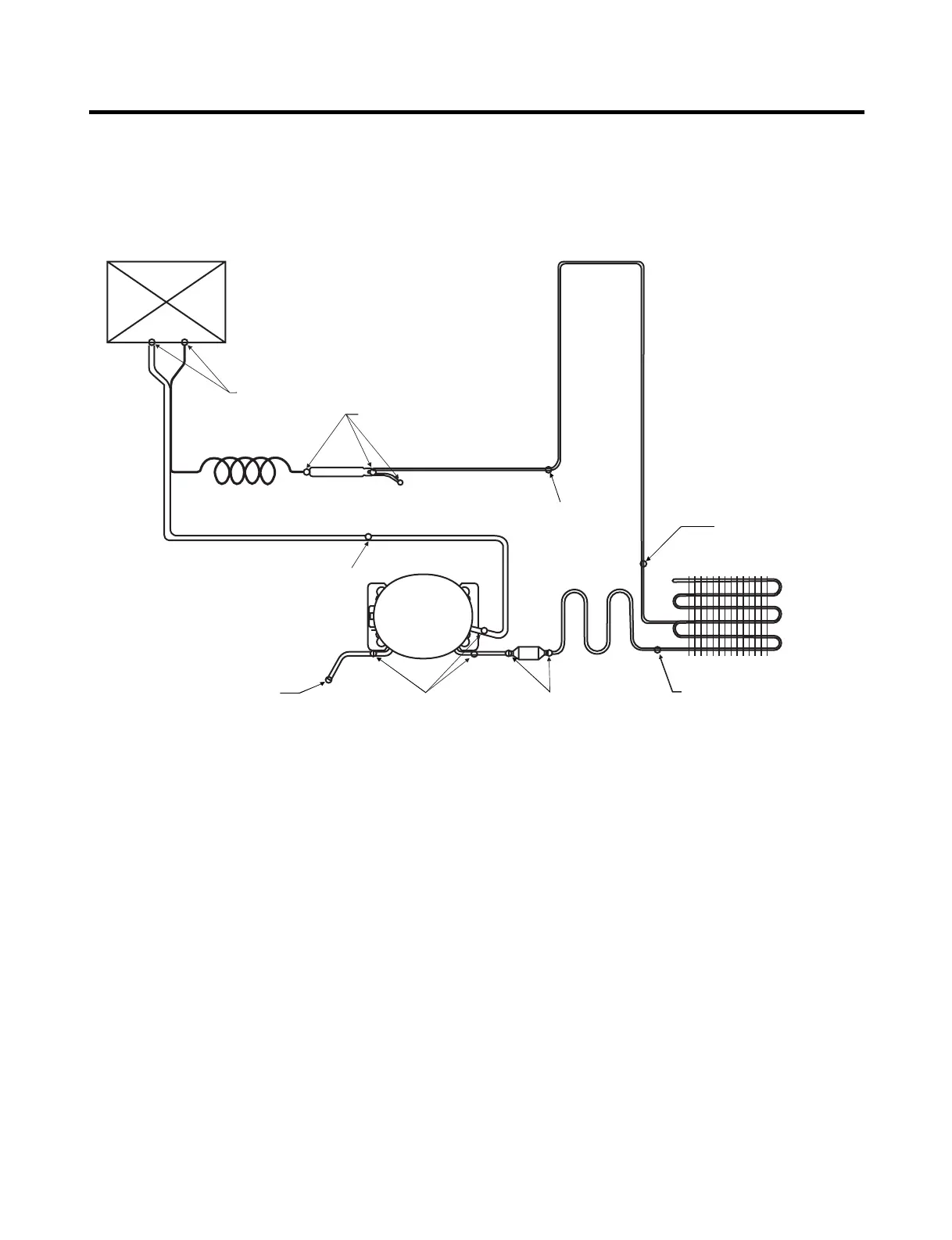

3-6. Brazing Reference Drawings
TROUBLE DIAGNOSIS
- 90
-
JOINT PIPE ASSEMBLY
HOT LINE PIPE ASSEMBLY
(Freezer)
JOINT PIPE
ASSEMBLY
WIRE CONDENSER ASSEMBLY
SUCTION PIPE ASSEMBLY
DRIER ASSEMBLY
TUBE
Copper Brazing
Copper
Brazing
Silver Brazing
Copper
Brazing
Copper Brazing
Copper Brazing
Coppper Brazing
Silver Brazing
Copper
Brazing
89
91
