3-8
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes

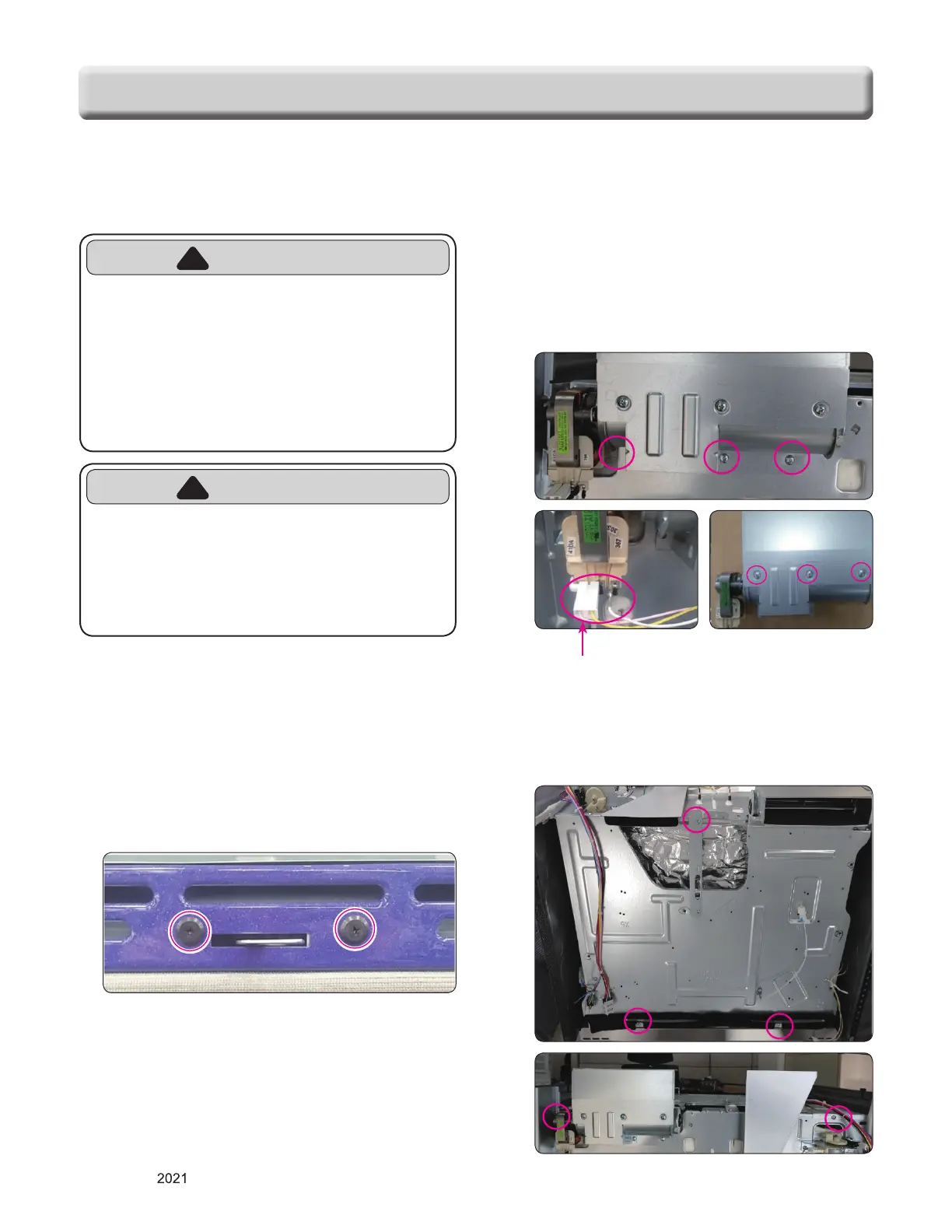

COMPONENT ACCESS
1. Turn off the electrical supply going to the range.
2. Pull the range away from the wall so that you can
access the rear panel.
3. Open the oven door.
4. Remove the cooktop(See page 3-4)
5. Pull the controller from the range. (See page 3-5)
6. To remove the door latch:
a) Remove the two screws from the door latch
b) Remove the 3 screws on the back panel for
remove cooling motor
c) Remove the wires from the cooling motor
d) Remove the 3 screws on the main duct from
the cooling motor
e) To remove the main duct, remove the 3 screws
on the main duct
f) To remove the main duct, remove the 2 screws
on the back panel
REMOVING THE COOLING MOTOR, THERMAL DISK AND
DOOR SWITCH
WARNING
DISCONNECT power supply cord
from the outlet before servicing.
Replace all panels and parts before
operating.
RECONNECT all grounding devices.
- Failure to do so can result in severe personal
injury, death or electrical shock.
! !
CAUTION
Be careful when you work on the
electric range handling the sheet
metal part.
- Sharp edge may be present and you can cut
yourself.
! !
Wires
