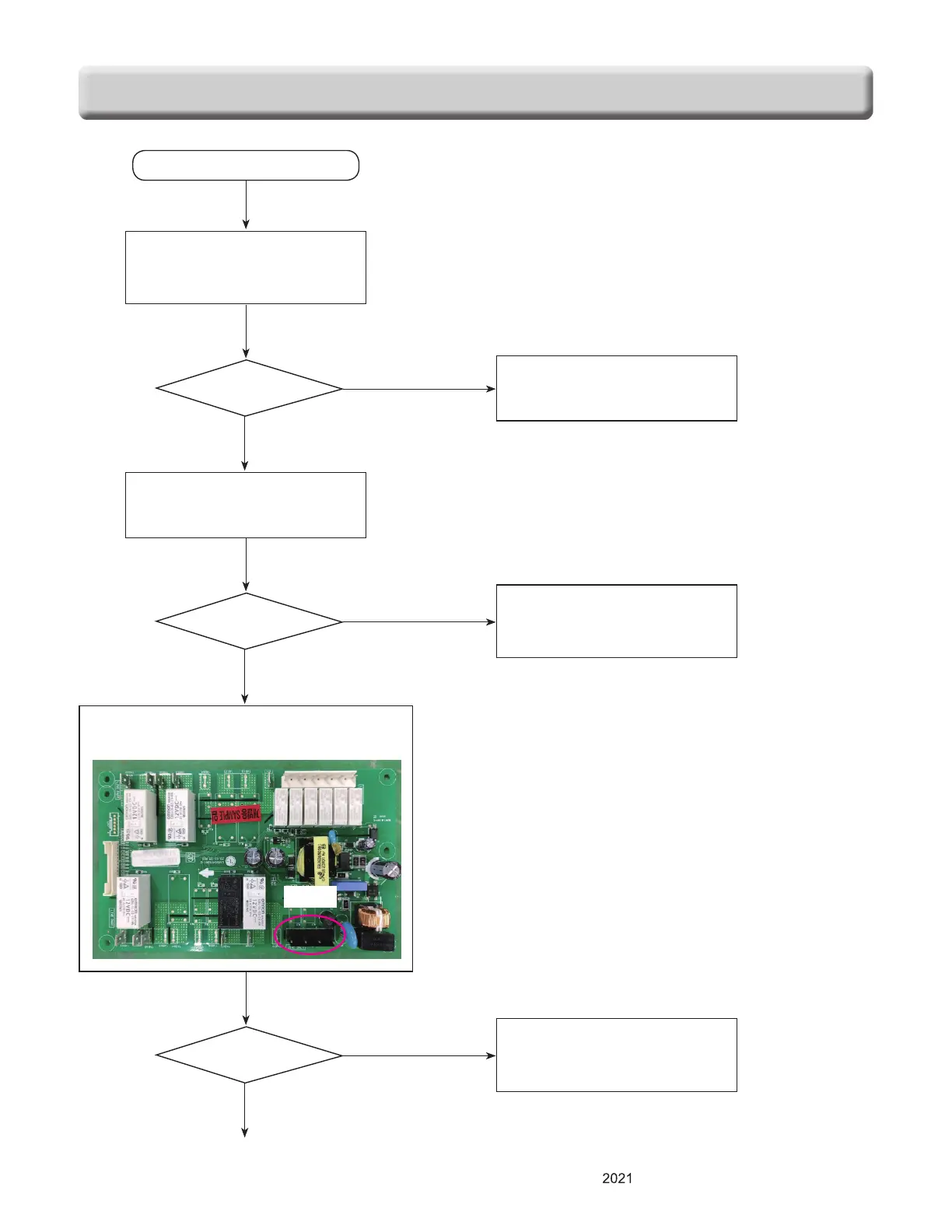

CHECKING FLOW CHART BY FAILURE
Check the beep sound,
Rotating the mode knob.
Can hear the beep sound?
Change the LED Module and
Backlighting Module.
Reconnect.
If defective harness replace
or fix.
Reconnect.
If defective harness replace or
fix.
Check the connection of
power cord.
Check the connection of Power
PCB(CN01)
Normal?
Normal?
Normal?
Yes
No
No
No
Yes
Yes
1. Power Failed(Dead)
Plug the unit
CN01

LG LSEL6335D Specifications

General

Style	storage (w/ handle)
Color	black stainless steel
Main Capacity	6.3 cu. ft.
Options	glass touch (smoothtouch™)
Cooking Programs	bake, conv. bake, conv. roast, broil high, broil low, warm, proof, frozen meal, air fry, slow cook, easyclean, selfclean
Temperature Probe	no
Convection	yes
Number of Burners	5
Number of Racks	3
Control Type	knobs; touch sensor; front tilt-control knobs; glass touch
Interior Light	yes
Remote Control	yes
Smart Home	smartthinq, google assistant, amazon alexa
Wi-Fi	yes
Power Consumption	4, 200
Fuel	electric
Voltage	240/208 volts
Current	40

Weight and Dimensions

Depth	29 3/32 inch
Height	36 1/2 inch
Width	30 inch
