-18-
P
ARTS OF THE RANGE HOOD
WIRING DIAGRAM
Models
V
olts
HZ
MAX Amps
LSHD3689BD/LSHD3089BD
LSHD3680ST/LSHD3080ST
HCED3615S/HCED3015S
HCED3615D/HCED3015D
120
60
Single Motor 4
REMARKS:CONDENSER 12.5+12.5uF 250VAC FIT AC120V 60Hz

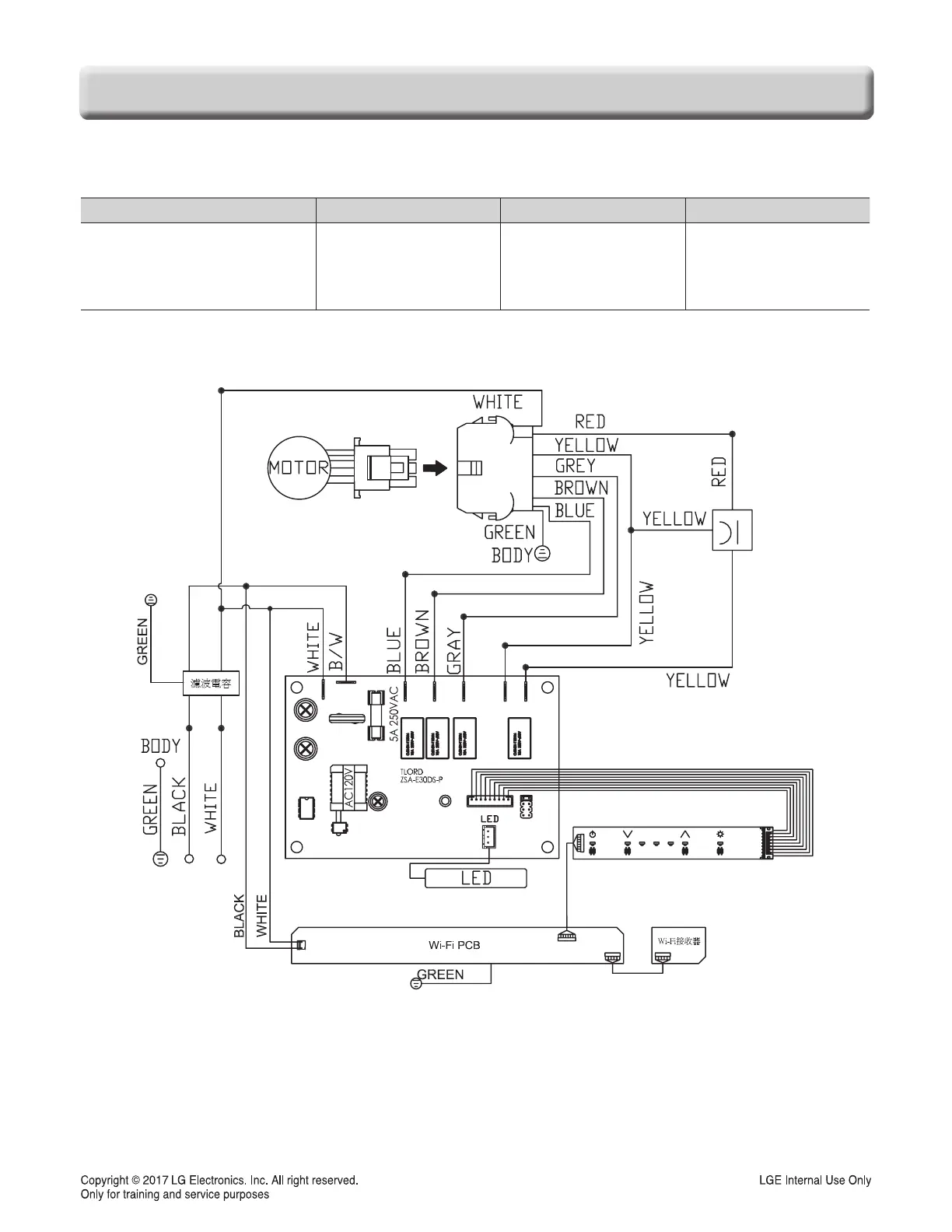

Wiring Diagram - Single Blower Models
17
19
Table of Contents
Table of Contents
2
General
4
General Safety Precautions
4
Product Specifications
7
General Specifications
7
All Models
7
Model Specific
7
Weight Specifications
7
Dimensions
8
Top Dimensions
8
Planning the Installation
9
Cabinet Layout
9
Warning Fire Hazard
11
Electrical
12
Parts of the Range Hood
14
Product Overview
15
Parts List
15
Touch Controls & Features
16
Power / Delay off Button
16
Speed Selection Button
16
Lights Button
17
Display Indicators
17
Wiring Diagram
18
Component Locations
19
Component Replacement
20
Blower Removal
20
Damper Removal
23
Duct Cover Bracket Removal
24
Filter Removal
26
LED Strip Removal
27
Light Panel Removal
28
Main PCB Removal
29
