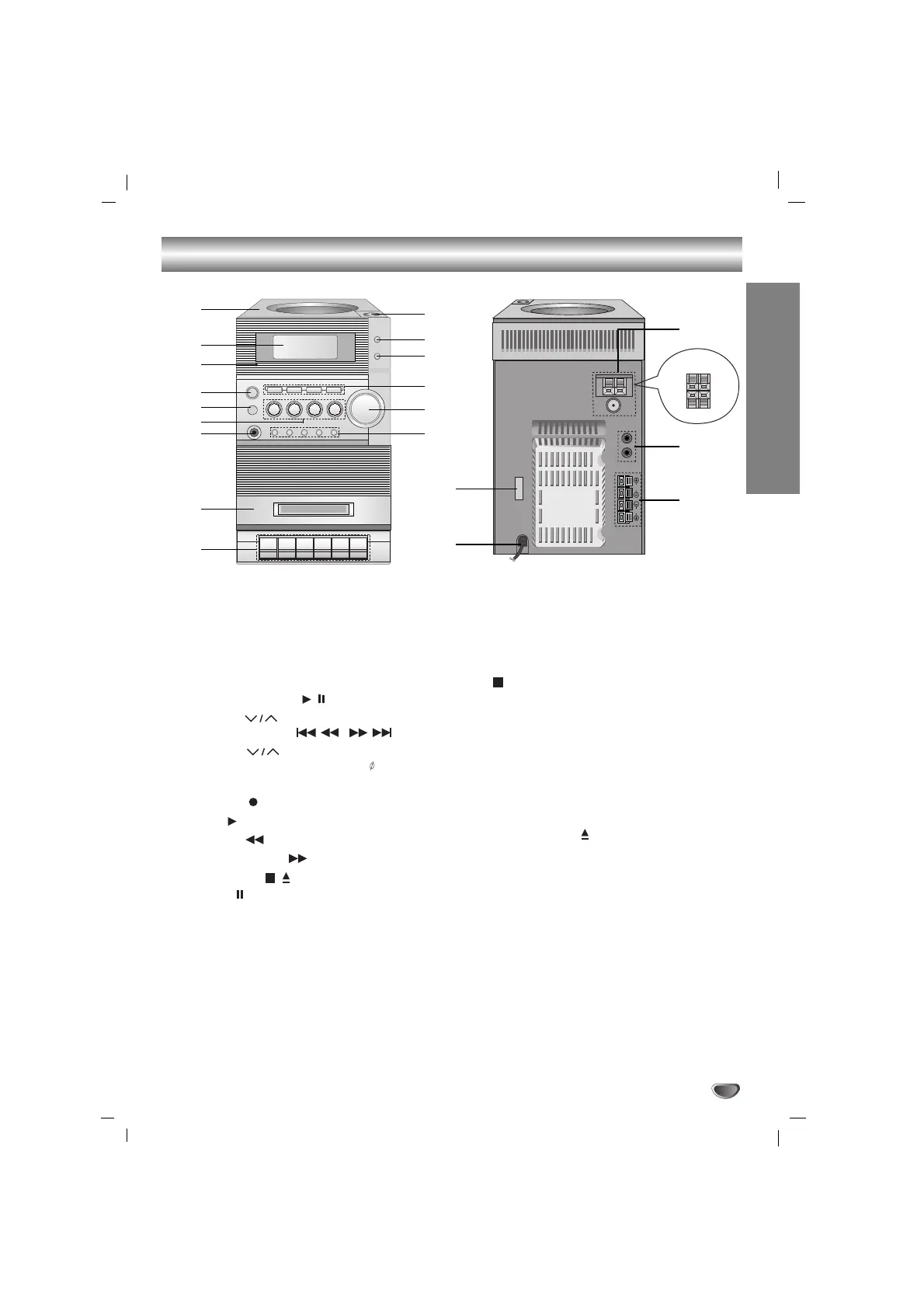

Front Panel/Rear Panel
INTRODUCTION
5
1. CD DOOR
2. DISPLAY
3. POWER indicator
4. POWER (STANDBY/ON) button
5. Remote Control Sensor
6. • CD PLAY/PAUSE (CD
/
) button
• TUNING ( ) buttons - TUNER
• CD SKIP/SEARCH (
/
) buttons
• PRESET ( ) buttons
7. HEADPHONE SOCKET (PHONES): 3.5mm
8. CASSETTE Holder
9. • RECORD ( ) button - TAPE
• PLAY ( ) button - TAPE
• REWIND ( ) button - TAPE
• FAST FORWARD ( ) button - TAPE
• STOP/EJECT(
/
) button - TAPE
• PAUSE ( ) button - TAPE
10. • CLOCK button
• TIMER button
• REPEAT button
• PROGRAM/MEMORY button
.• ()STOP/CLEAR button
11. VOLUME CONTROL KNOB
12. • FUNCTION SELECT (FUNCTION) button
(TUNER/ CD/ TAPE /AUX)
• TUNER/BAND button
• RDS (OPTIONAL)/SET button
• MODE/RIF button
13. EQUALIZER PATTERN (EQ) button
14. XDSS button
15. CD OPEN/CLOSE ( OPEN/CLOSE) button
16. VOLTAGE SELECT SWITCH : OPTIONAL
17. POWER CORD
18. SPEAKER TERMINAL
19. AUXILIARY INPUT SOCKET (AUX)
20. ANTENNA TERMINAL
R
L
OPTIONAL
1
15
14
13
12
11
9
8
7
4
3
2
5
10
20
19
18
17
16
6
