Owner's Manual 9

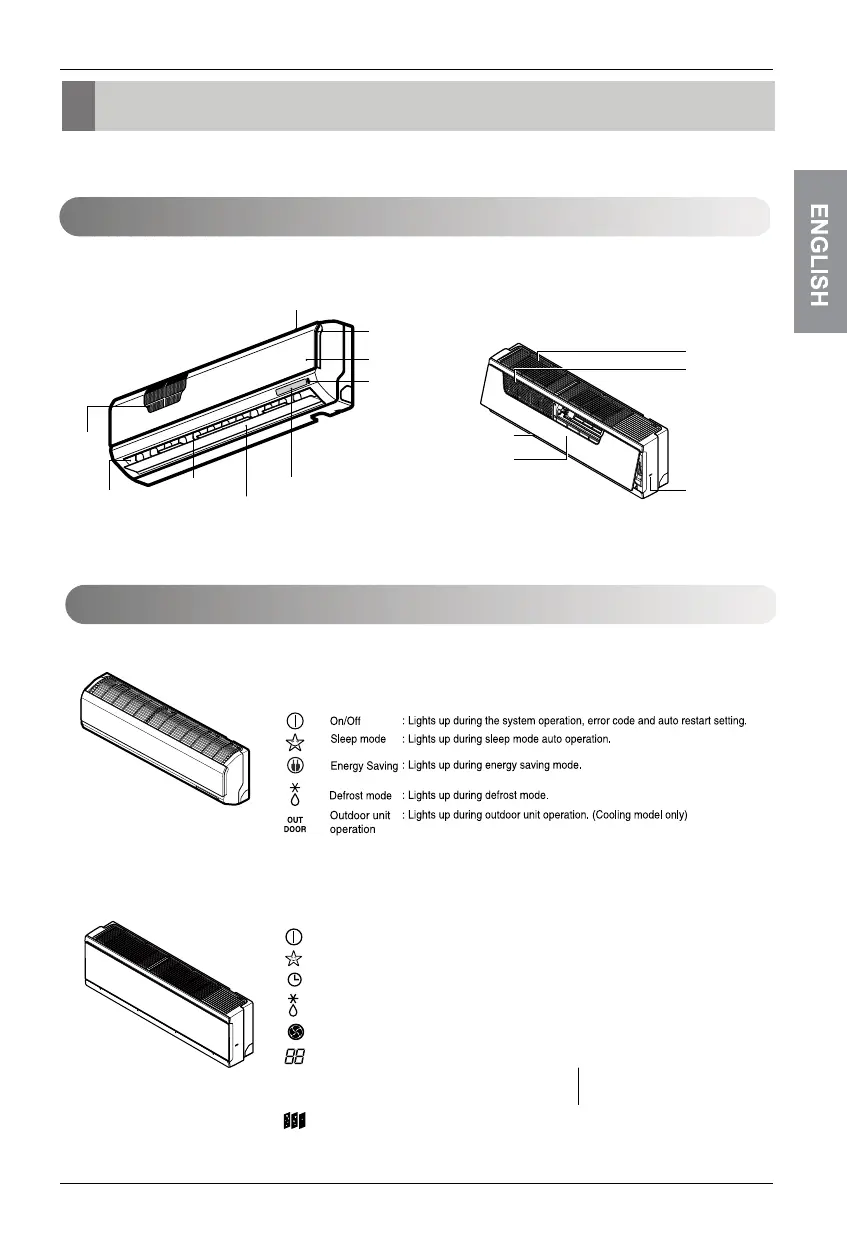

Here is a brief introduction of the indoor and outdoor units. Please see the information specific to your
indoor unit type.
Product Introduction
Product Introduction
Air inlet
Air filter
Air outlet
Front grille
ON/OFF button
Signal
receiver
Grille tab
Flap
(Horizontal blade)
Louvers
(Vertical blades)
Art Cool Mirror Type
Display panel LCD indicators
Front panel
Air discharge
ON/OFF button
Air inlet
Air filter
Wall Mounted Type
Display panel LED indicators
Wall Mounted Type
Art Cool mirror Type
Indoor Units
Operation Indication Lamps
Defrost mode
: Lights up during defrost mode. (Heat Pump model only)
: Lights up during the system operation.
Sleep Mode : Lights up during Sleep Mode Auto operation.
Timer : Lights up during Timer operation.
Outdoor unit
operation
: Lights up during outdoor unit operation.
(Cooling model only)
On/Off
: For cooling,dehumidification, heating, modes it display Destired temperature
• Cooling : 18~30°C • AI : Auto Operation
• Dehumidification : 18~30°C • Po : Jet Cool
• Heating : 16~30°C • Lo : Test Mode
PLASMA
: Indicate PLASMA purifier operation.
Desire temperature
indicator
(Heat Pump model only)
To Next Page
