LG M2250D Service Manual

LGE Internal Use OnlyCopyright LG Electronics. Inc. All right reserved.
Only for training and service purposes
- 14 -

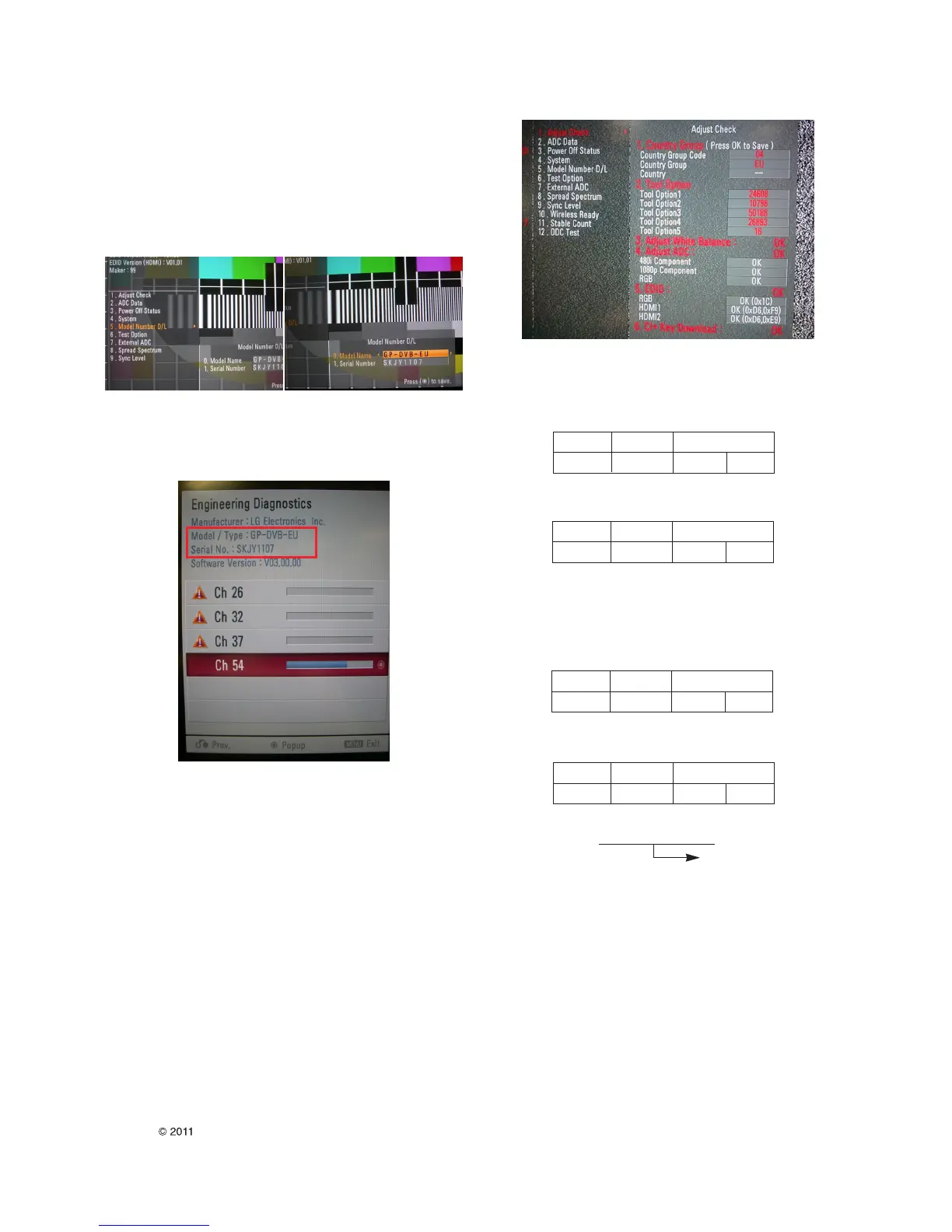

* Manual Download (Model Name and Serial Number)
If the TV set is downloaded by OTA or Service man, Sometimes
model name or serial number is initialized.(Not always)
There is impossible to download by bar code scan, so It need
Manual download.
1) Press the ‘instart’ key of ADJ remote controller.
2) Go to the menu ‘5.Model Number D/L’ like below photo.
3) Input the Factory model name(ex 42LD450-ZA) or Serial
number like photo.
4) Check the model name Instart menu -> Factory name
displayed (ex 42LD450-ZA)
5) Check the Diagnostics (DTV country only) -> Buyer model
displayed (ex 42LD450)
6. CI+ Key Download method
(1) Download Procedure
1) Press "Power on" button of a service remote control.
(Baud rate : 115200 bps)
2) Connect RS232-C Signal Cable.
3) Write CI+ Key through RS-232-C.
4) Check whether the key was downloaded or not at ‘In
Start’ menu. (Refer to below).
=> Check the Download to CI+ Key value in LGset.
1. check the method of CI+ Key value
a. check the method on Instart menu
b. check the method of RS232C Command
1) into the main ass’y mode (RS232 : aa 00 00)
2) check the key download for transmitted command
(RS232 : ci 00 10)
3) result value
- normally status for download : OKx
- abnormally status for download : NGx
2. Check the method of CI+ Key value (RS232)
1) into the main ass’y mode (RS232 : aa 00 00)
2) Check the method of CI+ key by command (RS232 :
ci 00 20)
3) Result value
i 01 OK 1d1852d21c1ed5dcx
7. Local Dimming Function Check
Step1) Turn on TV.
Step2) Press “P-only” key, entrance to power only mode and
Press “Exit” key
Step3) Press “Tilt” key, entrance to Local Dimming mode.
Step4) At the Local Dimming mode, module Edge Backlight
moving right to left Back light of module moving
Step5) confirm the Local Dimming mode
Step6) Press “Exit” key
CMD 1 CMD 2 Data 0
AA00
CMD 1 CMD 2 Data 0
CI10
CMD 1 CMD 2 Data 0
AA00
CMD 1 CMD 2 Data 0
CI20
CI+ key Value

LG M2250D Specifications

General

3D	No
Aspect ratio	16:9
Display diagonal	21.5 \
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	5000000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Audio input	Yes
USB hub version	2.0
DVI-I ports quantity	0
Annual energy consumption	89 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	61 W
Product color	Black
Market positioning	-
Panel mounting interface	100 x 100 mm

Weight and Dimensions

Depth (without stand)	59.5 mm
Width (without stand)	509.1 mm
Height (without stand)	403 mm
Weight (without stand)	2900 g
