Connecting a set-top box with a HDMI cable

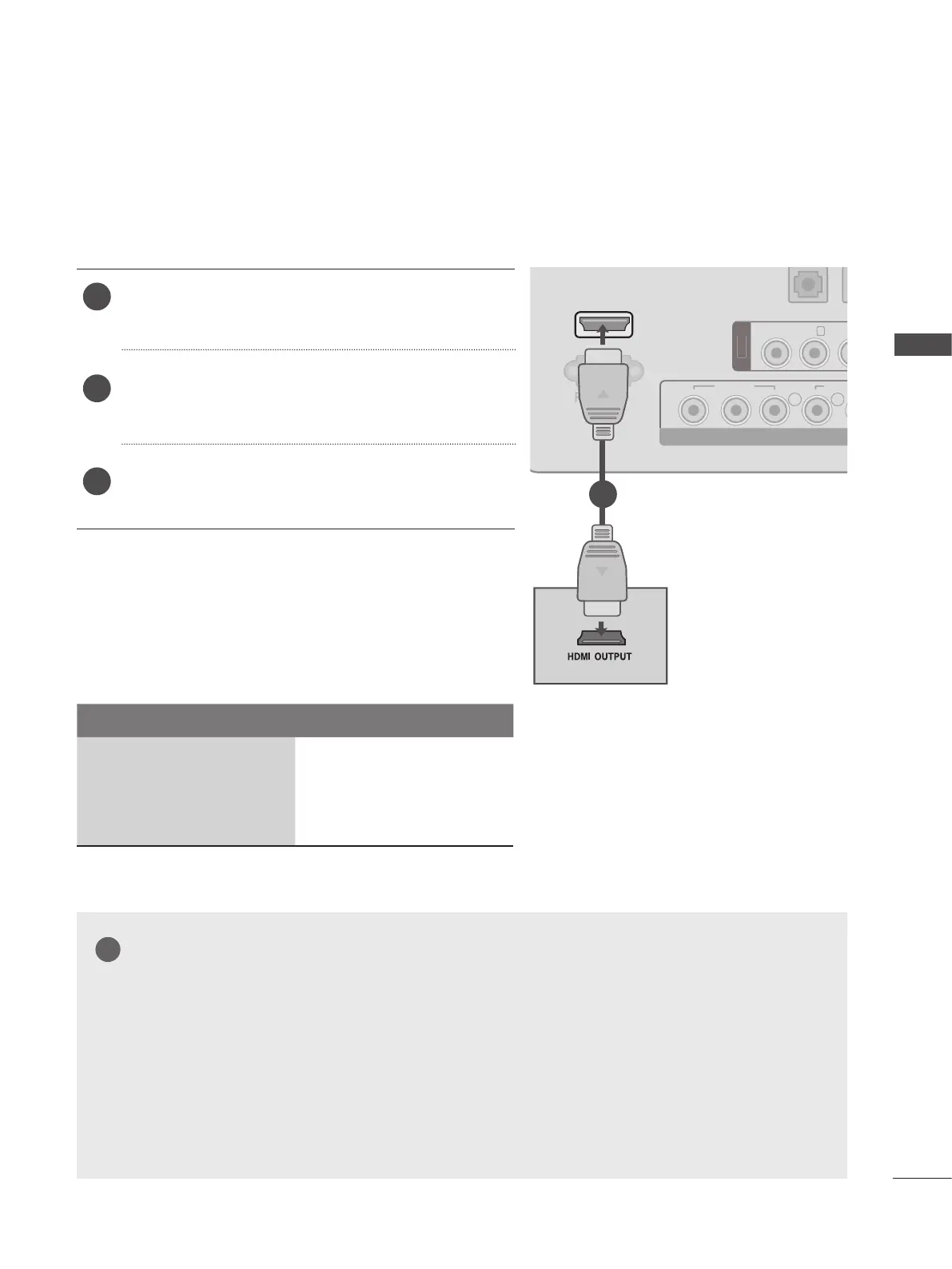

Connect the HDMI output of the digital set-top box
to the HDMI IN jack on the set.
Select HDMI input source using the INPUT button
on the remote control.
Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
1
2
3
NOTE
!
?
!
?
►Set can receive the video and audio signal simultaneously with using a HDMI cable.
►If the digital set-top box supports Auto HDMI function, the output resolution of the source device
will be automatically
set
to 1920 x 1080p.
►Check out the resolution setting of external device is 1920 X 1080P for getting best picture
quality.
►We recommend less than 10 m for HDMI cable.
►Check that your HDMI cable is High Speed HDMI Cable. If the HDMI cables are not High
Speed HDMI Cable, flickering or no screen display can result. Please use the High Speed
HDMI Cable.
