PREPARATION
BACK PANEL INFORMATION

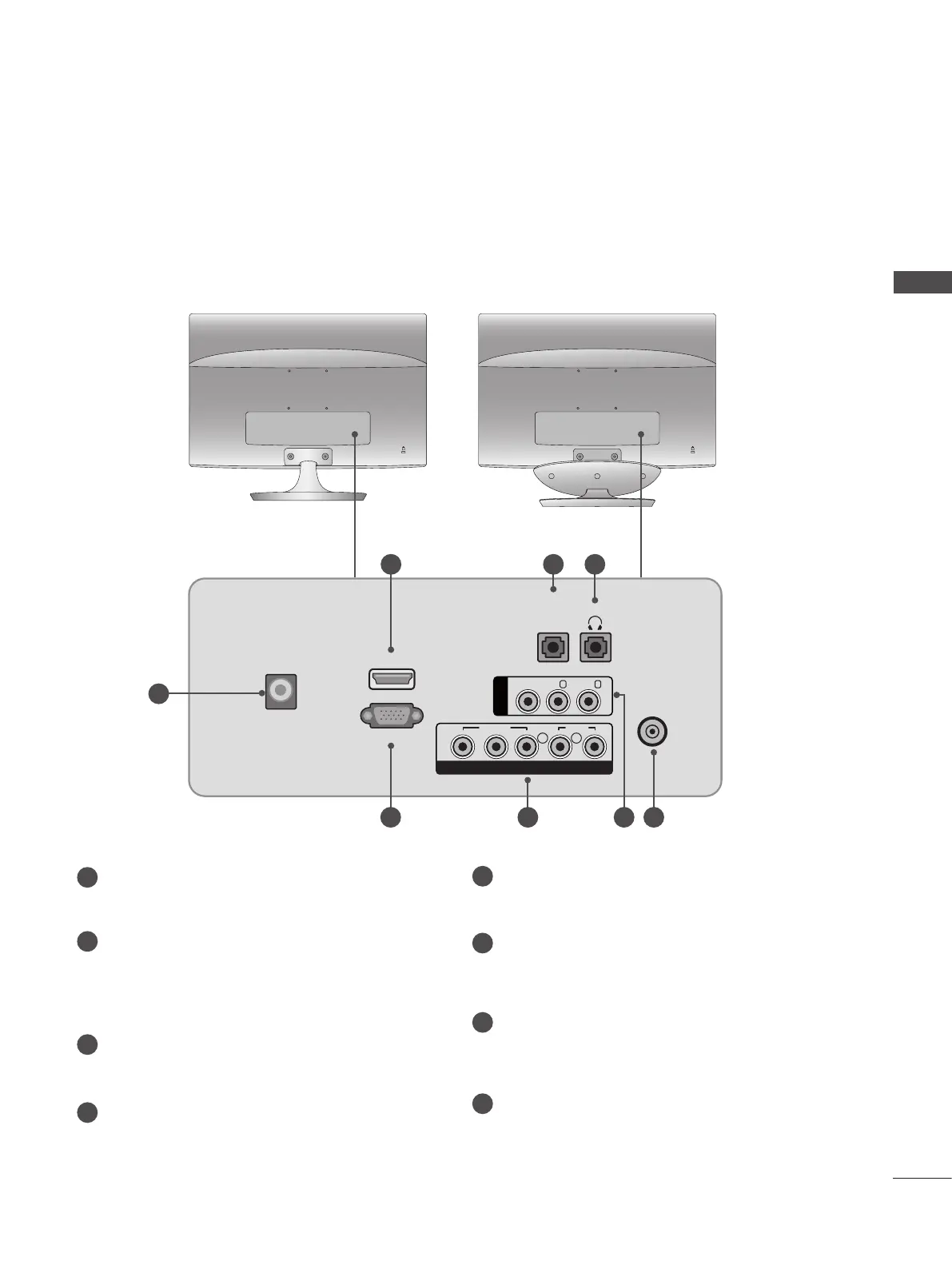

■ This is a simplified representation of the back panel. The image shown may be somewhat different
from your set.
DC ADAPTER PORT
Connect to the power jack.
HDMI INPUT
Connect a HDMI signal to HDMI IN.
Or DVI (VIDEO) signal to HDMI IN with DVI to
HDMI cable.
RGB AUDIO INPUT
Connect the audio from a PC.
HEADPHONE SOCKET
Plug the headphone into the headphone socket.
RGB INPUT (PC)
Connect the output from a PC.
COMPONENT INPUT
Connect a component video/audio device to
these jacks.
AV(AUDIO/VIDEO) INPUT
Connect audio/video output from an external
device to these jacks.
ANTENNA / CABLE INPUT
Connect over-the-air signals to this jack.
1
1
5
6
7
8
2
3
4
86
<M2280A/M2380A> <M2280AF/M2380AF>
2 3 4
5 7

LG M2380A Specifications

General

3D	No
Aspect ratio	16:9
Display diagonal	23 \
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	50000000:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
DVI-D ports quantity	0
RMS rated power	5 W
Number of speakers	2
Height adjustment	-
Panel mounting interface	75 x 75 mm
Power consumption (standby)	1 W
Power consumption (typical)	33 W
Product color	Black

Weight and Dimensions

Depth (with stand)	194 mm
Height (with stand)	416 mm
Weight (with stand)	4300 g
Depth (without stand)	58 mm
Width (without stand)	547 mm
Height (without stand)	350 mm
Weight (without stand)	4100 g
