LG M3201C User Manual

15
• Select Component 1
• Select Component 2
B
A
VIDEO
YP
B P R
L-AUDIO-R
COMPONENT IN
1
2

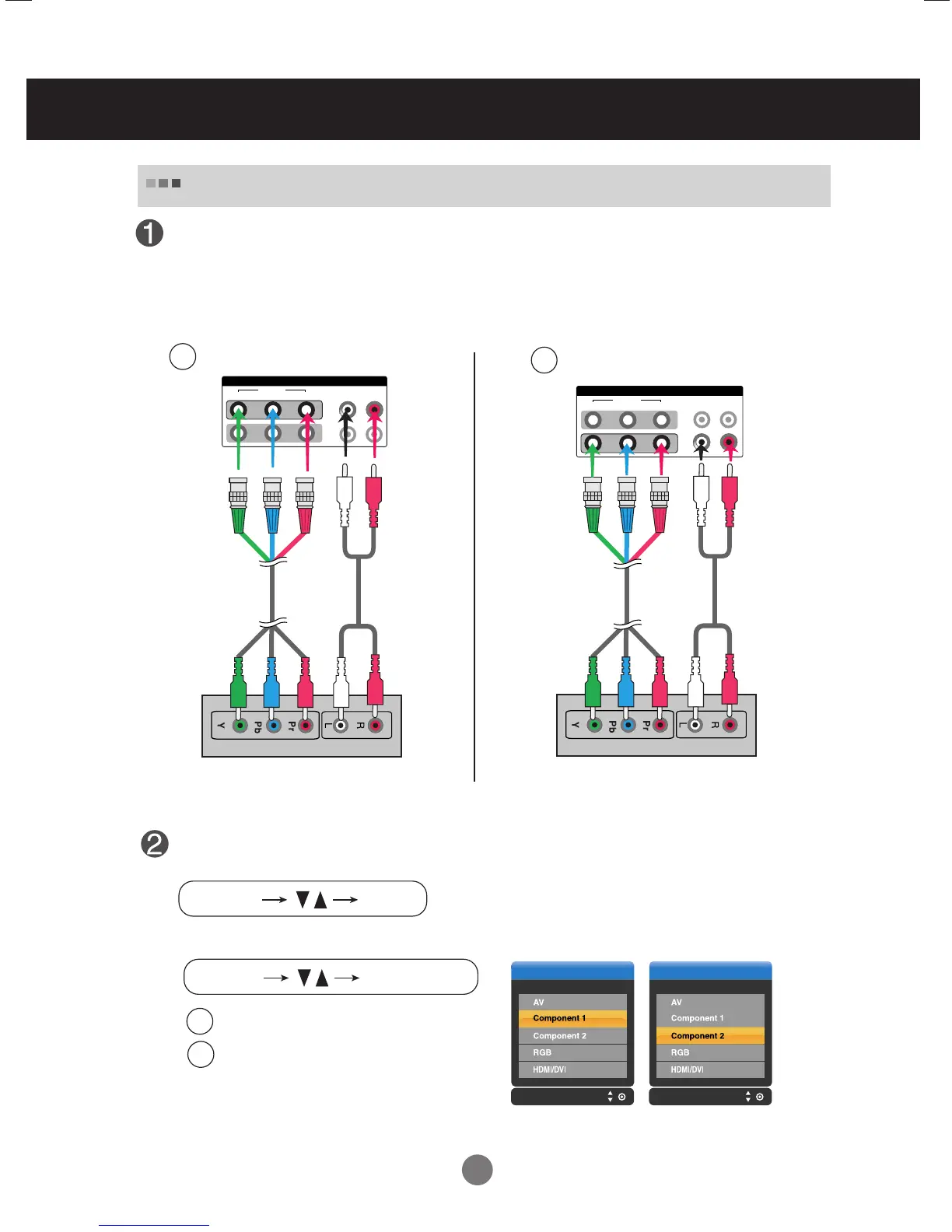

Connect the video/audio cable as shown in the below figure and then, connect the
power cord (See page 11).
•
Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
HDTV Receiver
Input Input
When watching HDTV/DVD(480p/576p/720p/1080i/480i/576i)
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the front side of the product.
INPUT SET
INPUT
AUTO/SET
Audio Cable
(not included)
VIDEO
YP
B P R
L-AUDIO-R
COMPONENT IN
1
2
Product
HDTV Receiver
B
A
BNC Cable
(not included)
Audio Cable
(not included)
Connecting to External Devices

LG M3201C Specifications

Panel Specifications

LCD Panel Type	32” Widescreen TFT LCD
Display Area	31.5” diagonal
Aspect Ratio	16:9
Native Resolution	1366 x 768
Brightness	500 cd/m2
Contrast Ratio	1600:1
Response Time	8 ms
Viewing Angle	178 / 178

Video Specifications

Max Input Resolution	768p
H-Scanning Frequency	RGB : 30 - 83 kHz; HDMI/DVI : 30 - 72 kHz
V-Scanning Frequency	56 - 85 Hz

Power Specifications

Rated Voltage	AC 100-240V~ 50/60Hz 1.5A
On Mode Power	145W
DPM Off Power	1W
Off Mode Power	1W

Environmental Conditions

Operational Temperature	50°F ~ 95°F, 10°C ~ 35°C
Operational Humidity	10% ~ 80%
Storage Temperature	-4°F ~ 140°F, -20°C ~ 60°C
Storage Humidity	5% ~ 95%

Cabinet Specifications

Monitor Dimensions (W x H x D)	31.62” x 19.41” x 3.94”
Weight (Head Only)	46.52 lbs
Carton Dimensions (W x H x D)	36.11” x 27.72” x 13.07”
Packed Weight	52.91 lbs

Audio Features

Max Audio Output	20Watt (10W x 2EA)
Audio Built-in AMP	Yes
Audio Features	Equalizer, Auto Volume Limiter, Balance, Speaker on/off
