LG M3201C User Manual

16
RGB IN
RGB OUT
HDMI/DVI IN
AUDIO
(RGB/DVI)
RGB IN
RGB OUT
HDMI/DVI IN
AUDIO
(RGB/DVI)

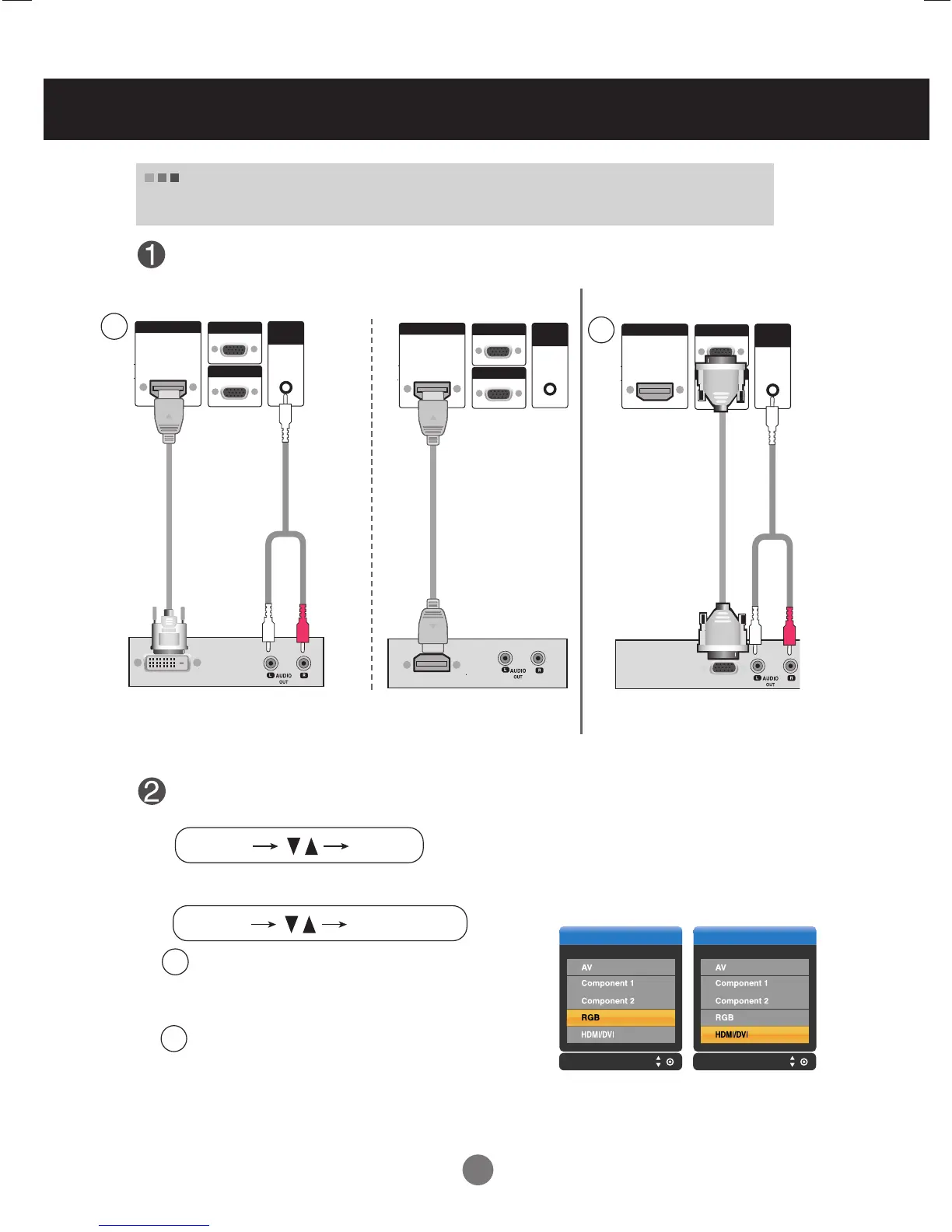

Connect the video/audio cable as shown in the below figure and then connect the
power cord (See page 11).
RCA-PC
Audio Cable
Product
VCR/DVD/Set-top Box
HDMI to DVI
Signal Cable
(not included)
Input Input
When watching HDMI/DVI/RGB from the VCR/DVD/Set-top Box
(480p/576p/720p/1080i)
VCR/DVD/Set-top Box
Product
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the INPUT button at the front side of the product.
INPUT SET
INPUT
AUTO/SET
HDMI Signal Cable
(not included)
Connecting to External Devices
RGB IN
RGB OUT
HDMI/DVI IN
AUDIO
(RGB/DVI)
VCR/DVD/Set-top Box
Product
D-Sub Signal
Cable
RCA-PC
Audio Cable
When connecting with a
HDMI to DVI signal input cable.
When connecting with a
HDMI
signal input cable.
• Select HDMI/DVI
When connecting with a D-Sub signal input cable.
• Select RGB
B
A
A
B

LG M3201C Specifications

Panel Specifications

LCD Panel Type	32” Widescreen TFT LCD
Display Area	31.5” diagonal
Aspect Ratio	16:9
Native Resolution	1366 x 768
Brightness	500 cd/m2
Contrast Ratio	1600:1
Response Time	8 ms
Viewing Angle	178 / 178

Video Specifications

Max Input Resolution	768p
H-Scanning Frequency	RGB : 30 - 83 kHz; HDMI/DVI : 30 - 72 kHz
V-Scanning Frequency	56 - 85 Hz

Power Specifications

Rated Voltage	AC 100-240V~ 50/60Hz 1.5A
On Mode Power	145W
DPM Off Power	1W
Off Mode Power	1W

Environmental Conditions

Operational Temperature	50°F ~ 95°F, 10°C ~ 35°C
Operational Humidity	10% ~ 80%
Storage Temperature	-4°F ~ 140°F, -20°C ~ 60°C
Storage Humidity	5% ~ 95%

Cabinet Specifications

Monitor Dimensions (W x H x D)	31.62” x 19.41” x 3.94”
Weight (Head Only)	46.52 lbs
Carton Dimensions (W x H x D)	36.11” x 27.72” x 13.07”
Packed Weight	52.91 lbs

Audio Features

Max Audio Output	20Watt (10W x 2EA)
Audio Built-in AMP	Yes
Audio Features	Equalizer, Auto Volume Limiter, Balance, Speaker on/off
