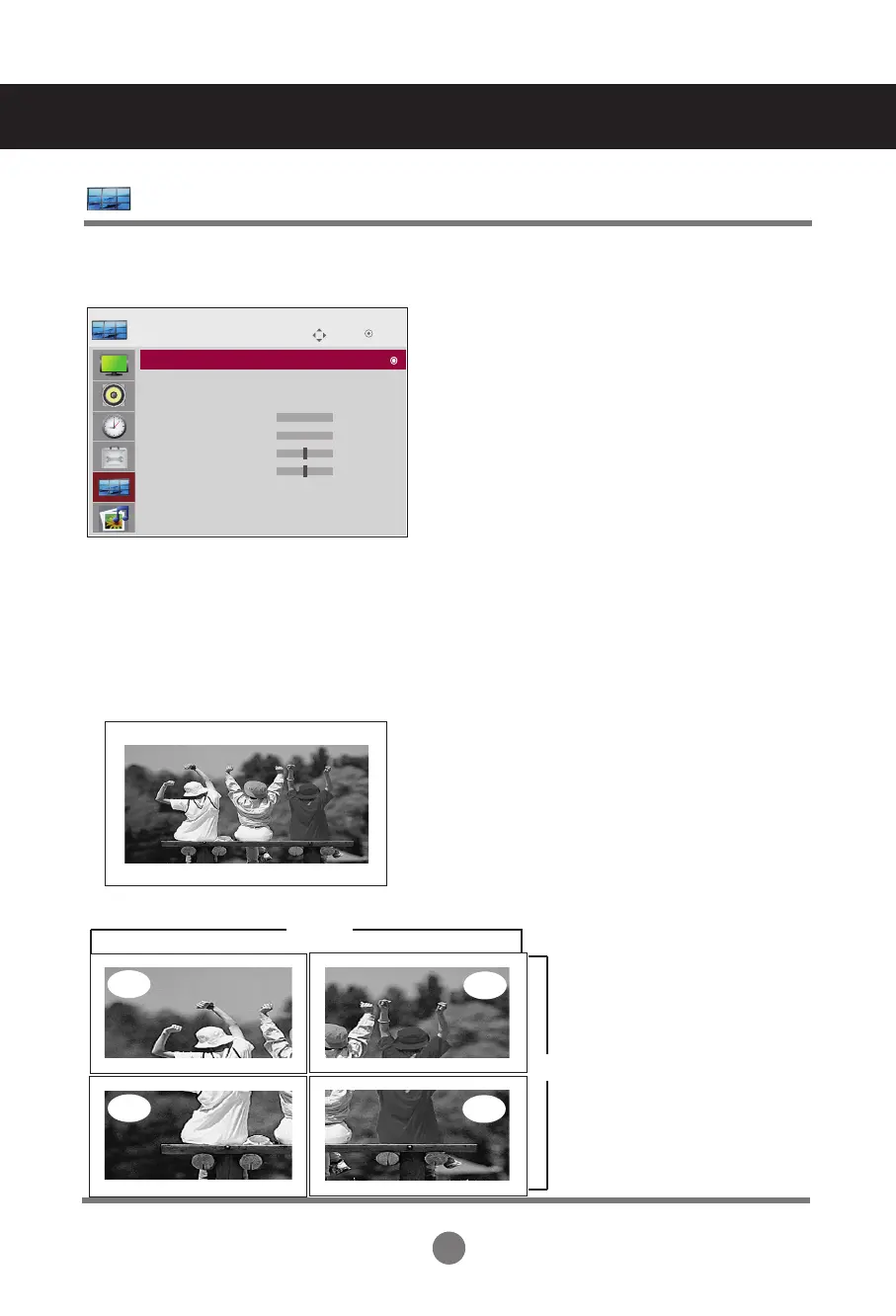

Tile mode and choose Tile alignment and set the ID of the current product to set location.
Only after pressing the SET button the adjustments made to the settings will be saved.
- Must be displayed with various other
products.
- Must be in a function that can be connected
to RS-232C or RGB Out.
- It is used to enlarge the screen and also used
with several products to view screen.
Tile Mode
- Tile mode : column x row ( c = 1, 2, 3, 4, 5 r = 1, 2, 3, 4, 5 )
- 5 x 5 available.
- Configuration of an integration screen is also available as well as configuration of One by one Display.
- Tile mode (product 1 ~ 4) : c(2) x r(2)
Adjusts the tile options.
User Menus
ID1
ID
ID
ID4
column
row
3
2
Move
TILE
OK
Tile Mode : Off
Tile ID : 0
Natural Mode : Off
H Size : 0
V Size : 0
H Position : 0
V Position : 0
Reset
Tile Mode : 2x2
