LG M3704C

Controlling Multiple Set
RS-232C
A1A1
A1

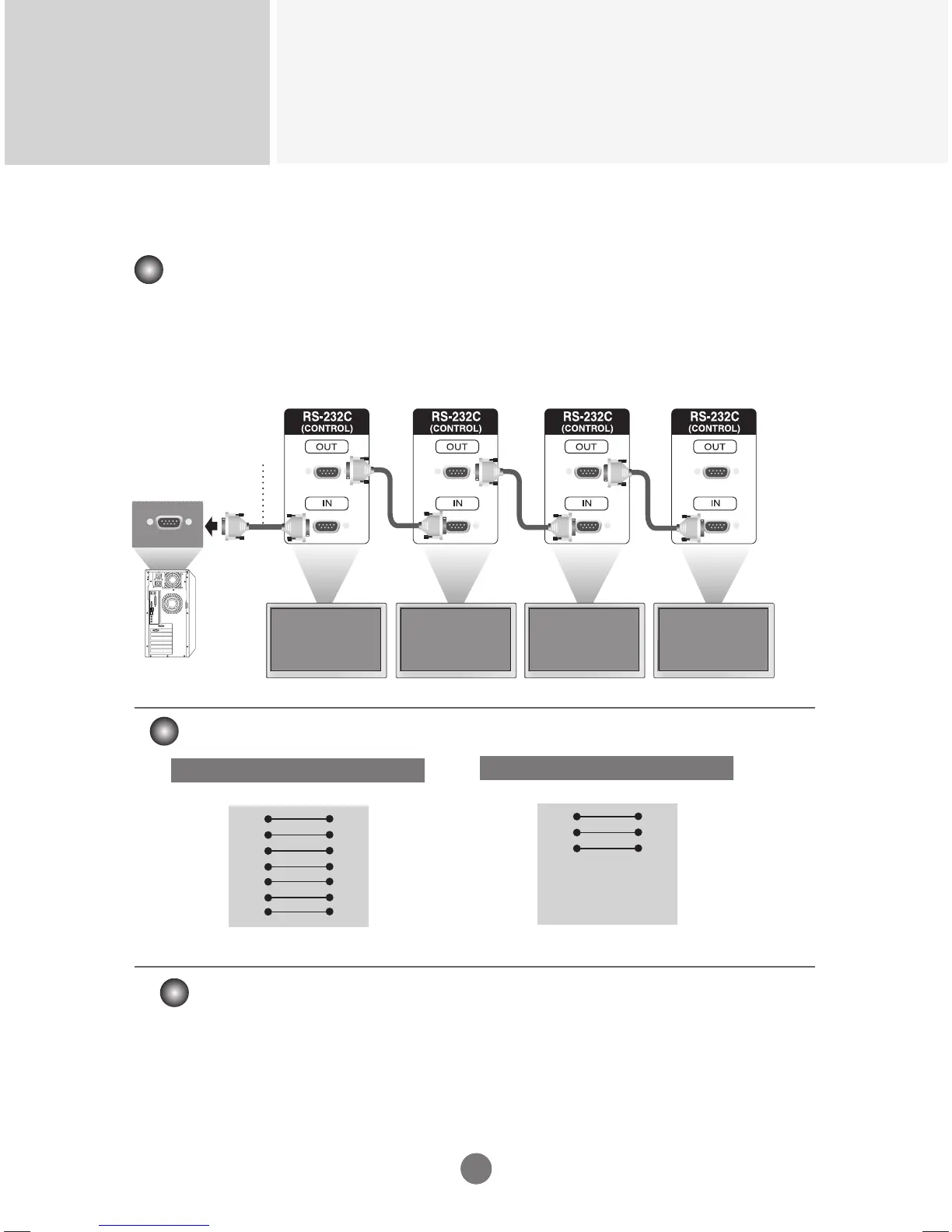

Connecting the cable
Connect the RS-232C cable as shown in the picture.
You need to purchase a cable to connect the RS-232C socket as it is not provided as the
accessory.
The RS-232C protocol is used for communication between the PC and product. You can
turn the product on/off, select an input source or adjust the OSD menu from your PC.
Use this method to connect several products to a single PC. You can control several products at a
time by connecting them to a single PC.
If the [Set ID] menu in [Option] is set to OFF, the monitor ID value should be set between 1 and 99.
RS-232C Cable
(not included)
monitor 1
PC
monitor 2
monitor 3 monitor 4
7-Wire Configurations (Standard RS-232C cable)
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXDRXD
GND
DSR
DTR
CTS
RTS
PC Monitor
2
3
5
4
6
7
8
3
2
5
6
4
8
7
D-Sub 9 D-Sub 9
(Female) (Female)
3-Wire Configurations (Not Standard)
RXD
TXD
GND
DTR
DSR
RTS
CTS
TXDRXD
GND
DTR
DSR
RTS
CTS
PC Monitor
2
3
5
4
6
7
8
3
2
5
6
4
7
8
D-Sub 9 D-Sub 9
(Female) (Female)
► Baud Rate : 9600 buad Rate (UART)
► Data Length : 8 bit
► Parity Bit : None
► Stop Bit : 1bit
► Flow Control : None
► Communication Code : ASCII code
► Use a crossed (reverse) cable
Communication Parameter
RS-232C Configurations
