::::::::::::::,nMort,tots

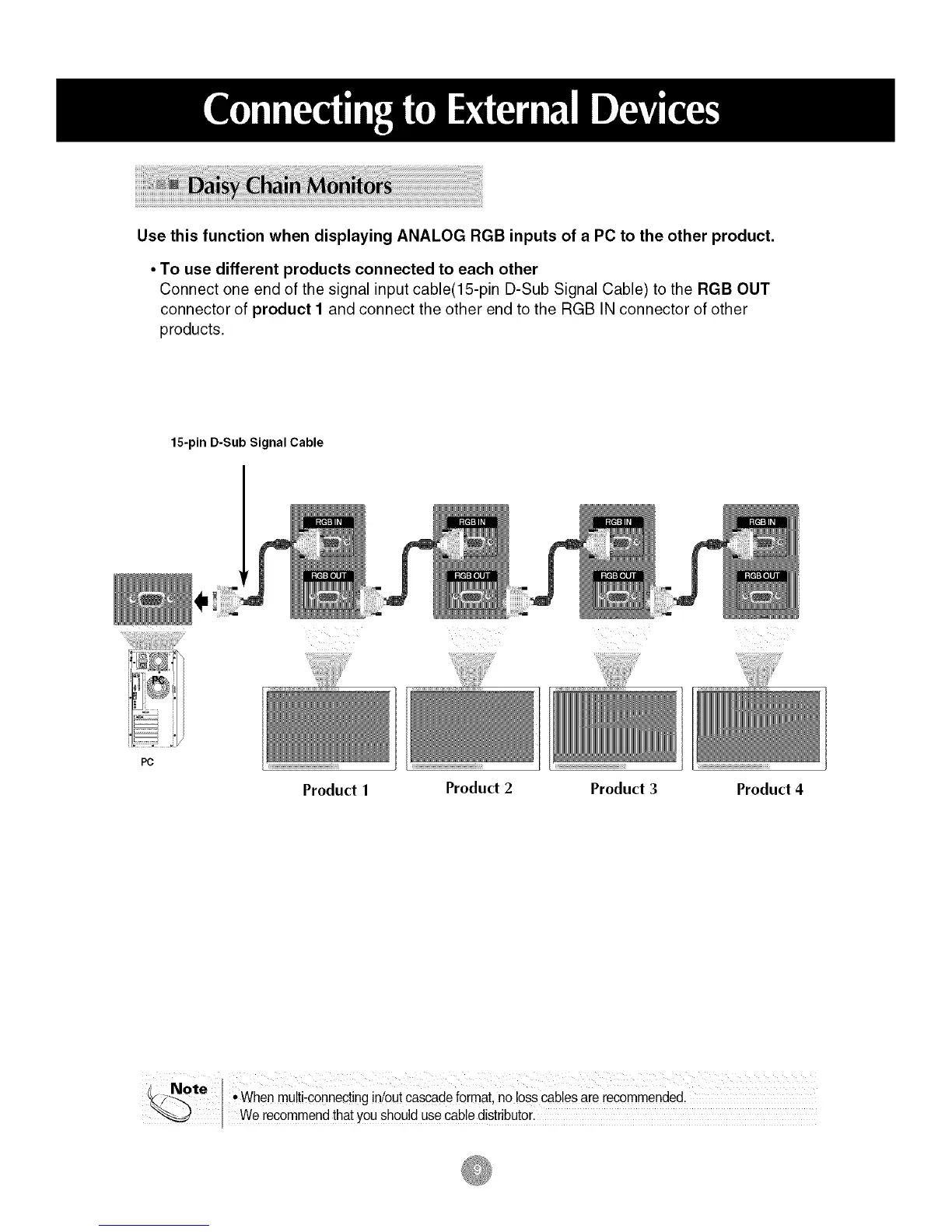

Use this function when displaying ANALOG RGB inputs of a PC to the other product.
• To use different products connected to each other
Connect one end of the signal inputcable(15-pin D-Sub Signal Gable) to the RGB OUT
connector of product I and connect the other end to the RGB IN connector of other
products.
15-pin D-Sub Signal Cable
PC
i i i i i
Product 1 Product 2 Product 3 Product 4
i¸_¸_Note ii i i :
•Whenmult!-cennectlr_g!n/outcascadeformat,no!osscablesalerecommendedl
"-_--_-' we rec0mmendthatyoushouldusecabledistributor........................................................................................................
