LG MCD23 - Servo Circuit Diagram

3-23 3-24
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2008.02.13
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST

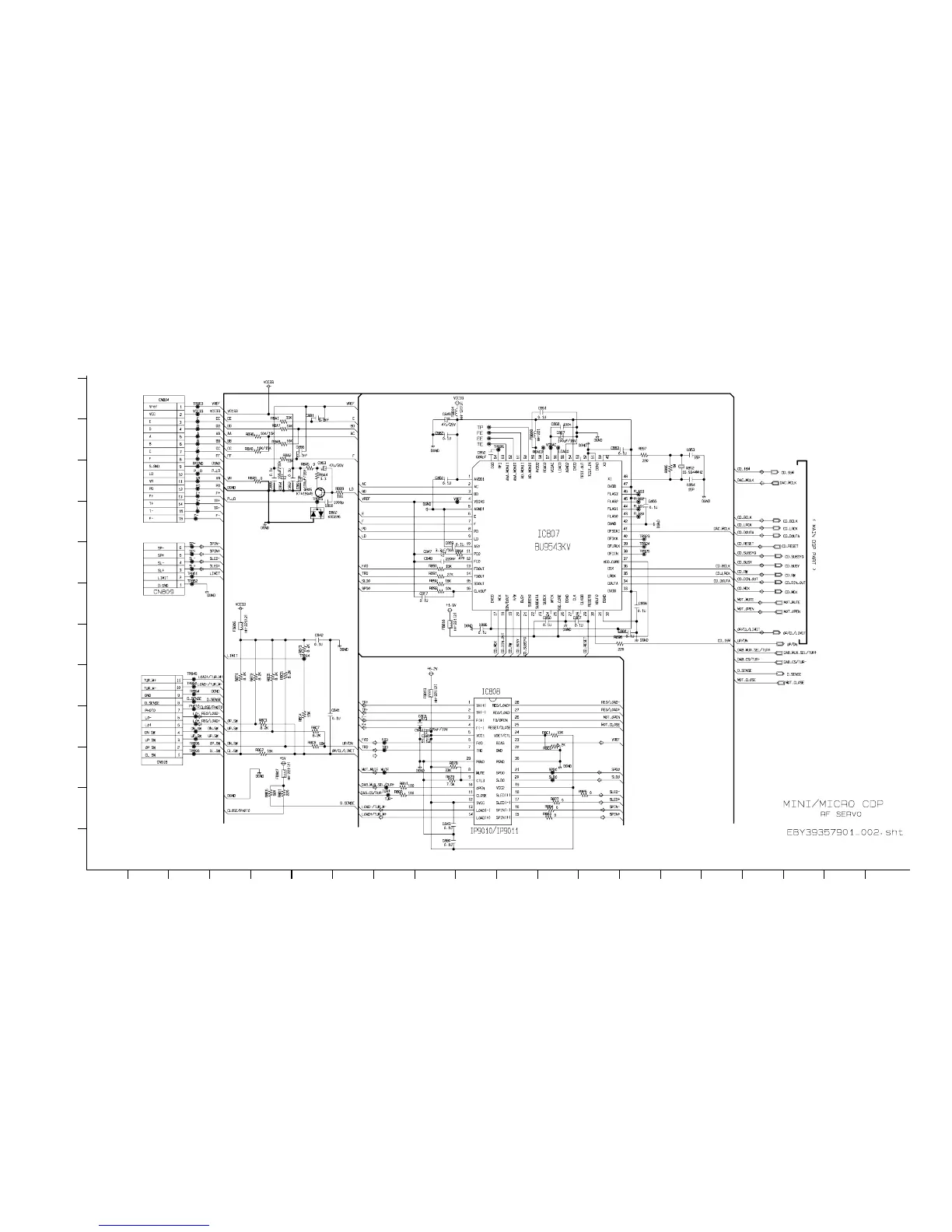

3. SERVO CIRCUIT DIAGRAM
