SECTION
4. DISASSEMBLY AND ASSEMBLY OF MECHANISM DECK
4-1. Disassembly of Mechanism Deck.

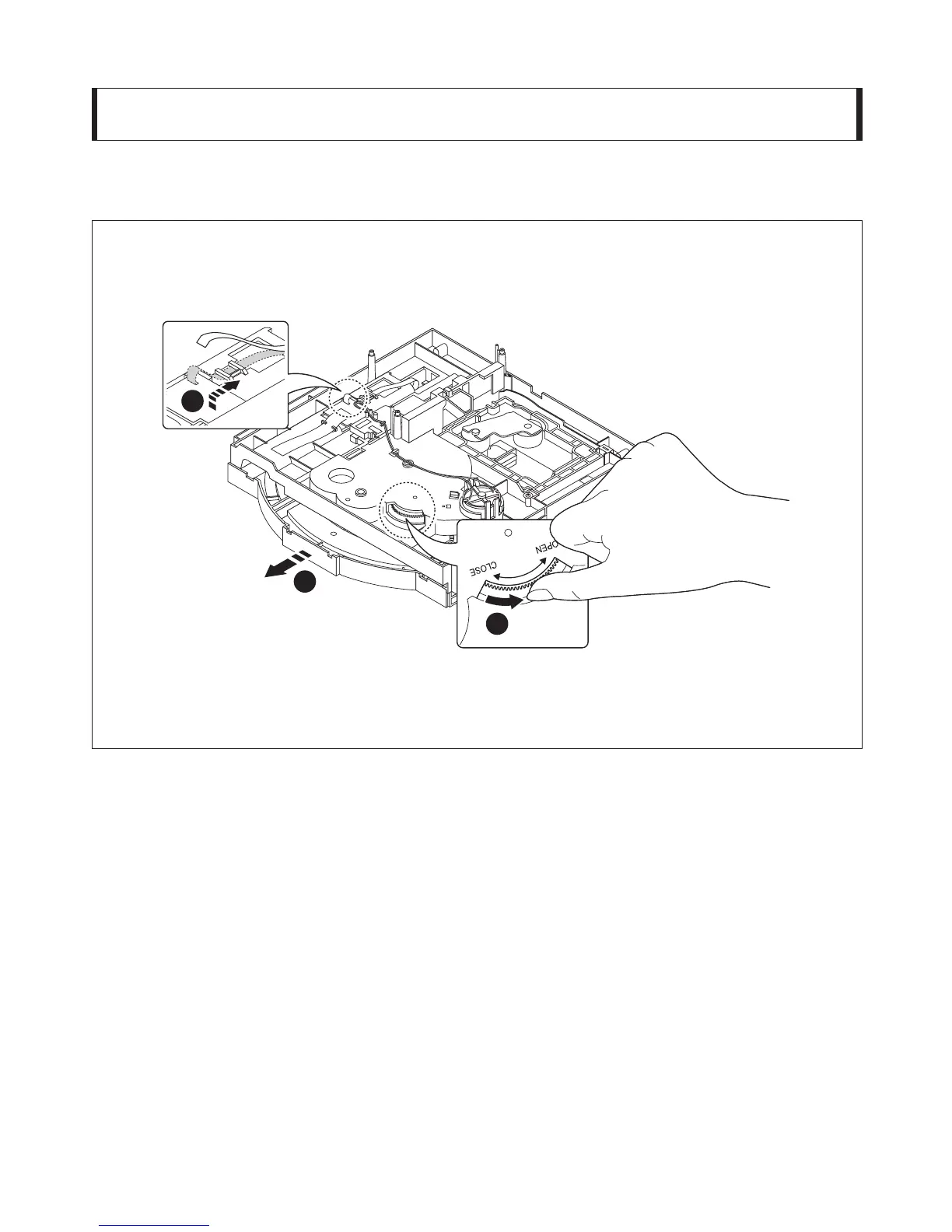

[Figure A-1]
1) Separate the Loading FFC.
2) Moving the Gear Loading toward the arrow direction(open).
3) Open the Tray Loading.
3
1
2
