LG MCD23 - Adc Circuit Diagram

3-27 3-28
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
2008.02.13
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST

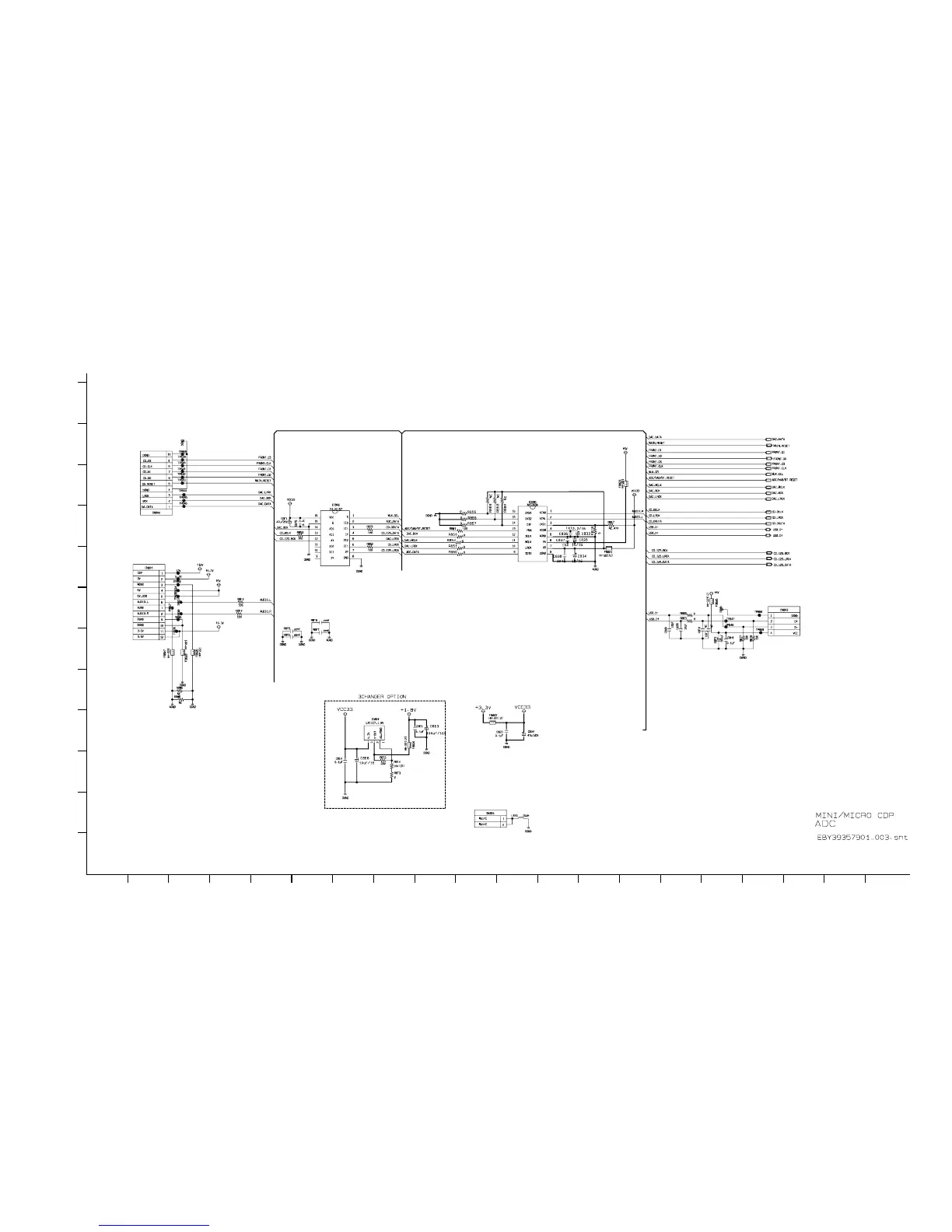

5. ADC CIRCUIT DIAGRAM
