LG MCV903 - AUDIO PATH

4-4
Copyright © 2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
MCK
BCK
LRCK
DATA
AUDIO_L
AUDIO_R

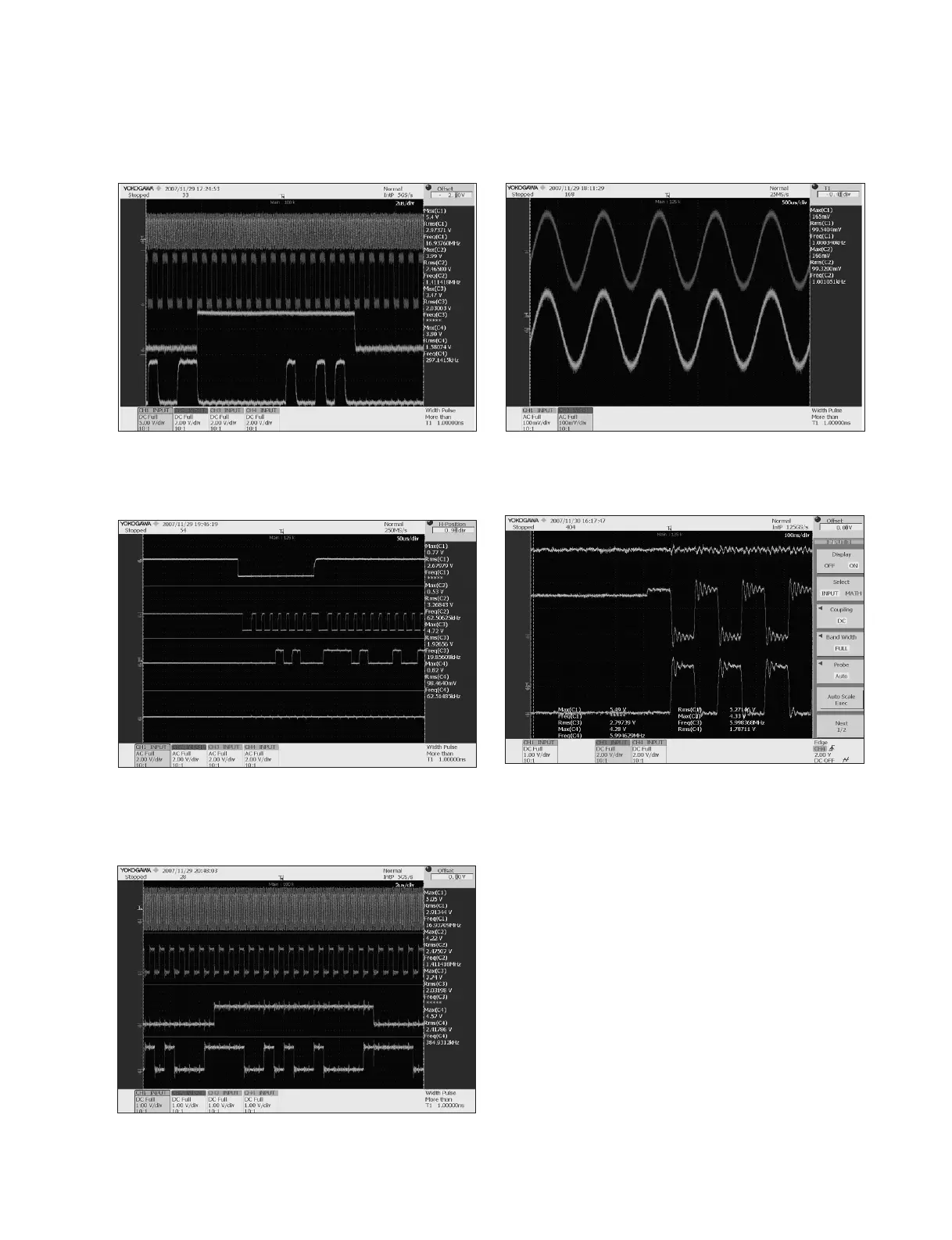

3. AUDIO PATH
DAC_ I2S
IC807 PIN38,39,40,41
AUDIO_ L/ R
CE
CLK
DI
DO
4. TUNER
USB_5V
D+
D-
MCK
LRCK
BCK
DATA
5. USB
6. ADC
USB D+/ D-
CN803 PIN2,3,4
ADC I2S
IC805 PIN11,12,10,9
TUNER SPI
TUN800 PIN5,7,8,9
